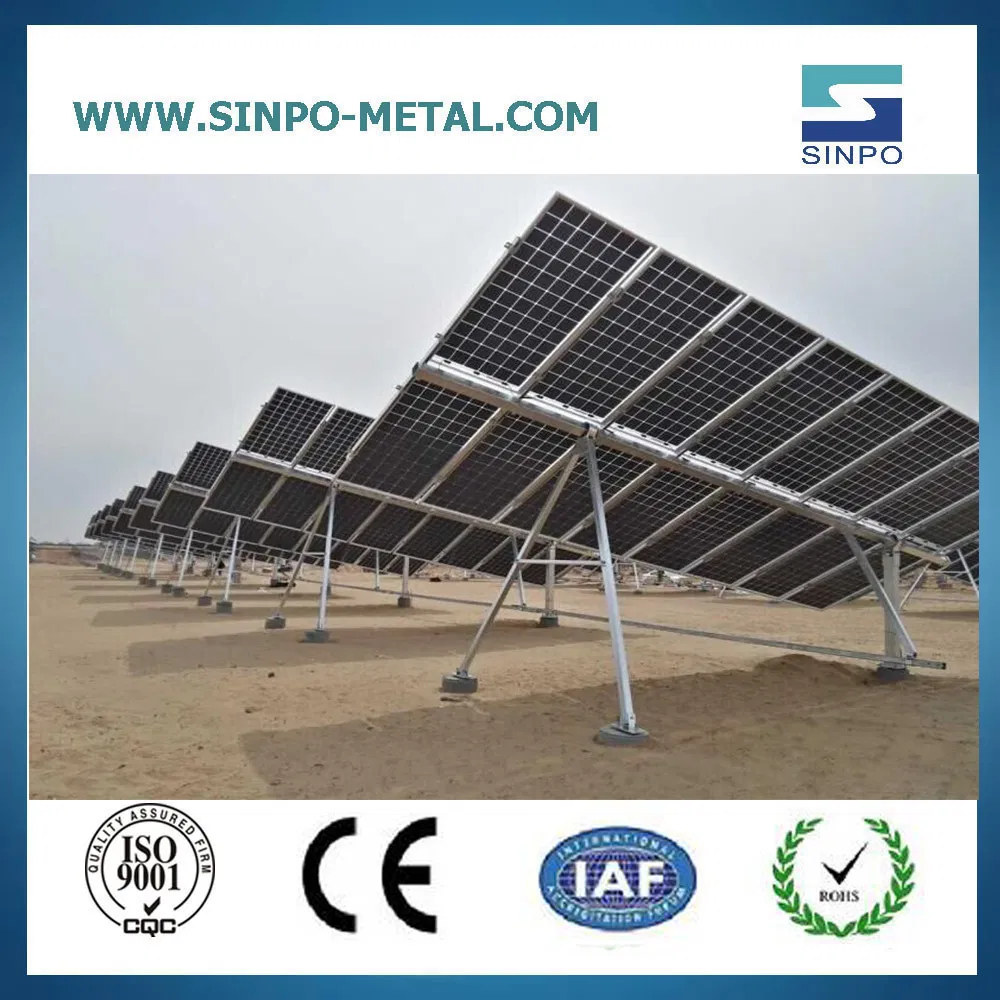

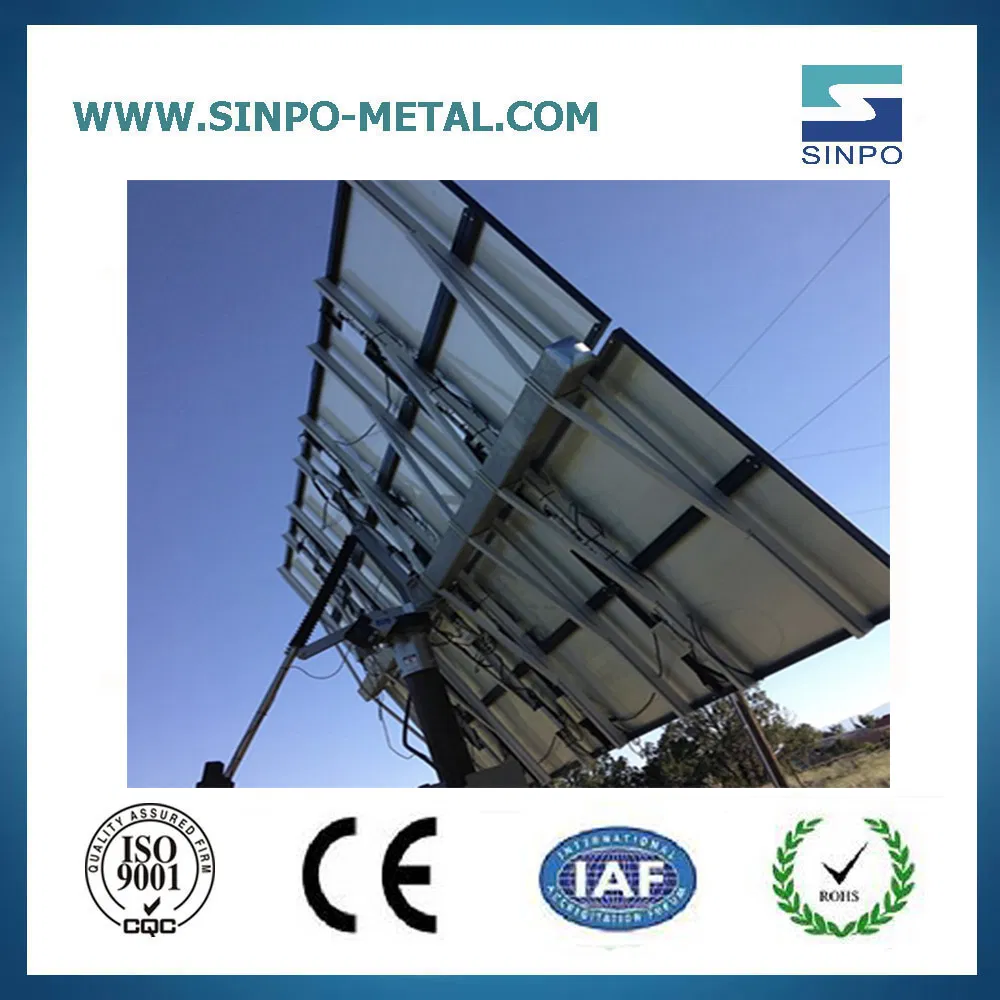

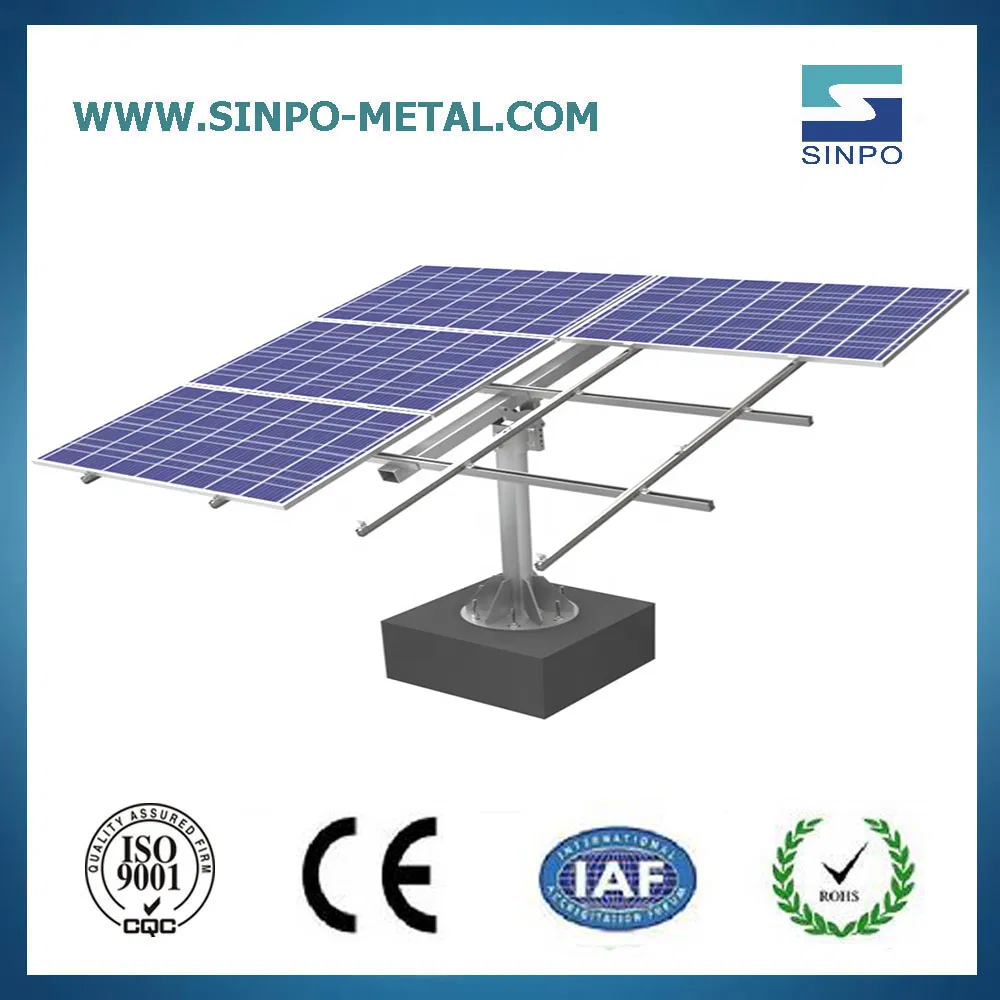

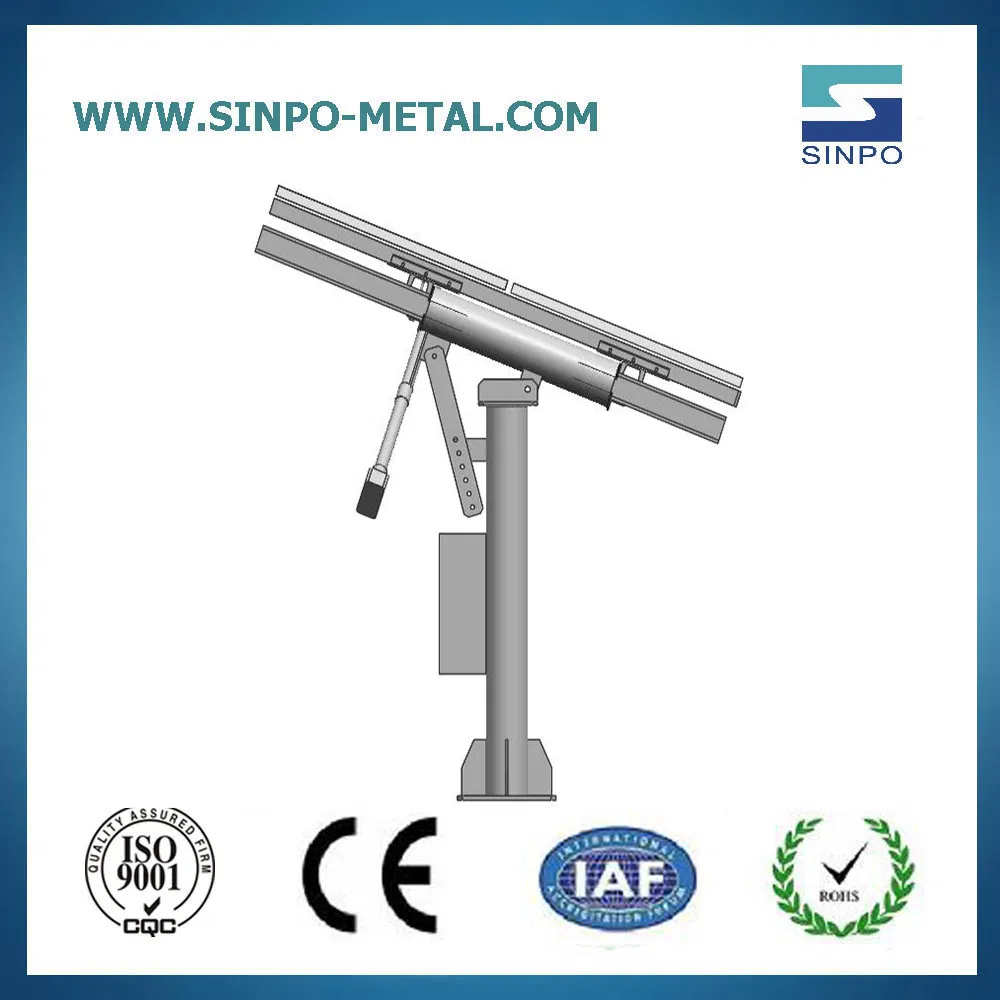

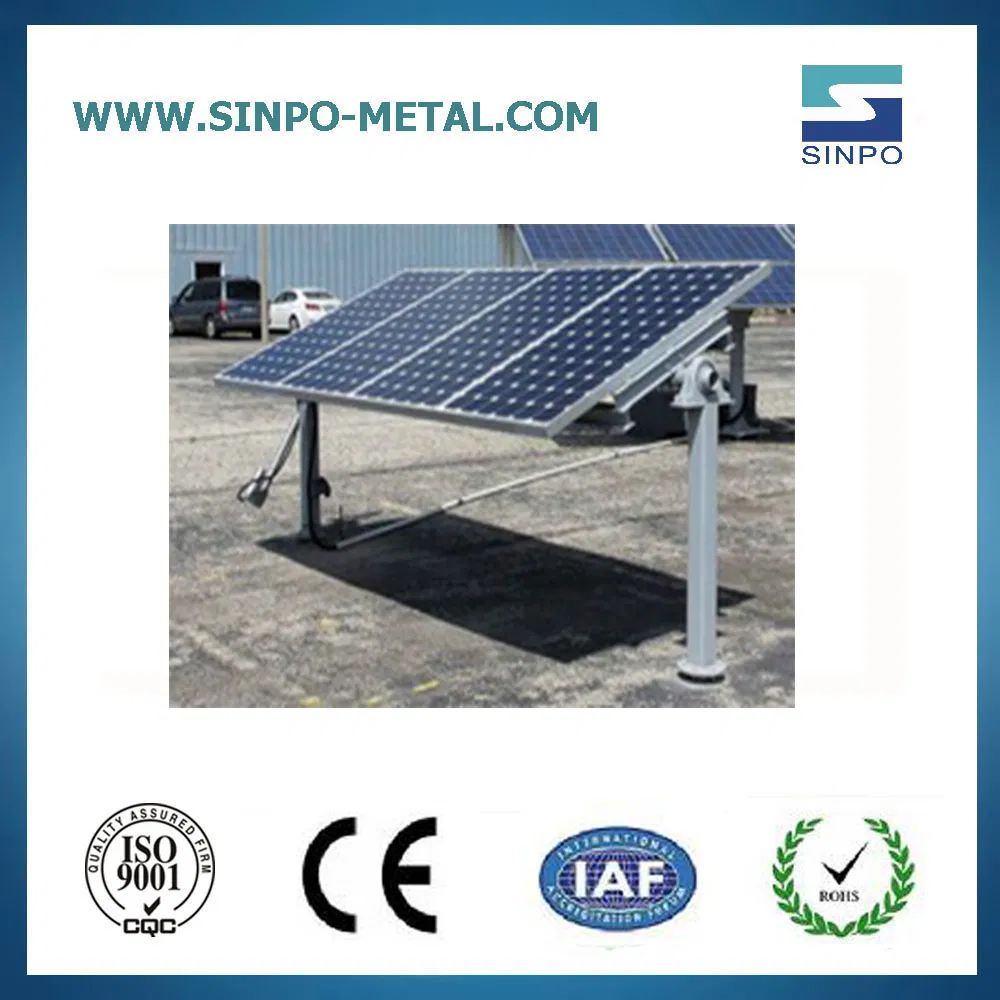

Tilted Solar Single Axis Tracker Solar Tracking System
Tilted Solar Single Axis Tracker Solar Tracking System
Tilted Solar Single Axis Tracker Solar Tracking System
Tilted Solar Single Axis Tracker Solar Tracking System
Tilted Solar Single Axis Tracker Solar Tracking System
1 / 5
Tilted Solar Single Axis Tracker Solar Tracking System
Tilted Solar Single Axis Tracker Solar Tracking System
Tilted Solar Single Axis Tracker Solar Tracking System
Tilted Solar Single Axis Tracker Solar Tracking System
Tilted Solar Single Axis Tracker Solar Tracking System

Tilted Solar Single Axis Tracker Solar Tracking System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Technical Specifications
Application:
Home, Industrial, Commercial
Specification:
Normal, Aluminum Alloy
Transport Package:
Shrinking Film, Carton, Wooden Pallet
Origin:
China
HS Code:
76109000
Production Capacity:
50000ton/Year
Package Size:
45.50cm * 26.50cm * 37.50cm
Gross Weight:
23.600kg
Solar Tracker Mounting Modules

Advanced Photovoltaic Solar Panel Solutions

Core Advantages
✓Easy, fast and cost-effective installation.
✓Flexible post spacing withstands different wind & snow loads.
✓High quality galvanized steel, Aluminum or SUS 304.
✓Highly corrosion resistant surface treatment.
✓Full components including screws and nuts provided.
✓Mechanical calculation and reliability tested.
✓12-25 years system and structural guarantee.
Product Parameters
TypeAnodized Aluminum Alloy Brackets
MaterialAluminum 6063-T5 / 6005-T5
Survival Wind Speed< 60m/s
Design Snow loadUp to 1.4KN/ Square meters
Solar panel typeFramed or Frameless
Panel OrientationTransverse or vertical
Design StandardCE; ISO9001; SGS
Quality warranty12-25 years
DurationMore than 20 years

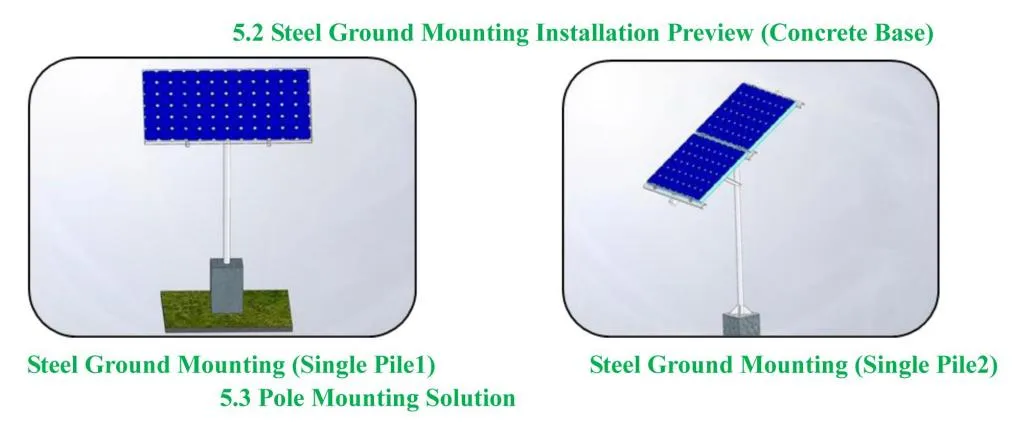

Mounting Solutions
Solar Tracking System

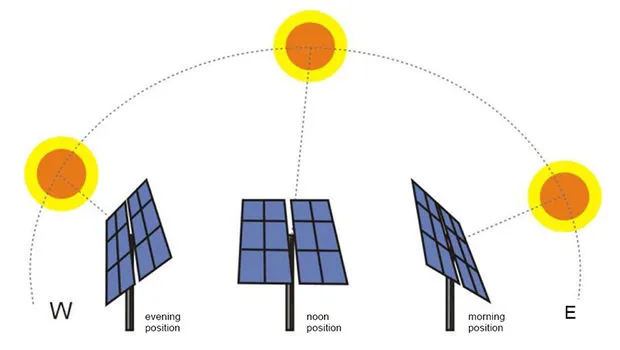

Tilted Solar Tracker

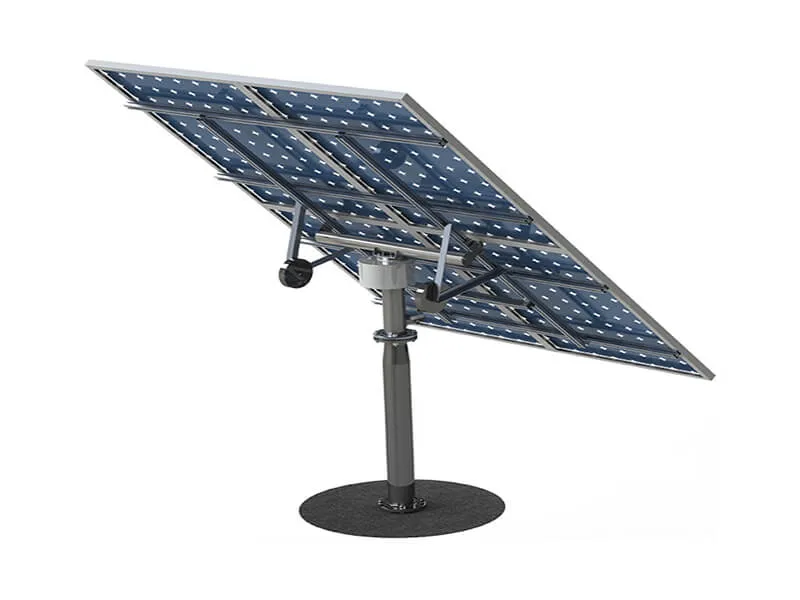

Single Axis Tracker
Project Cases & Facility

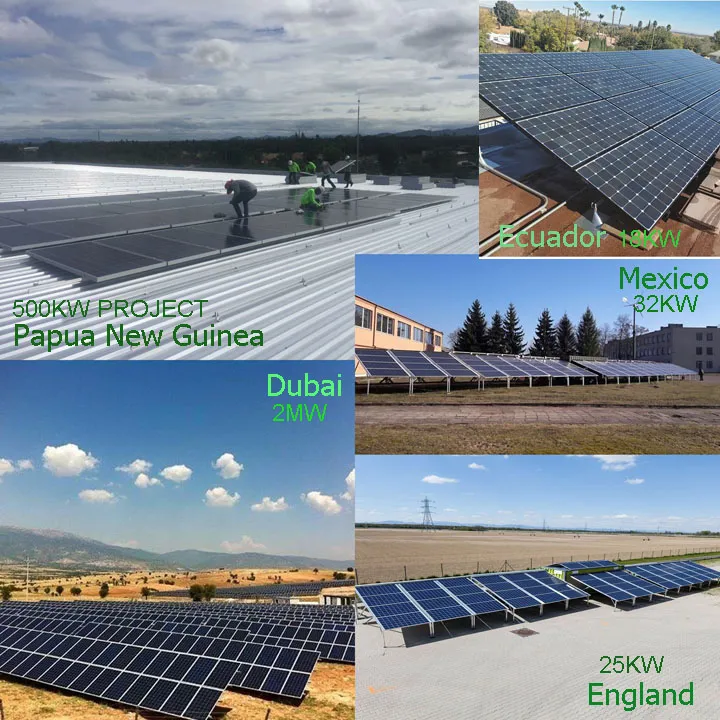

Classic Cases

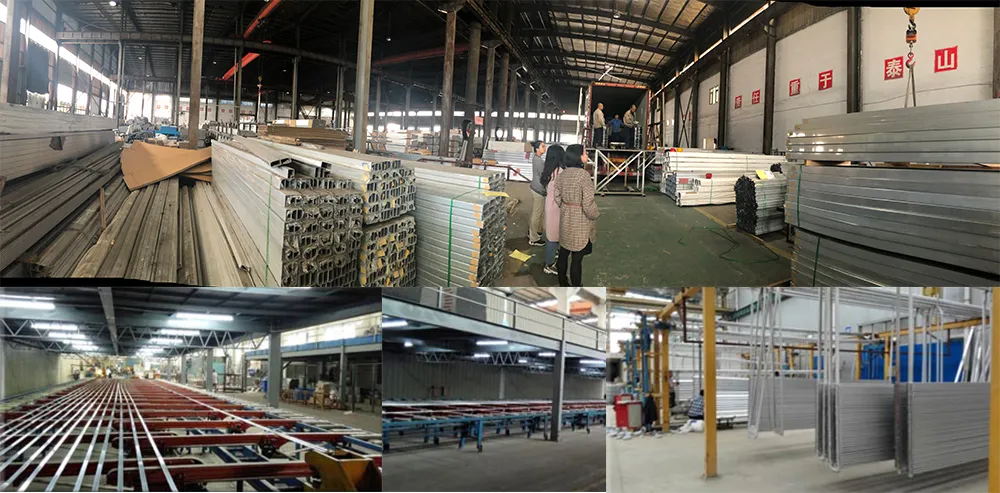

Factory Overview
Customer Visit
Packaging & Certifications
Packaging
Shipping

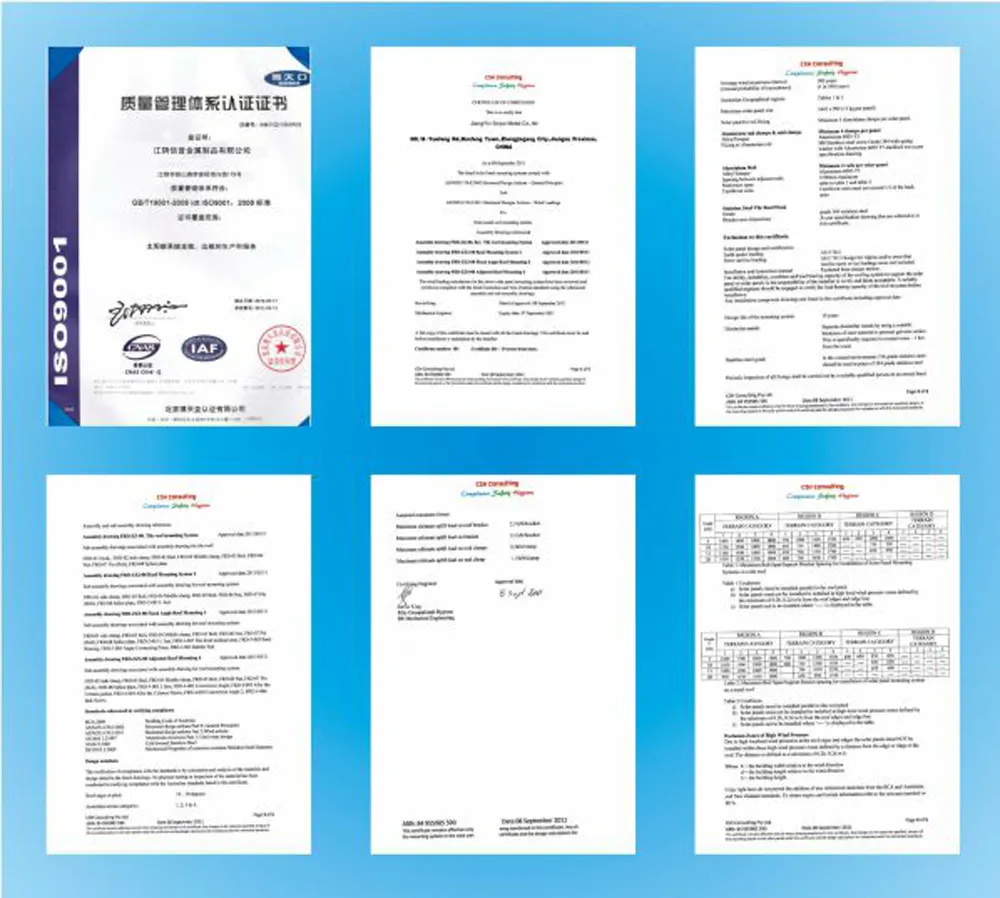

Certifications
Frequently Asked Questions
Q1: What is the Minimum Order Quantity (MOQ)?
A: 500kg for general products. More than 5 tons for customized new products.
Q2: Can you produce aluminum profiles based on custom drawings?
A: Yes, we have professional engineers to design CAD drawings and create molds according to specific requirements.
Q3: Which certifications and standards do you follow?
A: We hold ISO certification. Our production standards include DIN, AAMA, AS/NZS, and China GB.
Q4: What is the typical delivery time?
A: New molds and samples take 2-3 weeks. Mass production typically requires 3-4 weeks after deposit and order confirmation.
Q5: What are the available packaging options?
A: We commonly use shrink films or kraft paper, but we can accommodate custom packaging requests.
Q6: What are the accepted payment terms?
A: Usually T/T (30% deposit, balance before shipment). L/C is also acceptable.
For an accurate quote, please provide:
  • Dimension of solar panels (length * width * thickness)
  • Solar panels array configuration
  • Installation site details (rooftop or ground type)
  • Required tilt angle
  • Local wind load and snow load requirements
