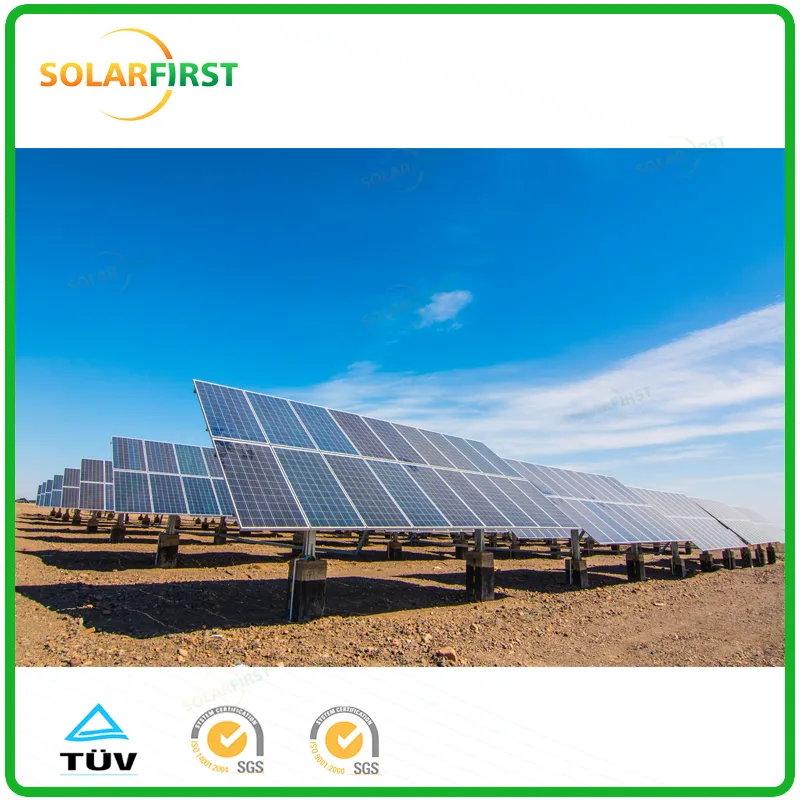

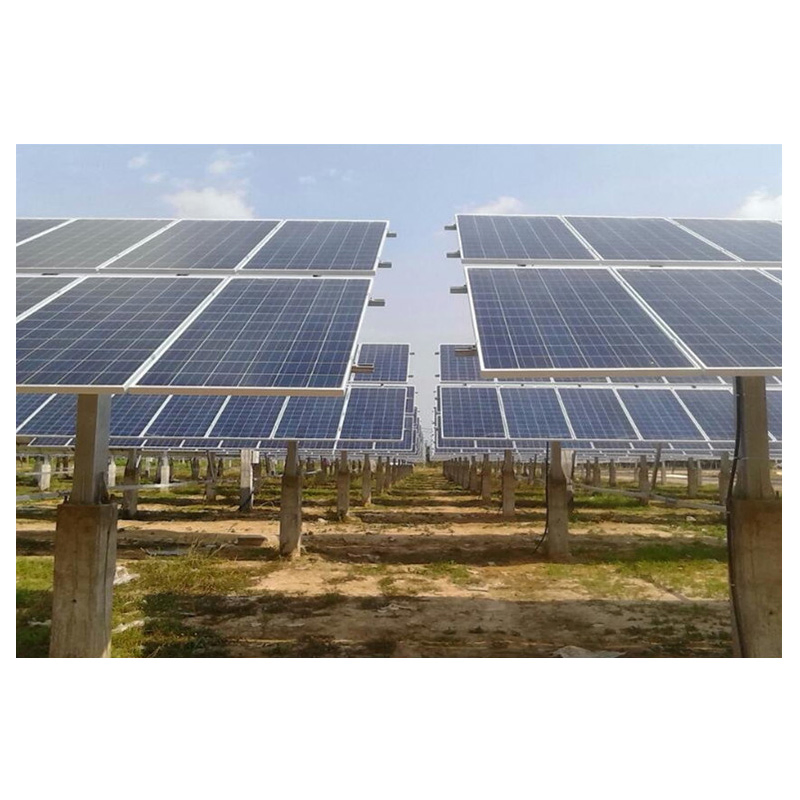

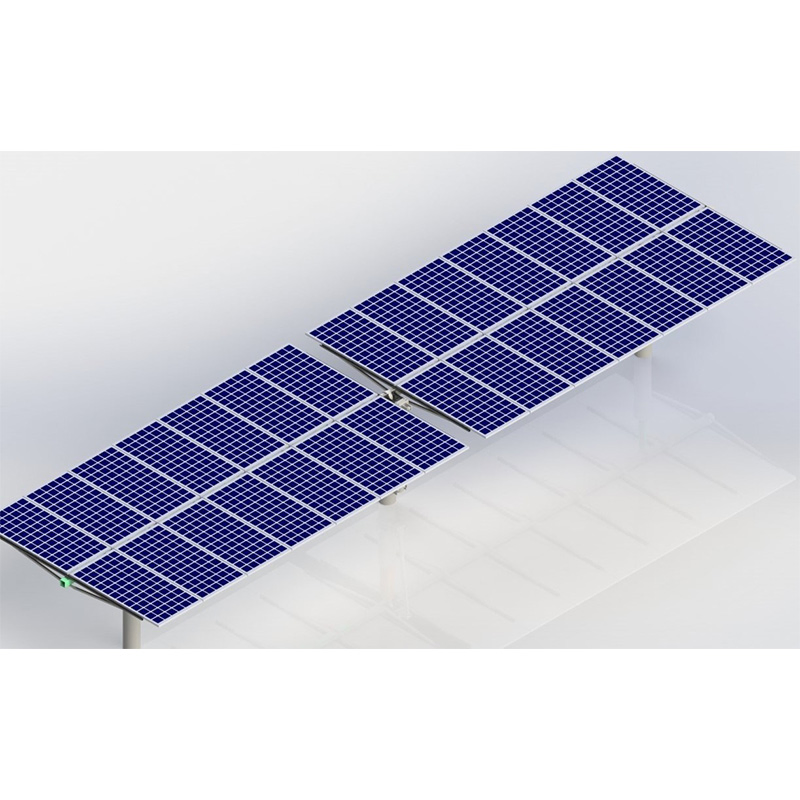

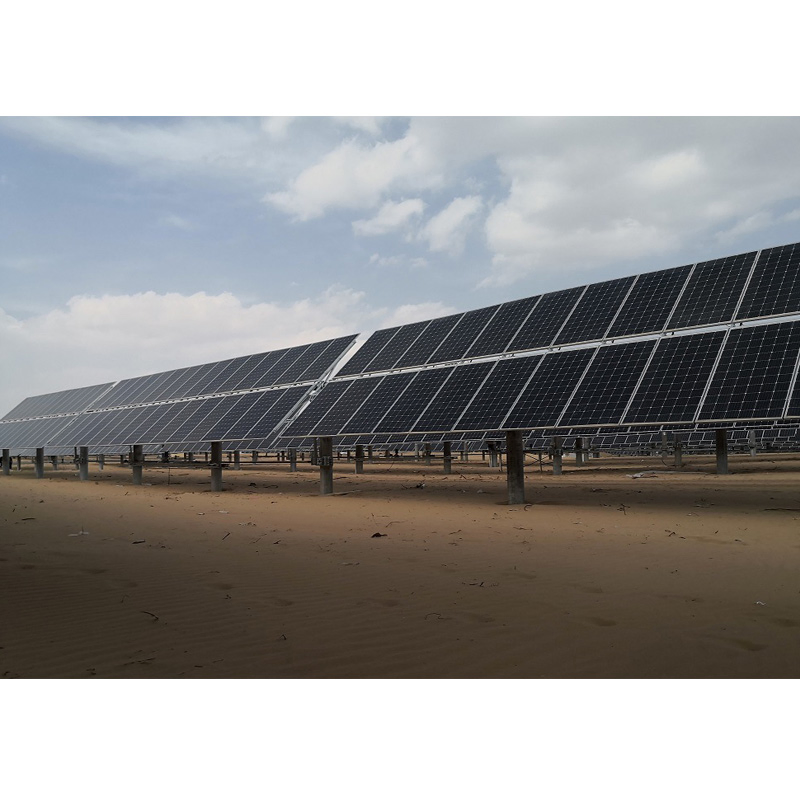

Single Axis Tracker Introduction: These trackers have one degree of freedom that acts as an axis of rotation. The axis of rotation of single axis trackers is typically aligned along a true North meridian. It is possible to align them in any cardinal direction with advanced tracking algorithms. The orientation of the module with respect to the tracker axis is important when modeling performance.
| Category | Specification Details | |
|---|---|---|
| System Data | Type | Horizontal single axis (HSAT) |
| Single array capacity(DC) | 30KW~400KW | |
| Tracking range | ±45° | |
| Increased power output | 10%~25% | |
| Mechanical | Drive type | Slew drive |
| Structure material | HDG (Hot Dip Galvanized) | |
| Max. Wind resistance | 40m/s (customizable) | |
| Foundation type | Concrete footing or ramming pile | |
| Electrical | Power supply | 24VDC / 110V/220V/380VAC |
| Power consumption | ≤0.3kWh/day | |
| Control mode | Closed loop time control | |
| Working temp. range | -25ºC to 65ºC | |
