| Model NO. | WTT-2P |
|---|---|
| Condition | New |
| Certification | ISO, CE |
| Application | Commercial |
| Install Site | Open Terrain |
| Module Orientation | Horizontal |
| Motor Type | 24V DC Motor |
| Tracking Range | ±60°(Customized According to Project) |
| Production Capacity | 1gw/Years |

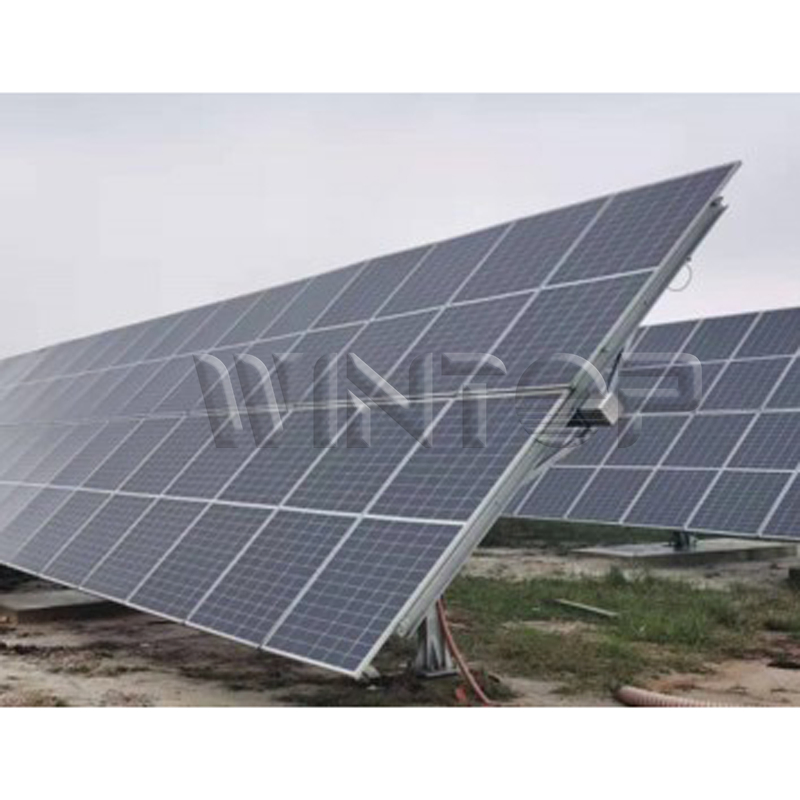

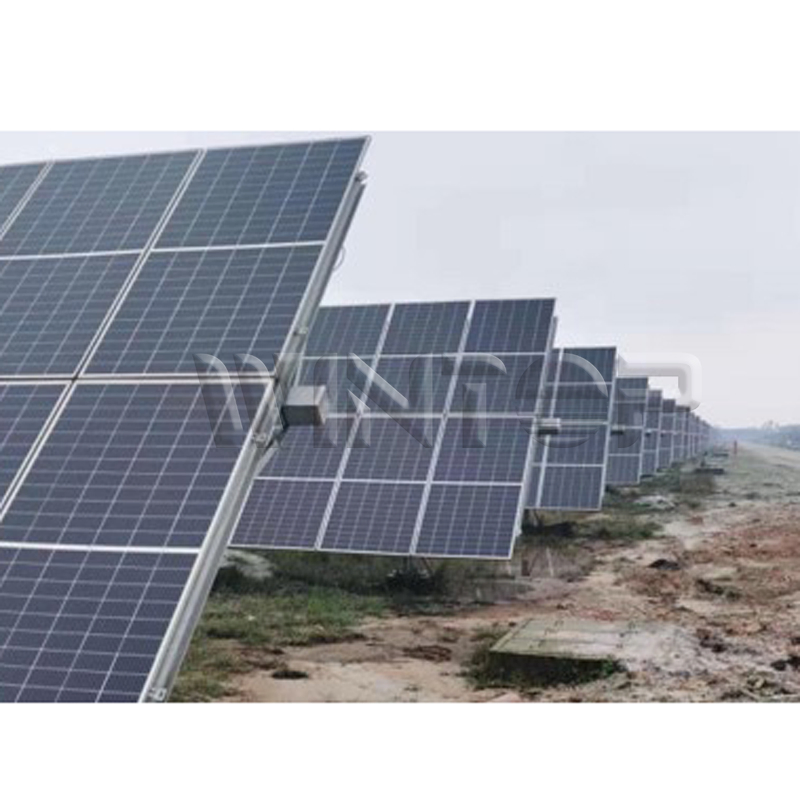

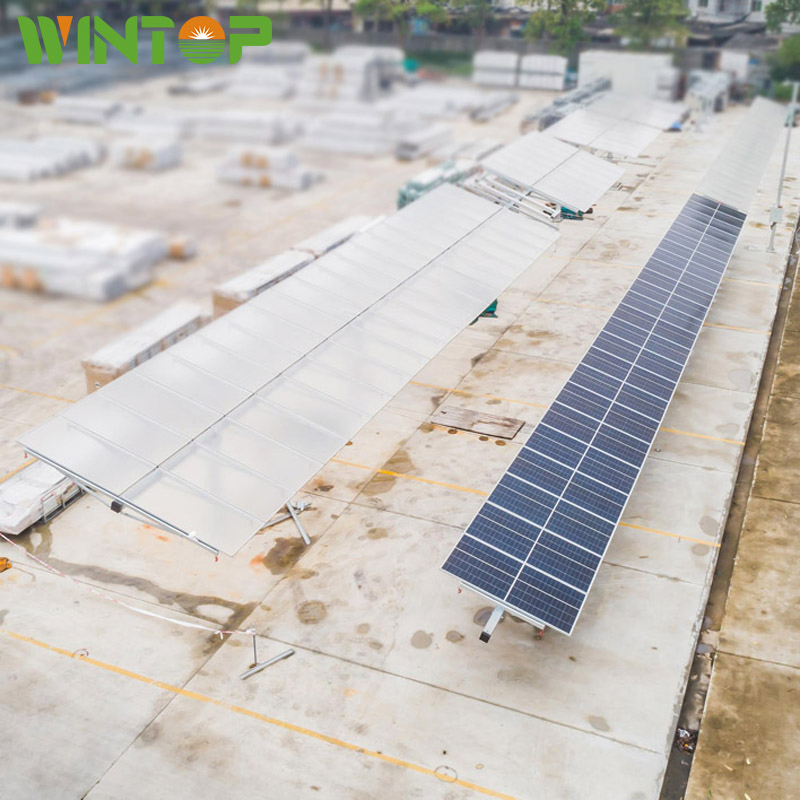

Horizontal Single Axis Tracker for Solar Panel

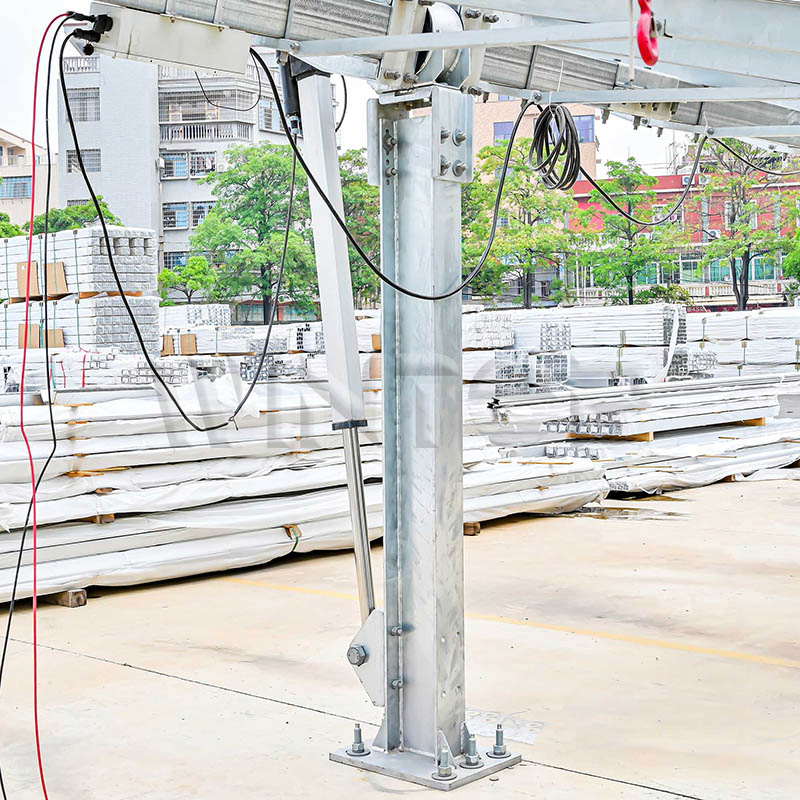

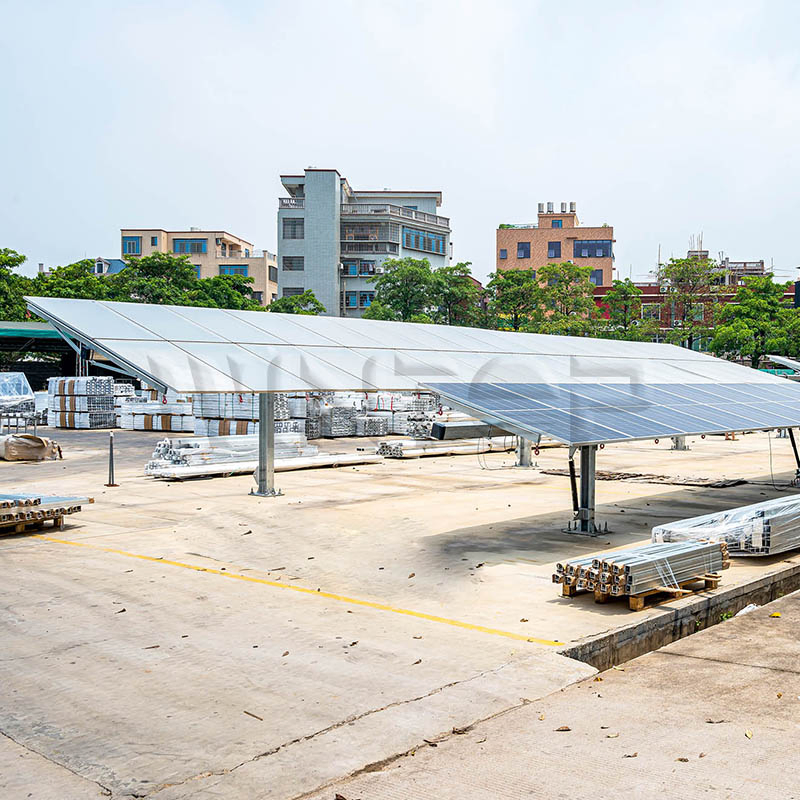

The single post solar tracking system is fully compatible with 210 silicon wafer modules. It is a double-row small solar tracker supported by only one column. It has a built-in inclination sensor and has an intelligent wind speed protection function; it can freely choose AC power supply or self-power supply according to the actual situation.
| PV-Modules | |
| PV- Modules supported | Fully fit for 210 module |
| Structure | |
| System type | Single post tracking system |
| Maximum capacity per set | 4.8kWp ( Estimated with 600W PV-Modules ) |
| PV- Module quantity per set | 8 PCS |
| Tracking Range | ±45°( E-W ) |
| Tracking accuracy | ±0.5° |
| Tracking type | Single axis tracking with tilt angle |
| Tilt angle | 25°- 40°( S-N )( according to project ) |
| Structural Materials | HDG Steel, Al- Mg-Zn Coating Steel |
| Electrical | |
| Solar tracking method | Astronomical algorithm + closed- loop control (AI) |
| Drive method | Slew Drive |

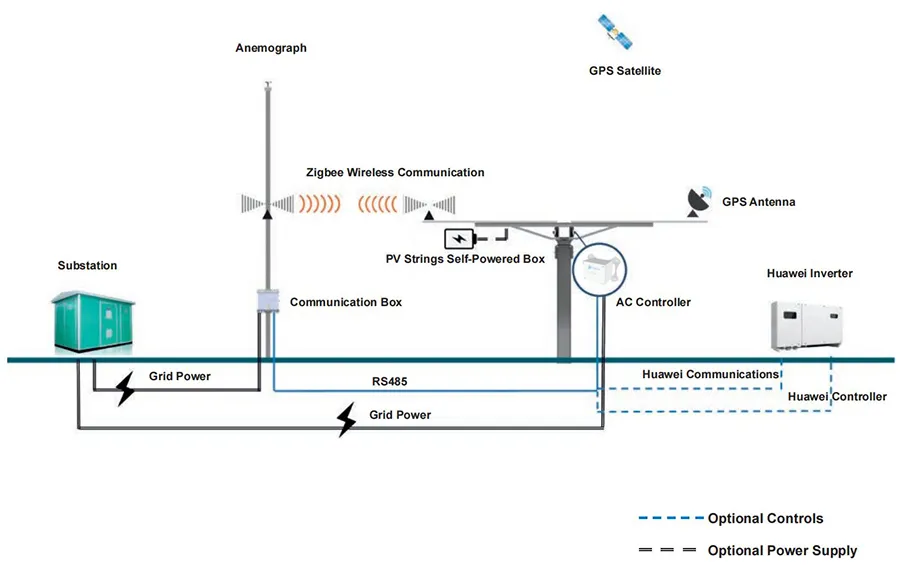

| Power supply | AC- powered or self- powered ( with 8 PV modules ) |
| Protection function | |
| Wind protection | ≥18m/s ( Windy area ) |
| Night stow mode | Yes |
| System fault self-diagnosis | Yes |
Established in 2016, this high-tech enterprise integrates R&D, production and marketing of Solar Mounting System for residential, commercial and utility scale customers.
