PV Solar Mounting Roof Clamp for Standing Seam Rooftop

i

Basic Specifications

Model NO.	RF-0020
Certification	ISO, CE
Application	Home / Residential
Material	Aluminum Alloy
Type	Roof Bracket
Install Site	Tin Roof
Module Orientation	Landscape, Portrait
Anti-Corrosive	Anodized
Max Wind Speed	60m/S
Max Snow Load	1.6kn/M²
Duration	More Than 20 Years

!

Product Description

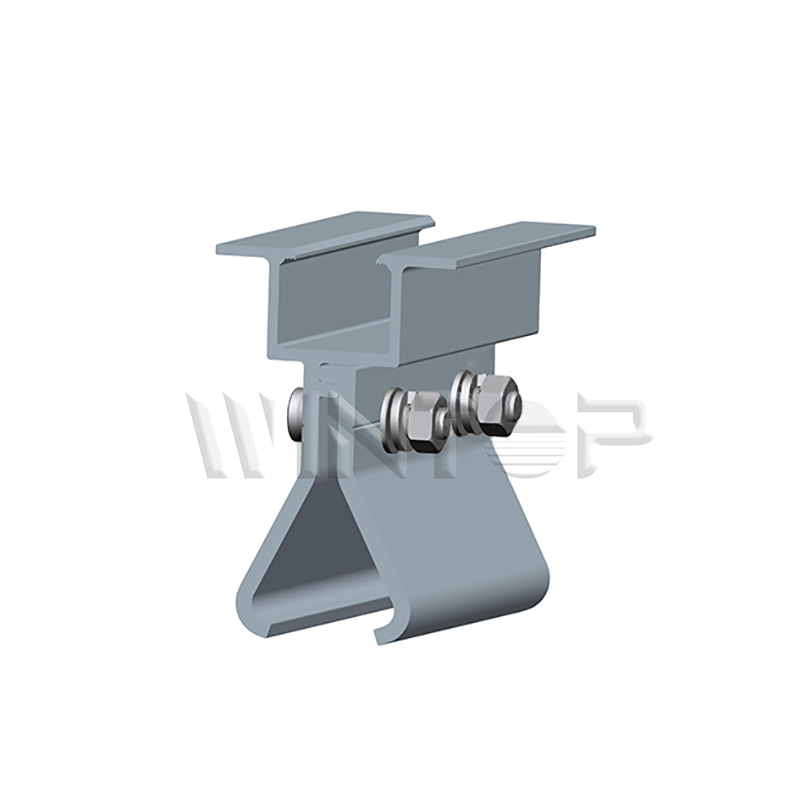

PV Solar Mounting Roof Clamp for Standing Seam Rooftop

This roof clamp is specifically designed for standing seam roofs and supports two versatile installation methods: with rails or rail-less. The rail-less option utilizes only 3 main accessories, significantly reducing material costs and simplifying the installation process on-site.

⚙

Product Parameters

Component	Size	Qty	Material
Clamp Accessory 1	100mm	1	Aluminium
Clamp Accessory 2	100mm	1	Aluminium
Flat Washer	M8	4	SUS304/316
Hexagon Nuts	M8	2	SUS304/316
Socket Head Bolt	M8x30	2	SUS304/316
Spring Washer	M8	2	SUS304/316

★

Features & Benefits

Professional structural design ensures maximum strength of the bracket system.
Lightweight components with excellent flexibility and high structural integrity.
Easy component installation, saving significant labor costs and time.
Versatile installation methods, perfectly suited for trapezoidal tin roofs.
Ideal for both commercial and residential solar projects.

P

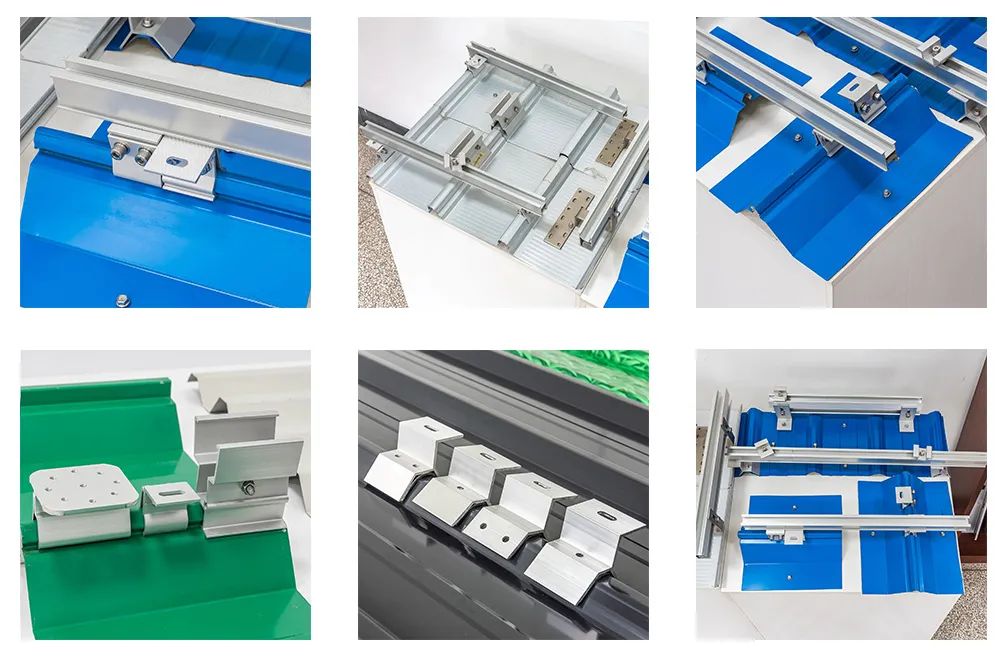

Product Details

C

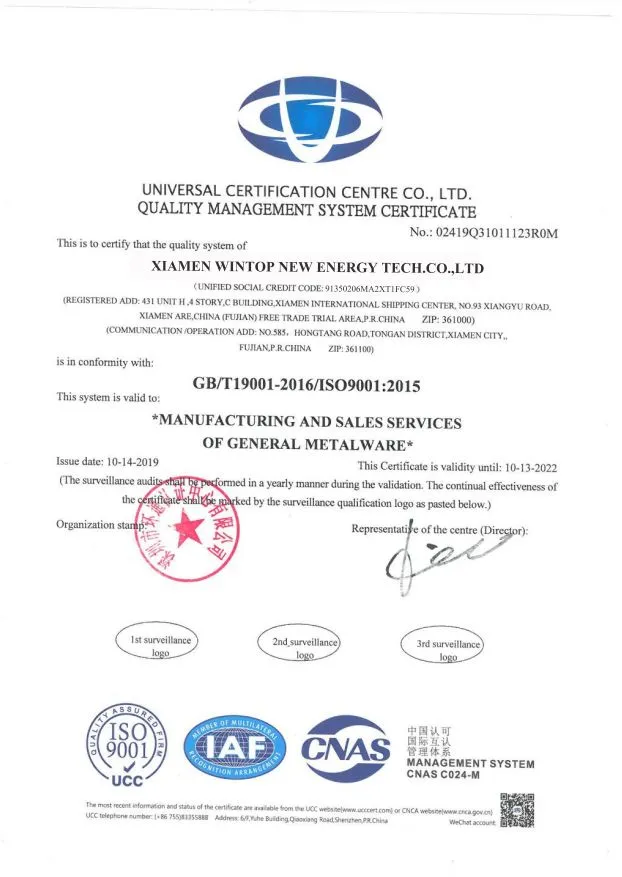

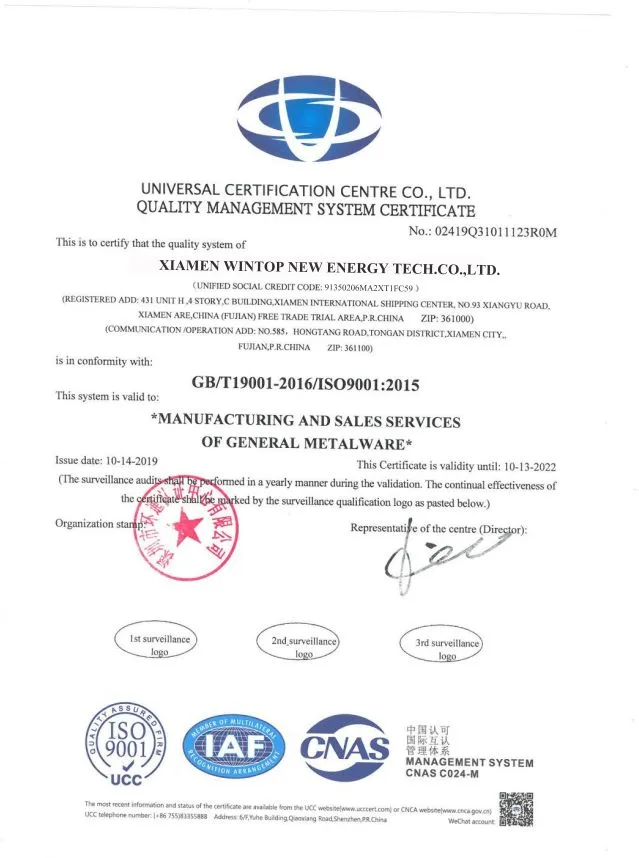

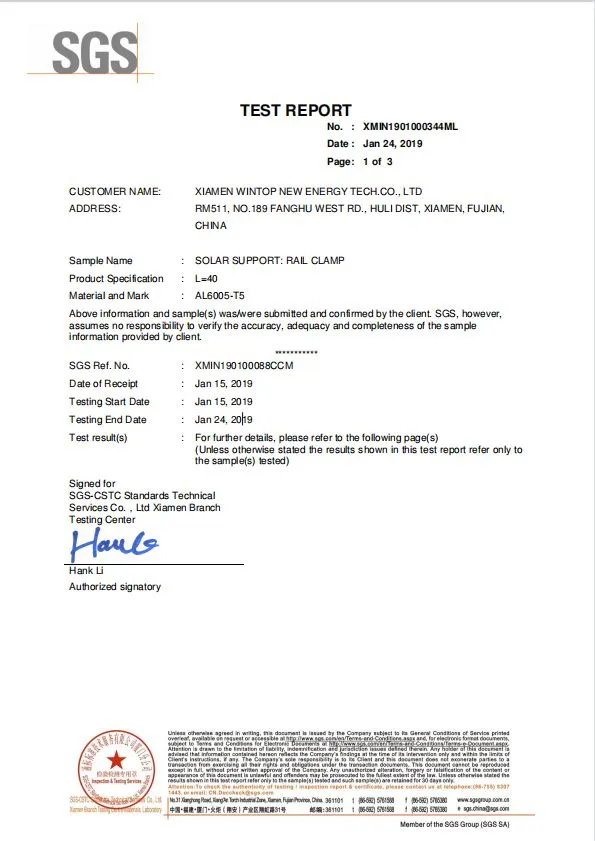

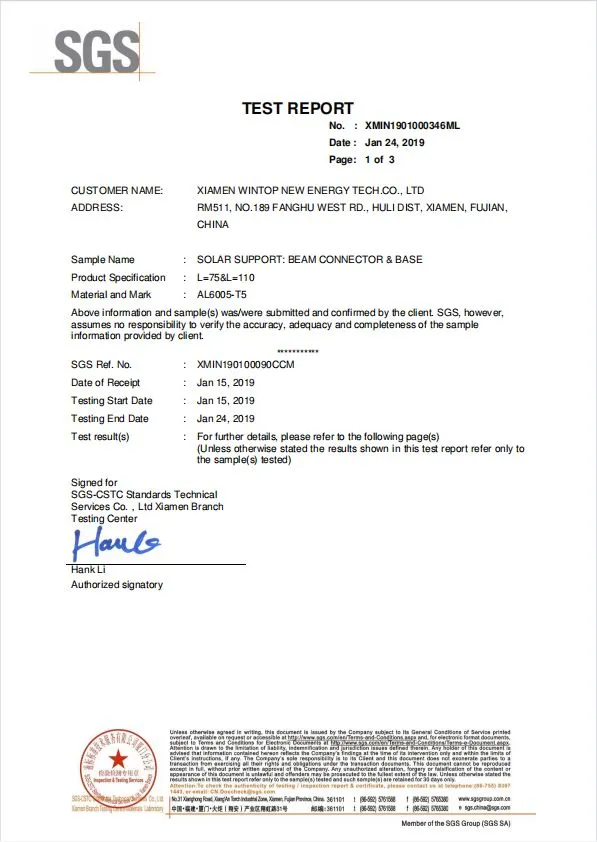

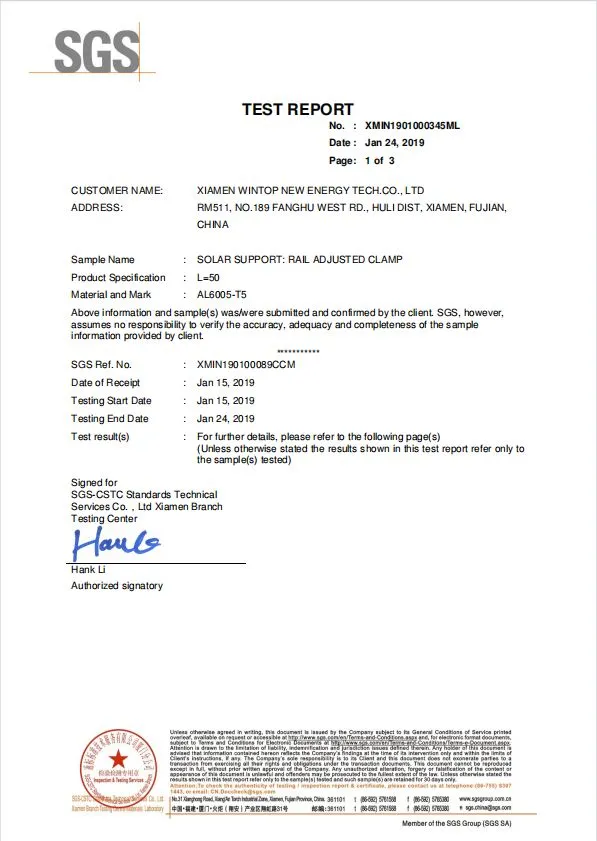

Certifications

H

About Our Technology

Established in 2016, our high-tech enterprise integrates R&D, production, and marketing of Solar Mounting Systems. We provide high-quality solutions for residential, commercial, and utility-scale solar projects worldwide.

?

Frequently Asked Questions

1. Will the solar panels cause my roof to leak?

No. All mounting solutions are professionally engineered to ensure roof integrity. For shingled roofs, we use metal flashing kits to create a watertight seal; for standing seam roofs, our clamps grip the seams without penetrating the roof surface.

2. What materials are used in the mounting system?

The main brackets are made of high-grade Anodized Aluminum Alloy for corrosion resistance, while all hardware (bolts, nuts, washers) are made of SUS304 or SUS316 stainless steel for long-term durability.

3. How much wind and snow load can the system handle?

The system is engineered to withstand a maximum wind speed of 60m/s and a maximum snow load of 1.6kn/M², making it suitable for extreme weather conditions.

4. Is the installation process difficult?

Not at all. The design focuses on simplicity. The standing seam clamp can be installed with just 3 main accessories in a rail-less setup, which saves time and significantly reduces labor costs.

5. What is the expected lifespan of the mounting system?

Due to the use of anodized aluminum and stainless steel, our mounting systems are designed to last for more than 20 years in outdoor environments.

6. Can I request samples before placing a bulk order?

Yes, samples are available upon request. While the minimum order quantity for systems is 1 set, we are happy to send component samples for quality verification (shipping fees apply).
