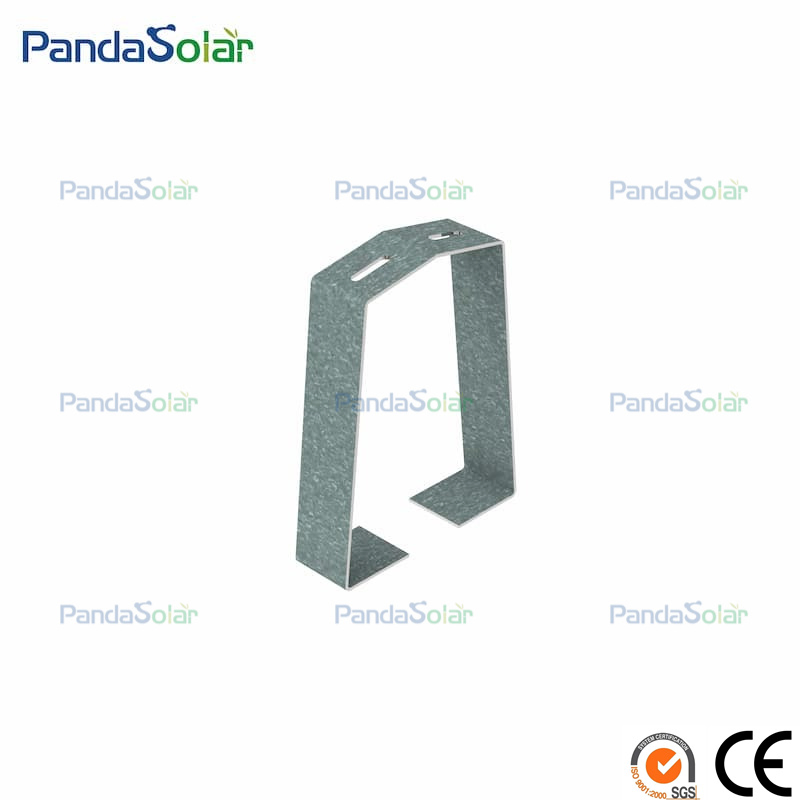

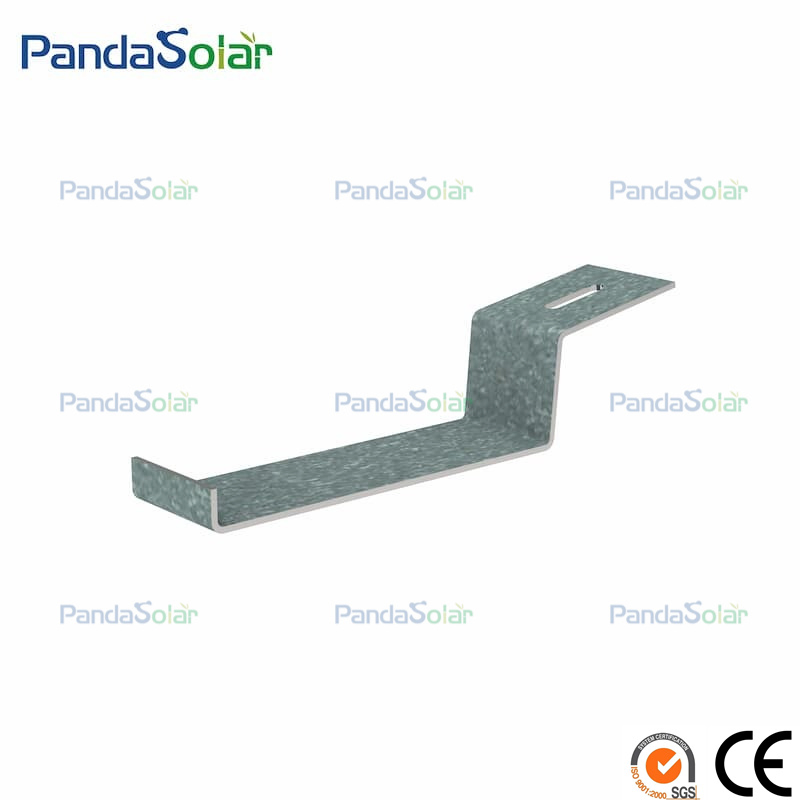

The solar front/rear leg system is constructed from high-quality steel, specifically designed for solar flat roof mounting. This Magnesium-Aluminum-Zinc Solar Mounting Kit offers a non-penetrating solution using a cement pier foundation, ensuring the integrity of the roof remains intact.

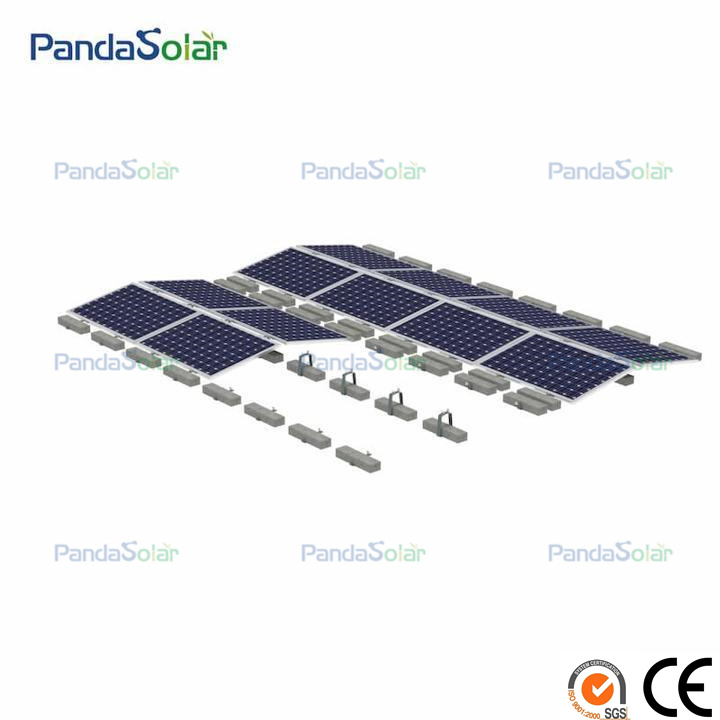

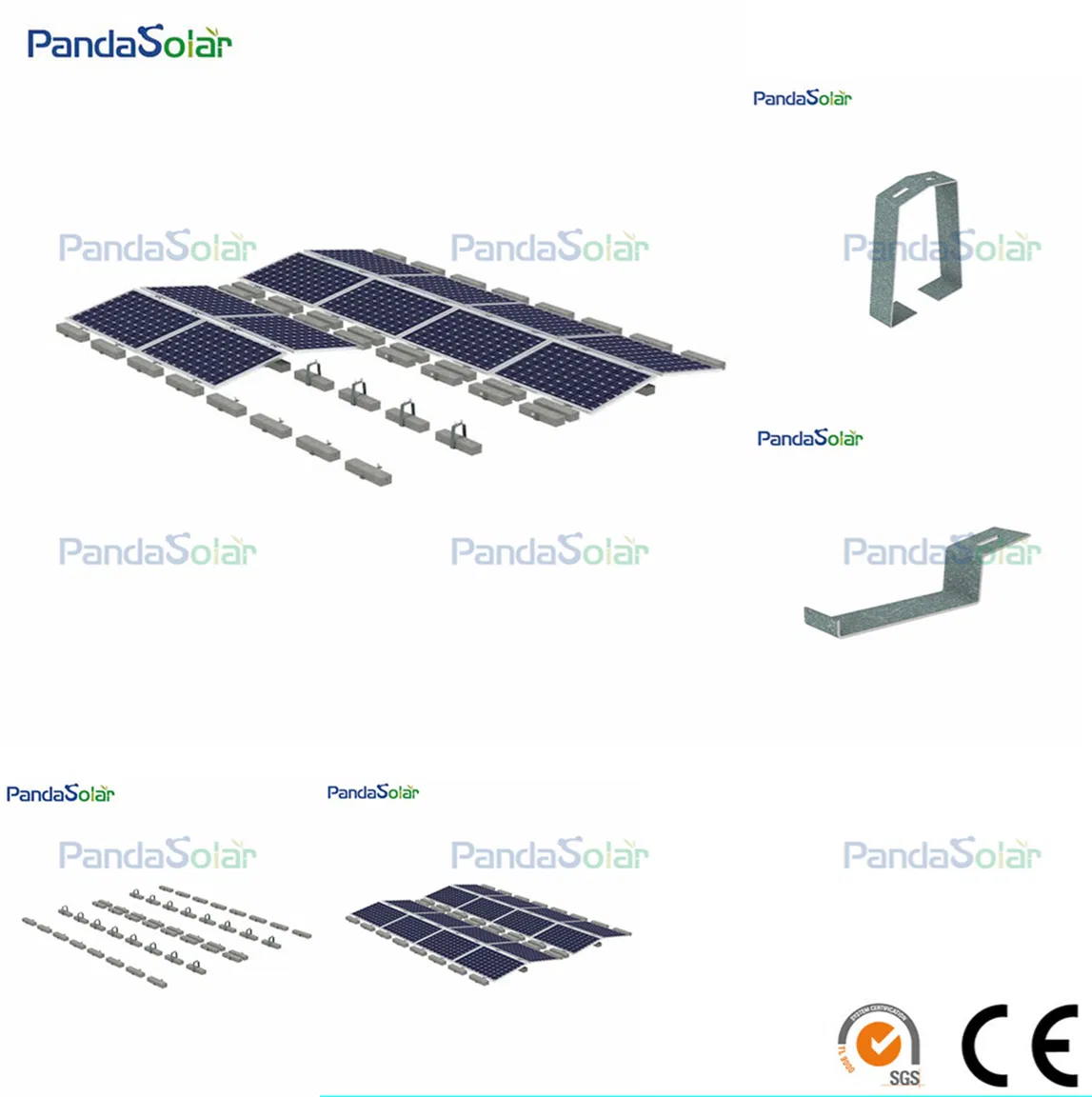

The ballast solar roof mounting bracket is a highly flexible solution, accommodating various solar panel orientations. Its integrated wind deflector design enhances structural stability, allowing it to withstand extreme wind speeds. The entire structure is optimized for simplicity and rapid assembly.

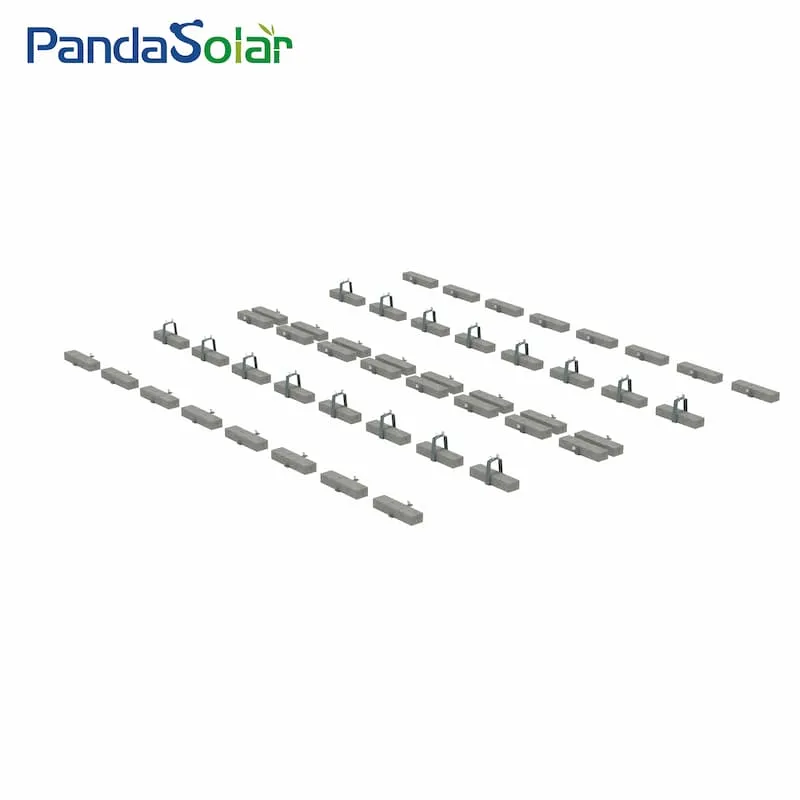

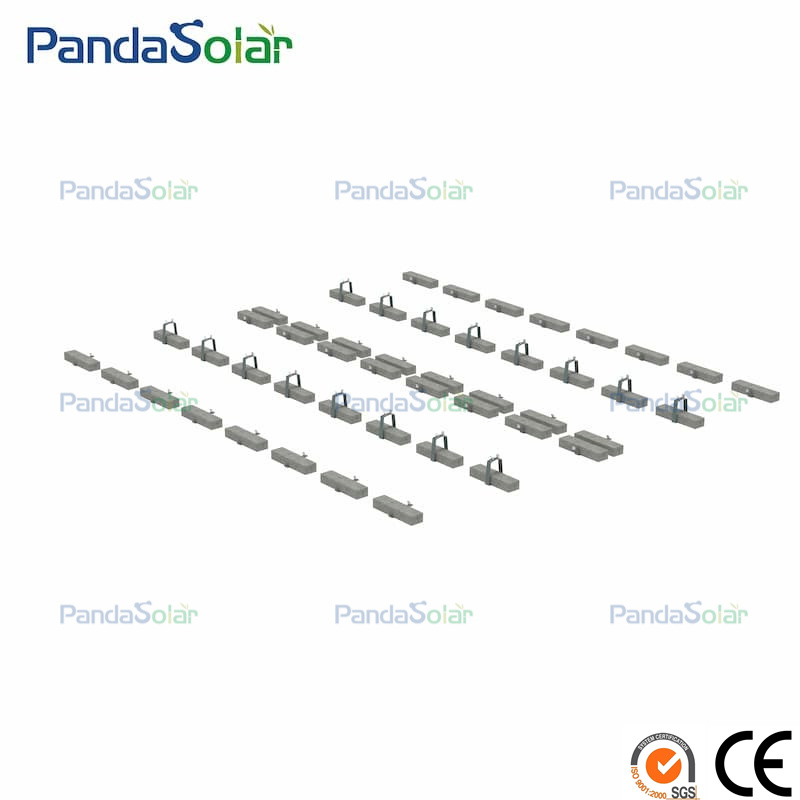

Step 1: Based on the specific wind speed and snow load requirements of the site, place the appropriate concrete piers on the flat roof. Secure the front and rear legs to these concrete foundations.

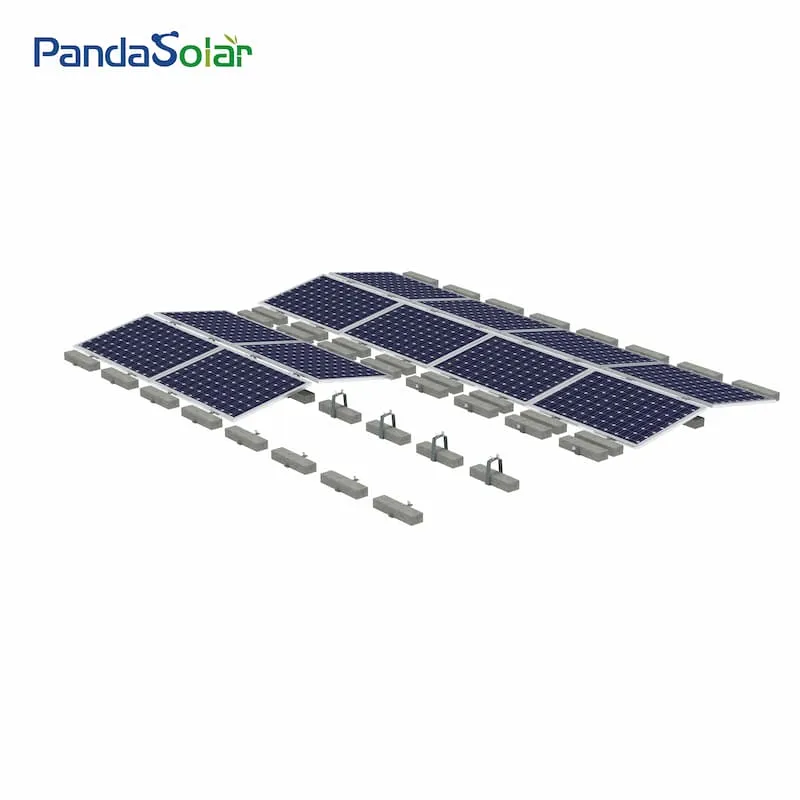

Step 2: The solar panels are securely fastened to the Ballast Mounting System using professional-grade solar end clamps and solar middle clamps.
| Parameter | Specification Details |
|---|---|
| Material | Structure: Mg-Al-Zn Steel | Components: SUS304 & AI6005-T5 |
| Application | Commercial and Residential Flat Roofs |
| Tilt Angle | 0 - 60° |
| Wind Speed | Up to 60 m/s |
| Snow Load | 0 - 150 cm |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 Years |

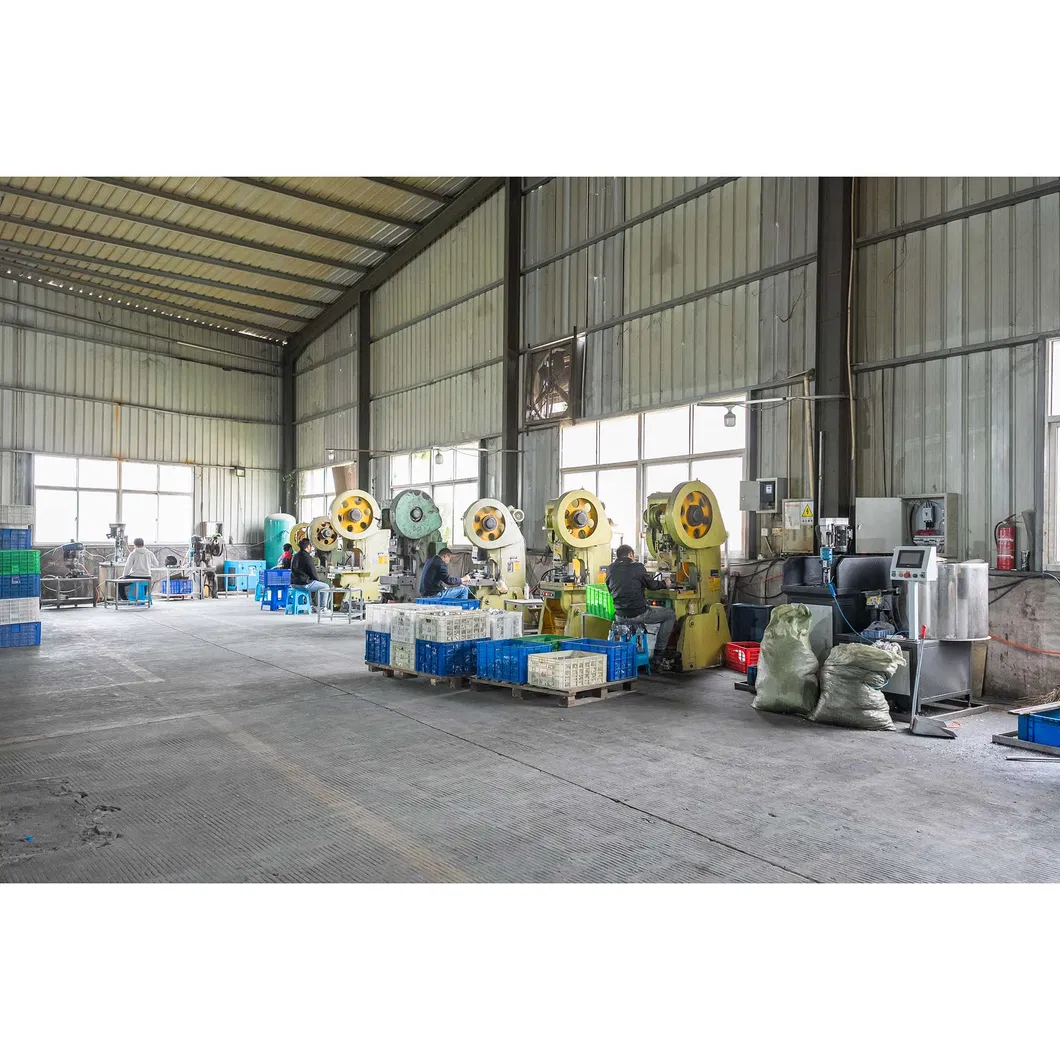

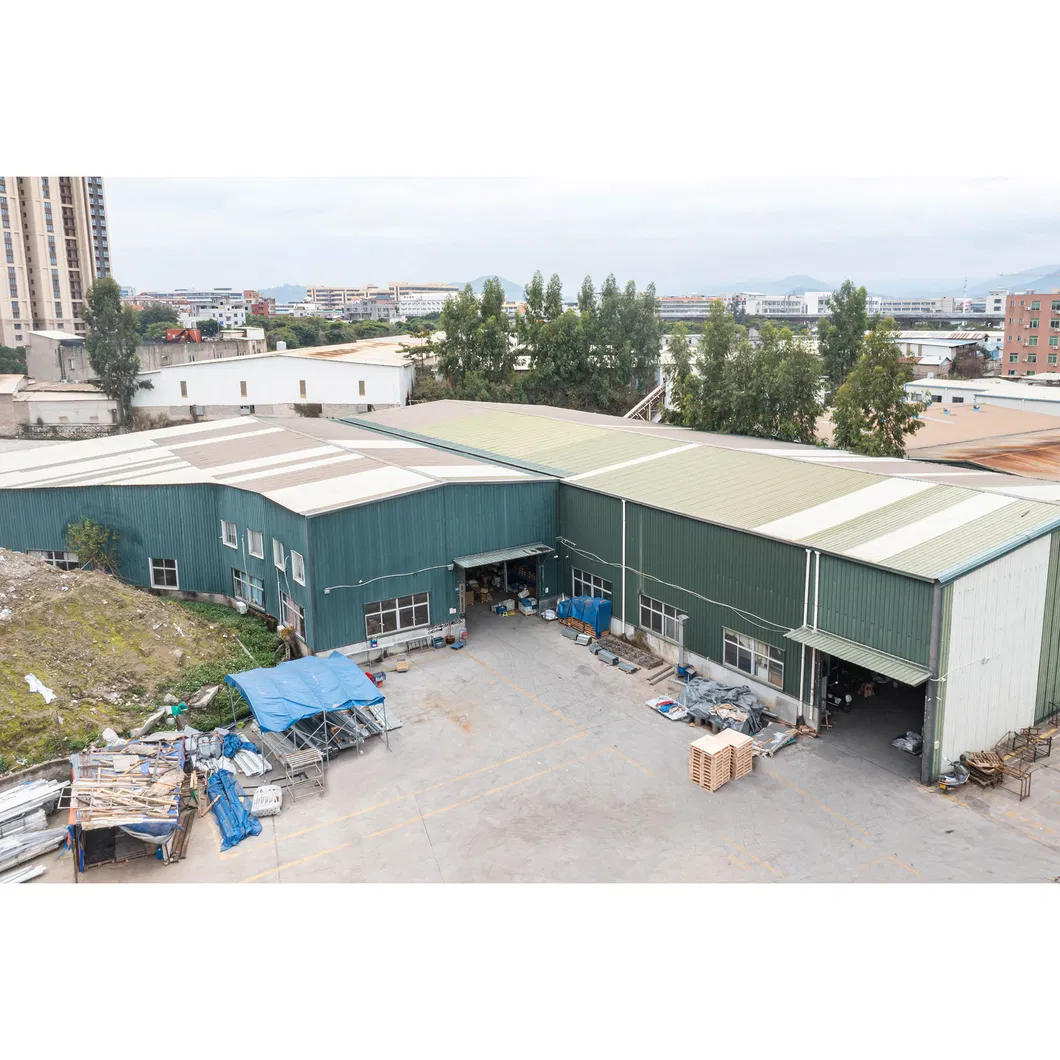

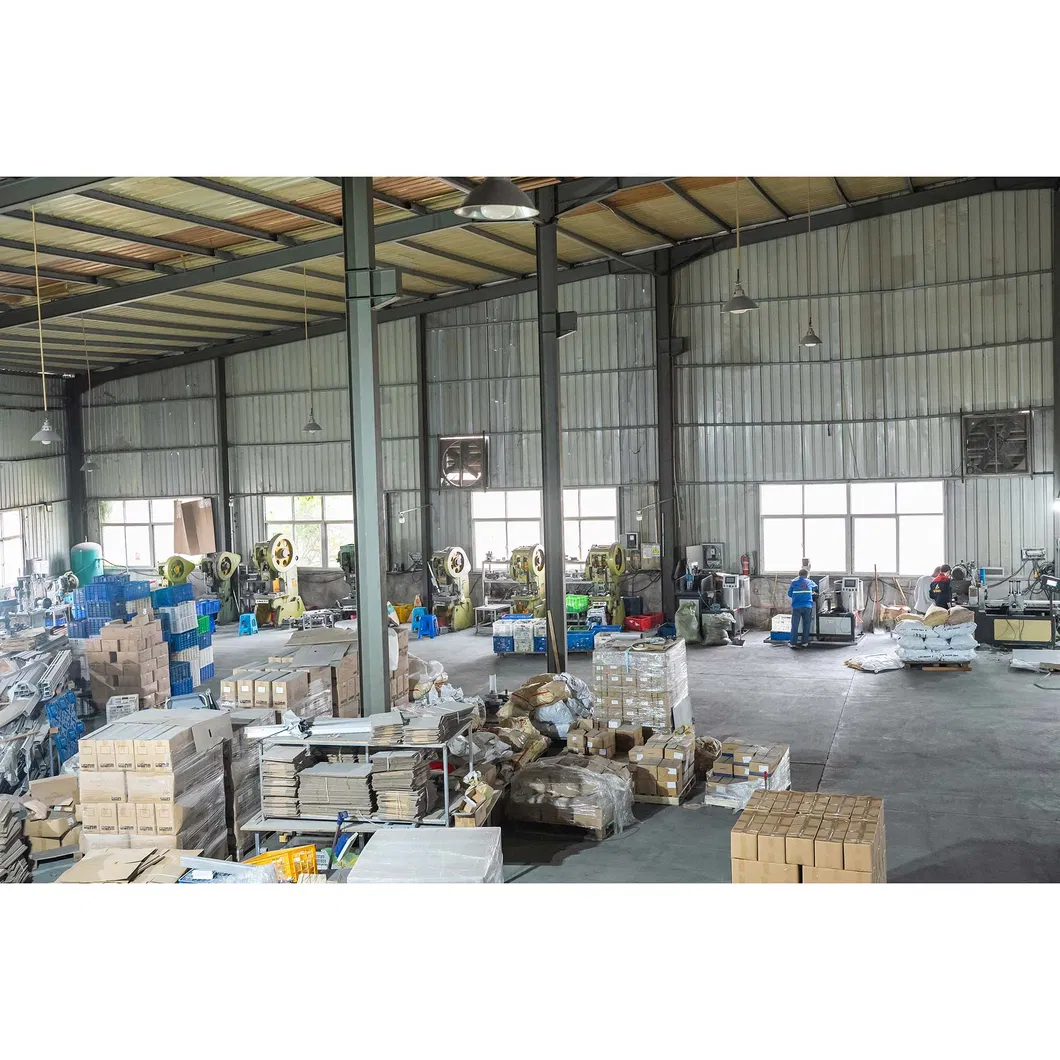

The facility features dedicated workshops for clean energy mounting systems. The Aluminum Material Workshop handles independent cutting, drilling, stamping, and forging with high precision. The Steel Material Workshop utilizes 6 advanced production lines for Mg-Al-Zn and S350GD/S450GD processing, achieving a monthly productivity of 40-50MW.
