Free Design Flat Roof Photovoltaic Solar Ballasted Panel Mounting System

1 / 5

Free Design Flat Roof Photovoltaic Solar Ballasted Panel Mounting System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.	YL-F1
Application	Commercial
Material	Aluminum Alloy
Type	Roof Ballast Bracket
Wind Load	up to 60 M/S
Snow Load	up to 1.4 Kn/M2
Foundation	Flat Roof with Concrete Block
Angle	5-15 degree

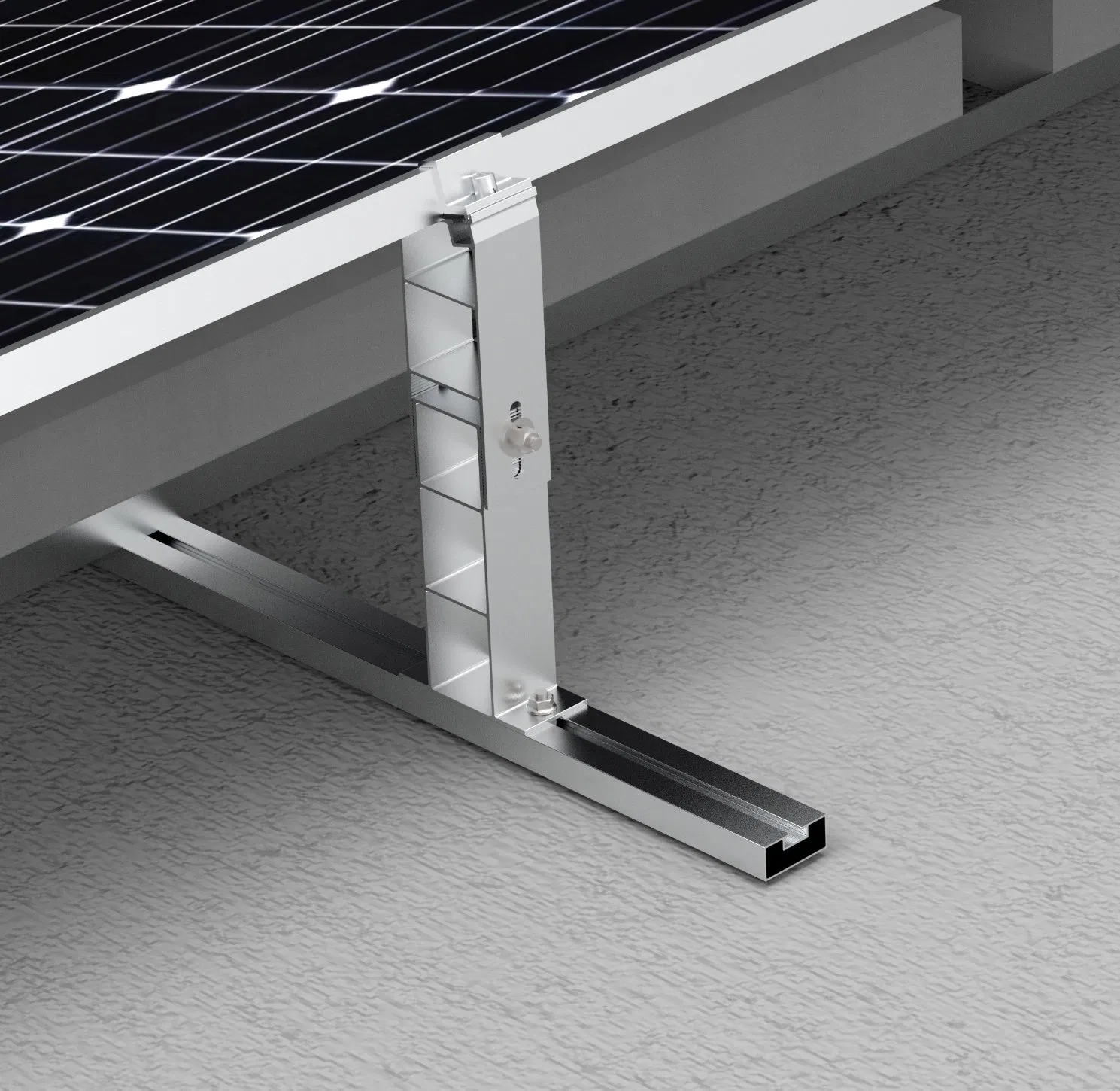

🛠️ Flat Roof Ballasted Mounting System

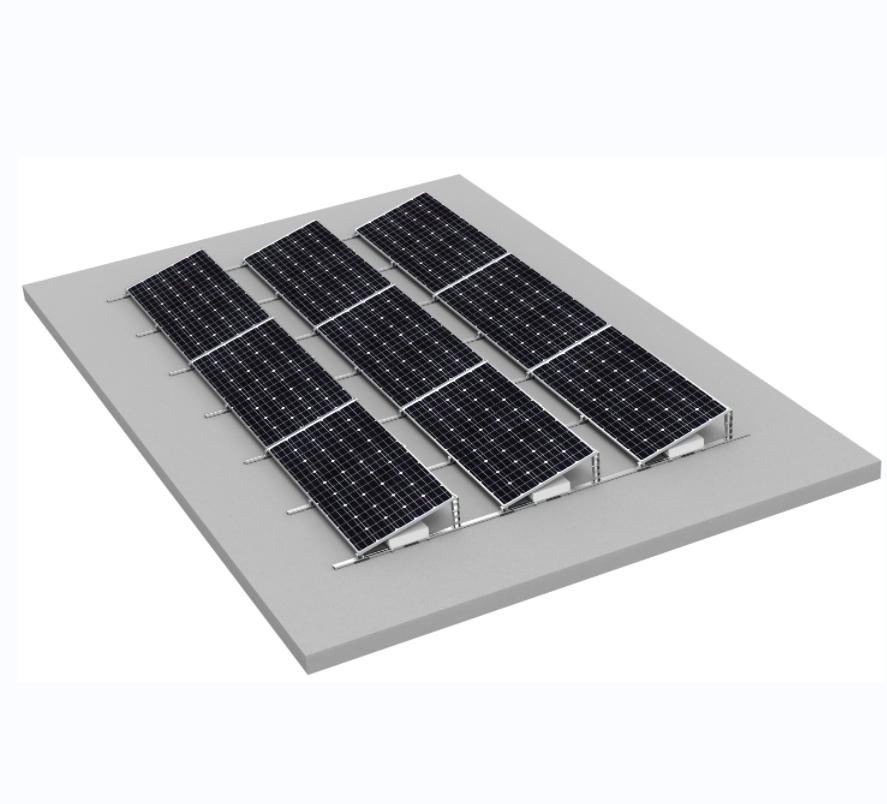

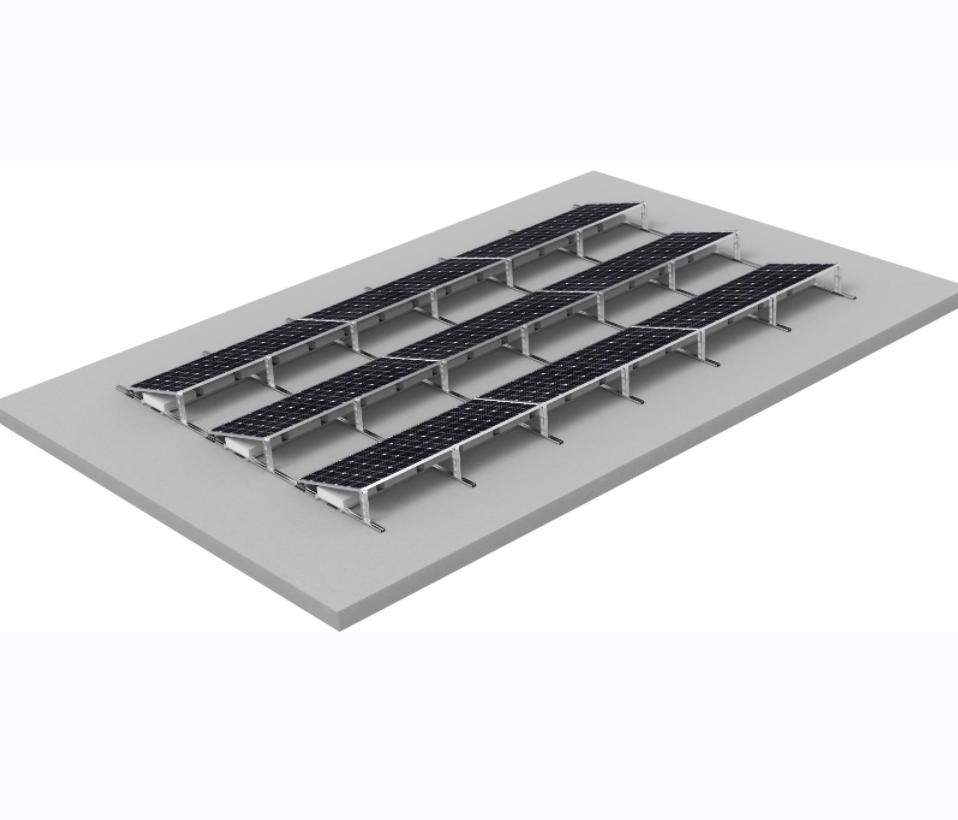

Single Orientation (5-15°)

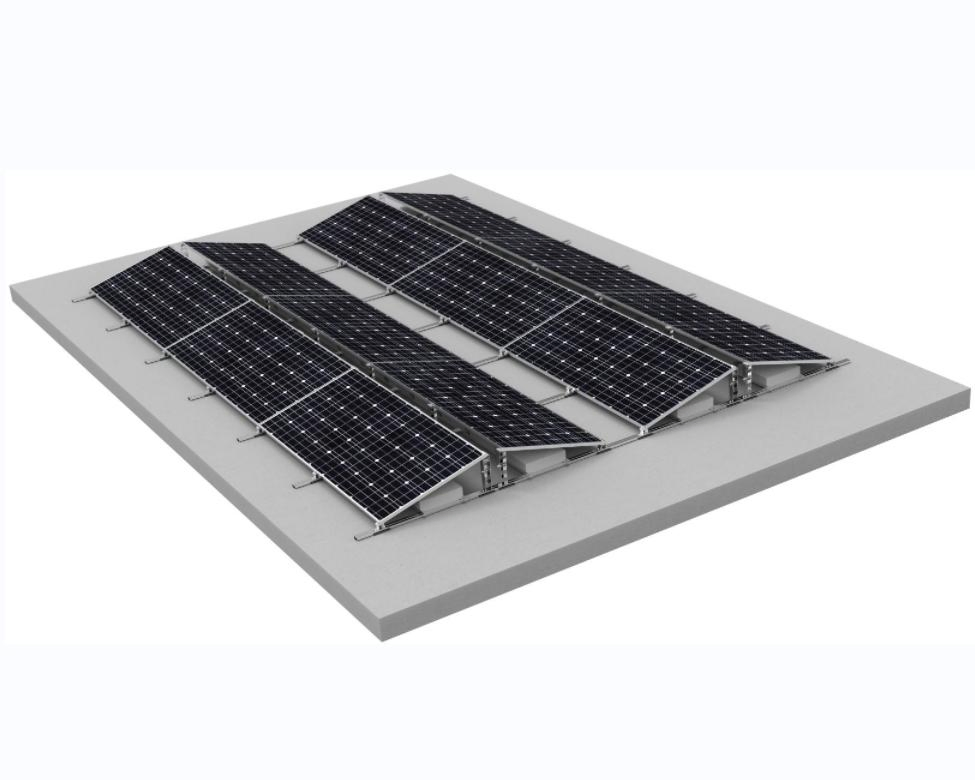

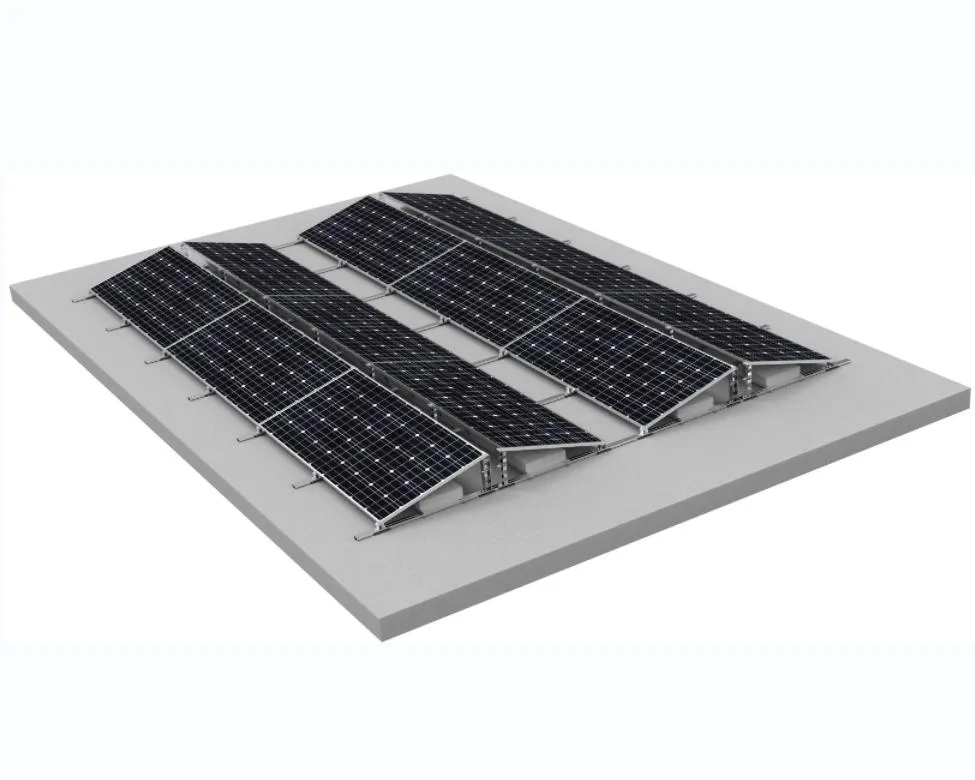

Double Orientation (5-15°)

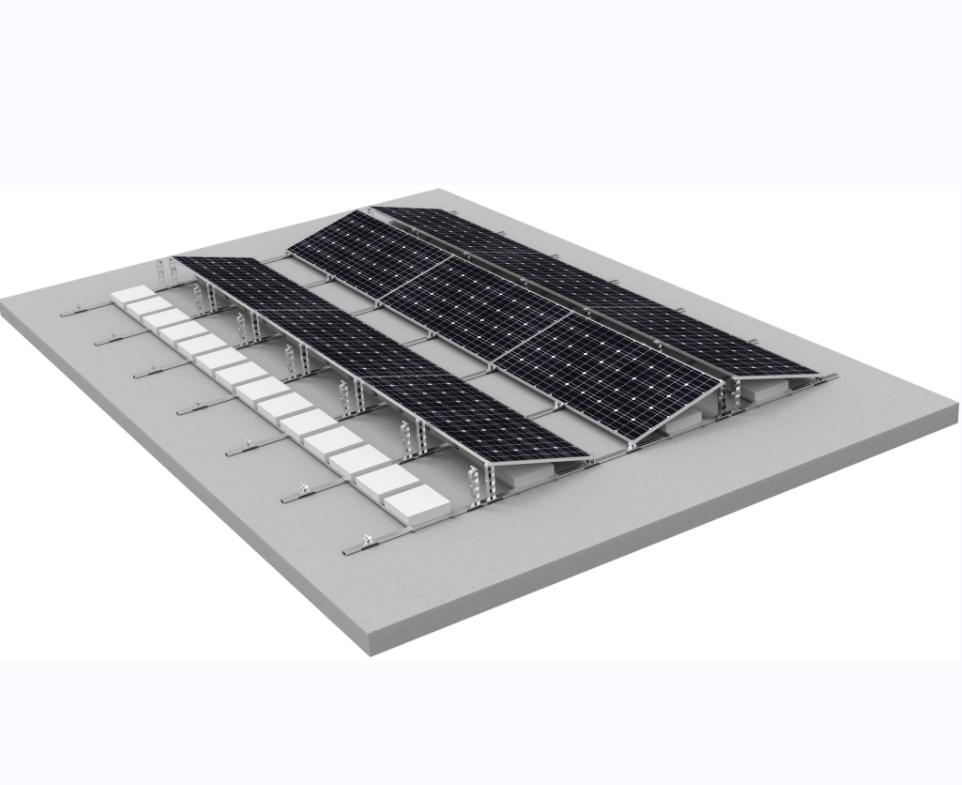

Flat Roof Photovoltaic Solar Ballasted Panel

Required Information for Custom Design:

1. Solar Panel dimensions (Length x Width x Thickness) and Power (W).

2. Panel array layout (Rows x Columns) and orientation (Portrait/Landscape).

3. Specific tilt angle for the structure (Standard 5-15° or customized).

4. Local environmental data: Max wind speed (m/s) and Snow load (kn/m²).

📦 Packaging & Logistics

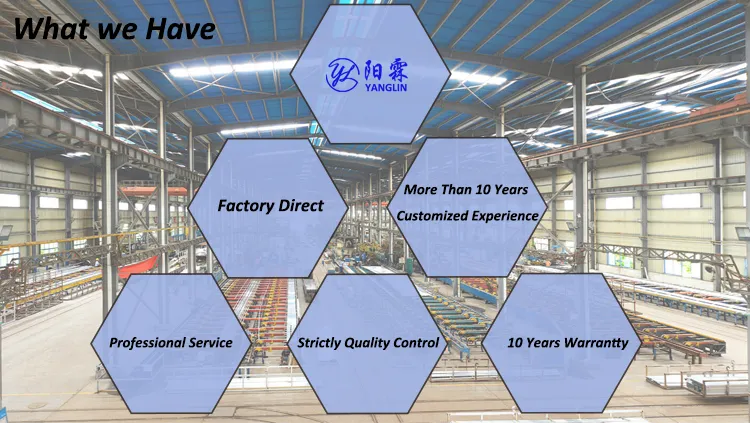

🏢 Professional Manufacturing Capability

Expertise Since 2007: With over a decade of experience, we operate a specialized 7,000m² workshop dedicated to high-quality PV structures.

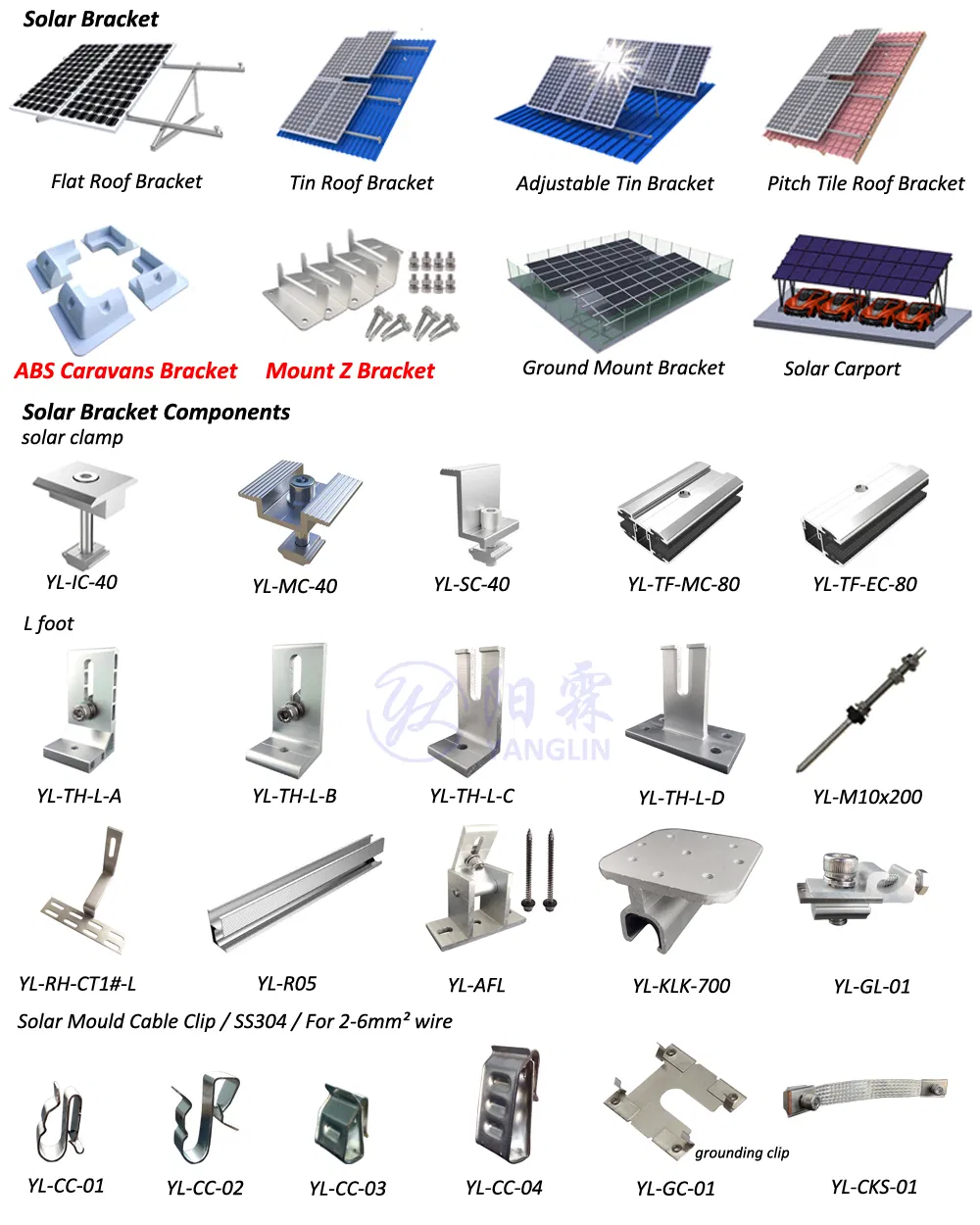

Comprehensive Product Range: We specialize in Flat Roof Mounts, Pitch Tile Roof Mounts, Tin Roof Mounts, Solar Carports, and various solar mounting components.

R&D Excellence: Our team includes 6 dedicated R&D specialists with 10 years of experience in customized solar racking solutions.

Efficient Delivery: Standard orders are processed with quick turnaround times ranging from 5 to 15 days.

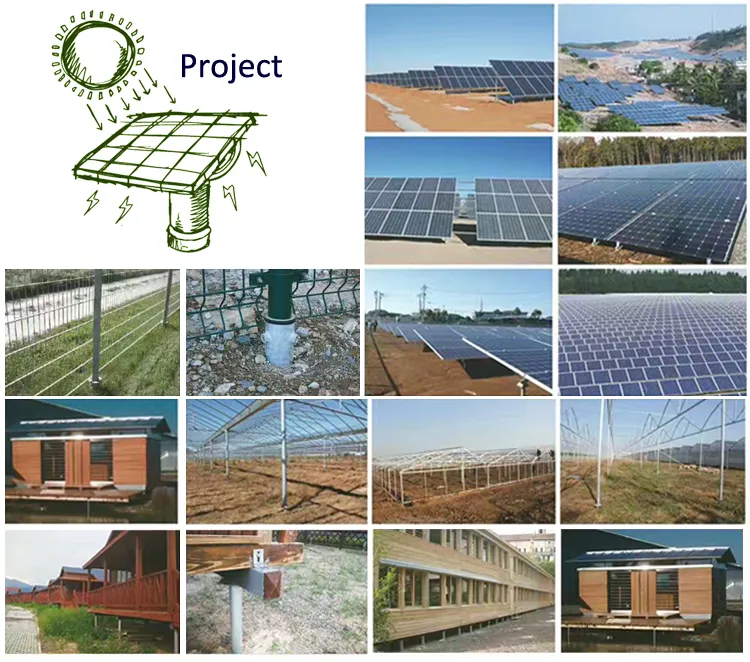

🌍 Projects & Exhibitions

Frequently Asked Questions

Q1: Are you a factory or a trading company? A: We are one of the largest professional factories specializing in solar racking systems in China, covering ground mounts, roof mounts, and customized OEM solutions.

Q2: How do you ensure product quality? A: Quality is central to our production. We conduct casual inspections during each procedure and a final QQC check once production is finished.

Q3: Can I request samples for testing? A: Yes, we are honored to provide samples upon request to ensure the mounting system meets your project requirements.

Q4: What is your standard delivery time? A: Typically, delivery takes between 5 to 15 days after receiving the deposit, depending on the order volume and customization requirements.

Q5: What information is needed for a customized quotation? A: Please provide panel dimensions, array layout, tilt angle, max wind/snow load, and ground clearance for a precise and appropriate solution.

Q6: Do you offer OEM/ODM services? A: Yes, both OEM and ODM services are allowed. We have an experienced R&D team to assist with unique customized structural needs.
