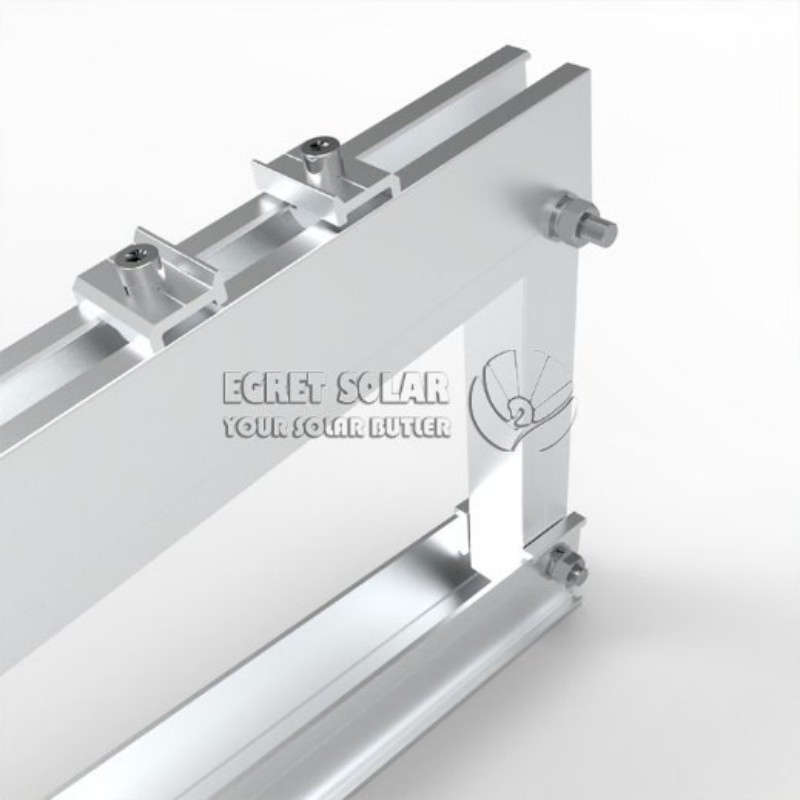

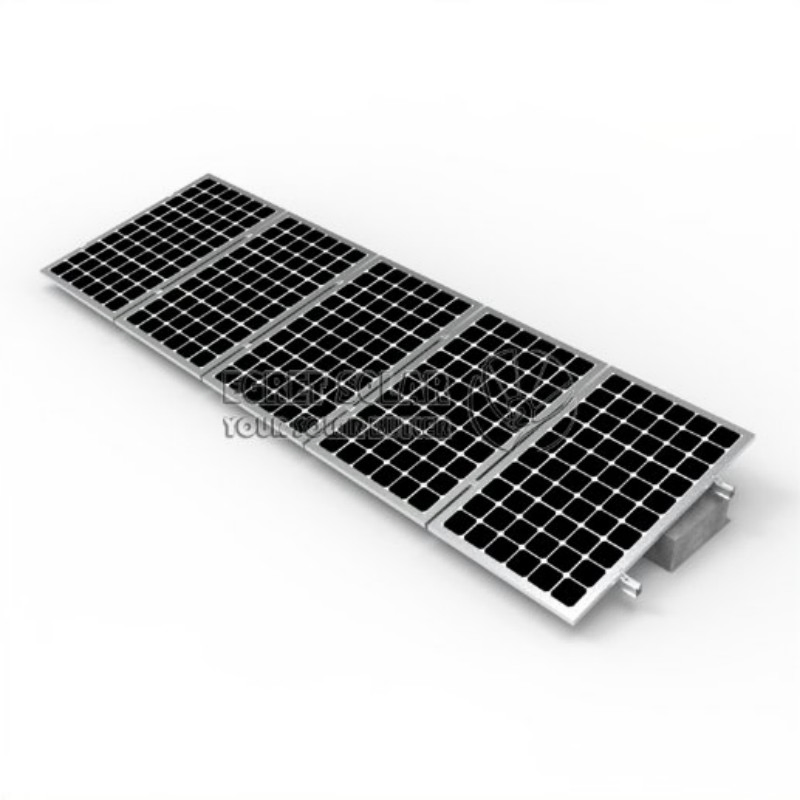

Easy Install Solar Ballasted Roof Mounting Systems Ballasted Mount

Customization: Available
Certification: ISO, CB, CE
Application: Home

Product Description

i

Basic Specifications

Product Name
Tripod Support
Mounting Type
Flat Roof
Material
Aluminum 6005-T5
Max Wind Speed
64m/S
Snow Load
up to 99cm
Tilt Angle
10/15/20/30/ Customized
Module Orientation
Landscape, Portrait
Building Height
up to 20m
Advantages
The Cheapest & Highly Stable
Certificate
AS/NZS 1170, JISC 8955:2017

Product Description

Solar Mounting Header

1. Easy Installation: The innovative solar rail and D-modules have greatly simplified the installation of PV modules. The system can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2. Great Flexibility: The solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility. Designed as a universal racking system, framed modules from all popular manufacturers can be used.

3. High Accuracy: Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4. Maximum Lifespan: All components are made of quality extruded aluminium, C-steel and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.

5. Guaranteed Durability: Provides a guarantee of 10 years on the durability of all components used.

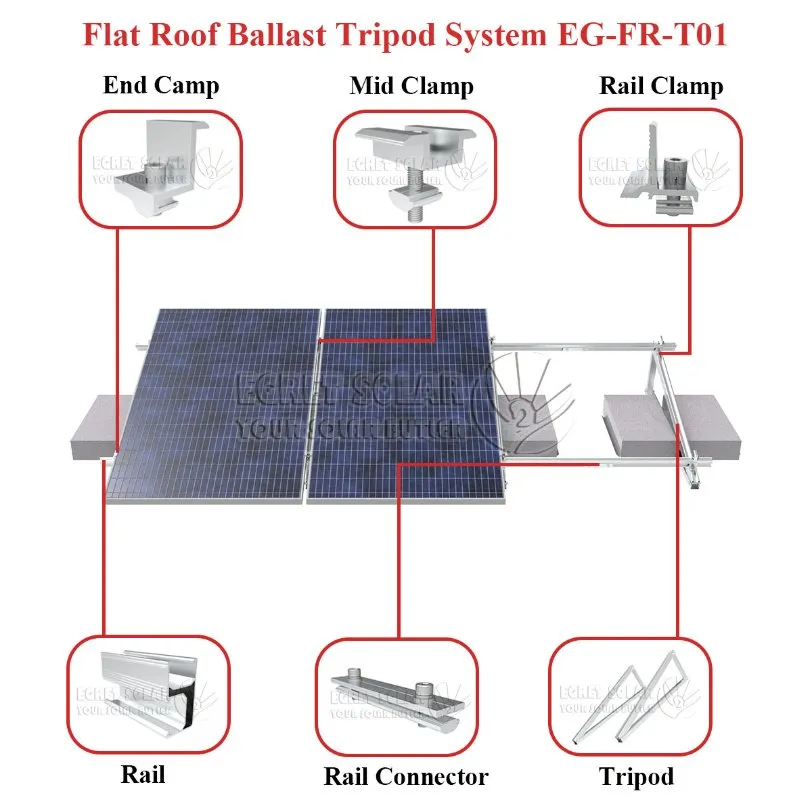

Solar Mount Detail 1

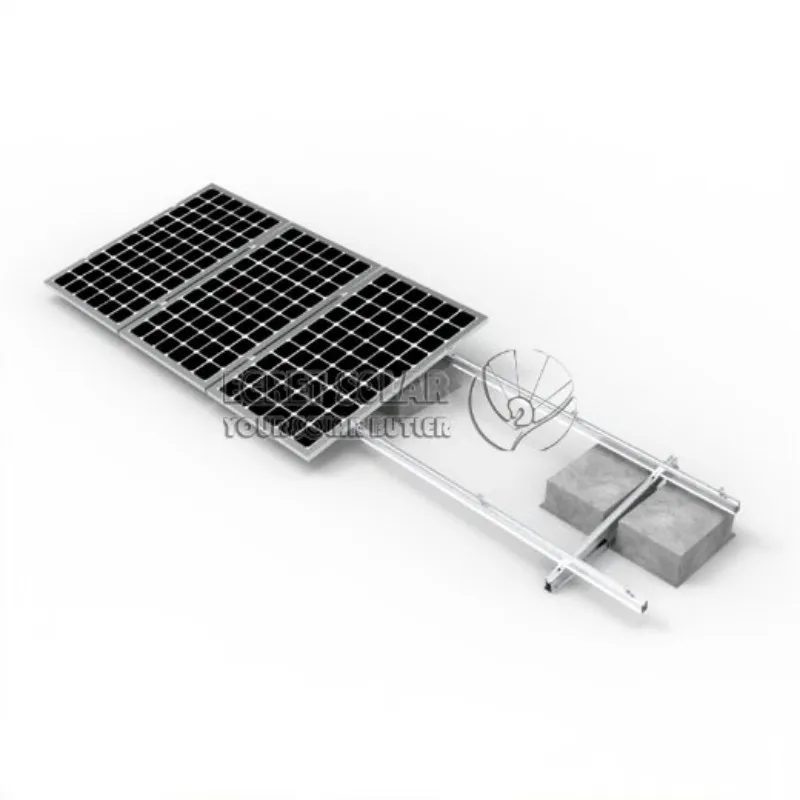

Solar Mount Detail 2
Installation SiteOpen Ground / Flat Roof
MaterialAL6005-T5 & SUS304
Panel OrientationLandscape / Portrait
Wind Speed60m/s
Snow Load1.2KN/M2
StandardJIS C 8955:2017; AS/NZS 1170; DIN1055

Key Benefits

Feature Image 1

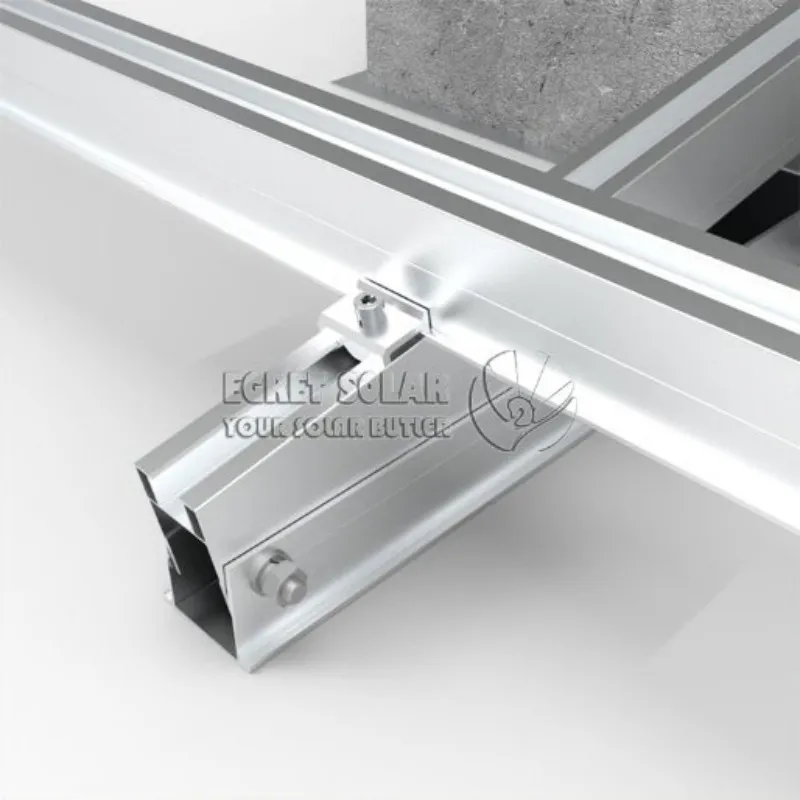

Feature Image 2

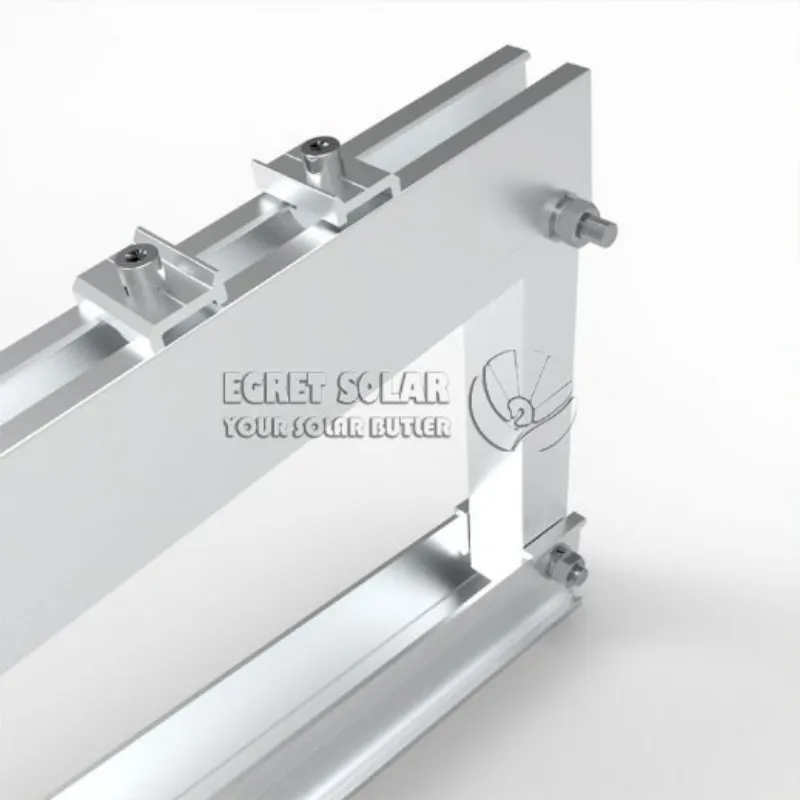

Feature Image 3

Easy installation: Parts have been highly pre-assembled at the factory to save installation time.

Safety and reliability: Structure is strictly checked and tested against extreme weather conditions.

Flexibility and adjustability: Smart design reduces installation difficulty under most conditions.

15-year warranty: Provides a 15-year warranty for the material and structure.

Technical Drawing
O

Application Showcase

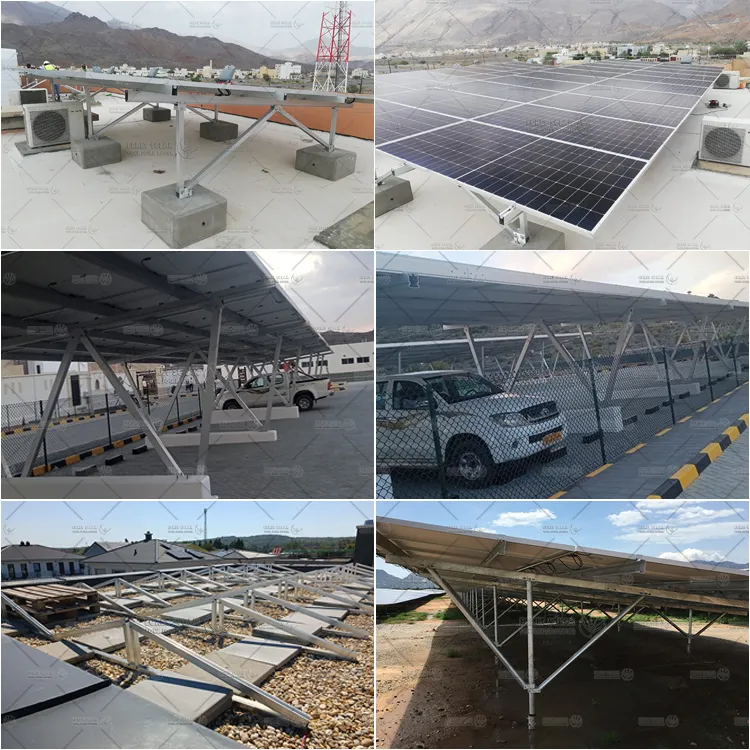

Application 1
Application 2
Application 3
Application 4
Application 5
?

Frequently Asked Questions

Q1: Are you a factory or a trading company?
A: We are a factory specialized in producing solar mounting structures in China. Our product categories include ground mounting, rooftop mounting, solar carports, and customized OEM solutions.
Q2: Can I get samples of the tripod support?
A: Yes, we are honored to offer you samples as per your request for quality evaluation.
Q3: What information do I need to provide for a quotation?
A: Please provide: 1. Panel quantity and dimensions; 2. Tilt angle; 3. Max wind and snow load; 4. Ground clearance; 5. Planned layout.
Q4: What is the main material of the mounting system?
A: The system is primarily made of high-quality Aluminum 6005-T5 and Stainless Steel SUS304 for maximum corrosion resistance and durability.
Q5: Is this system suitable for high wind areas?
A: Yes, the system is designed to withstand wind speeds up to 64m/s, making it suitable for most extreme weather conditions.
Q6: What is the warranty period for your products?
A: We provide a 10-15 year warranty on the material and durability of all mounting components.
