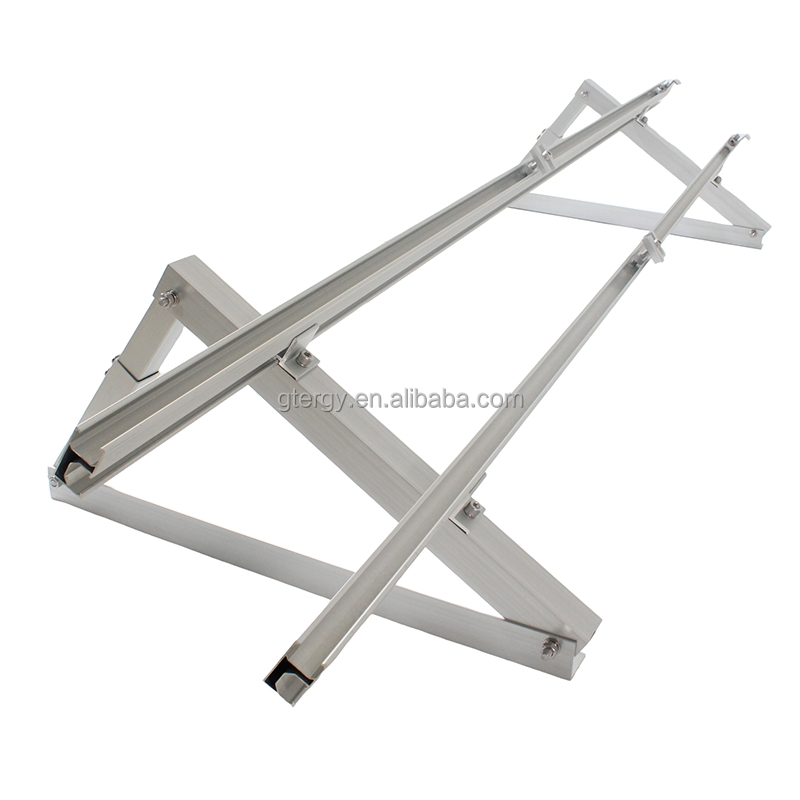

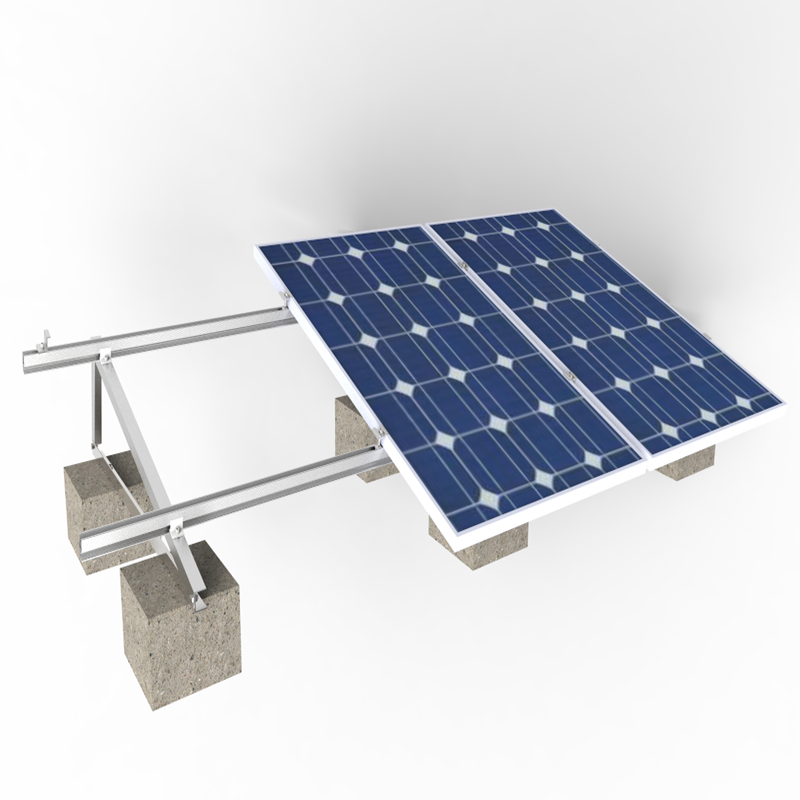

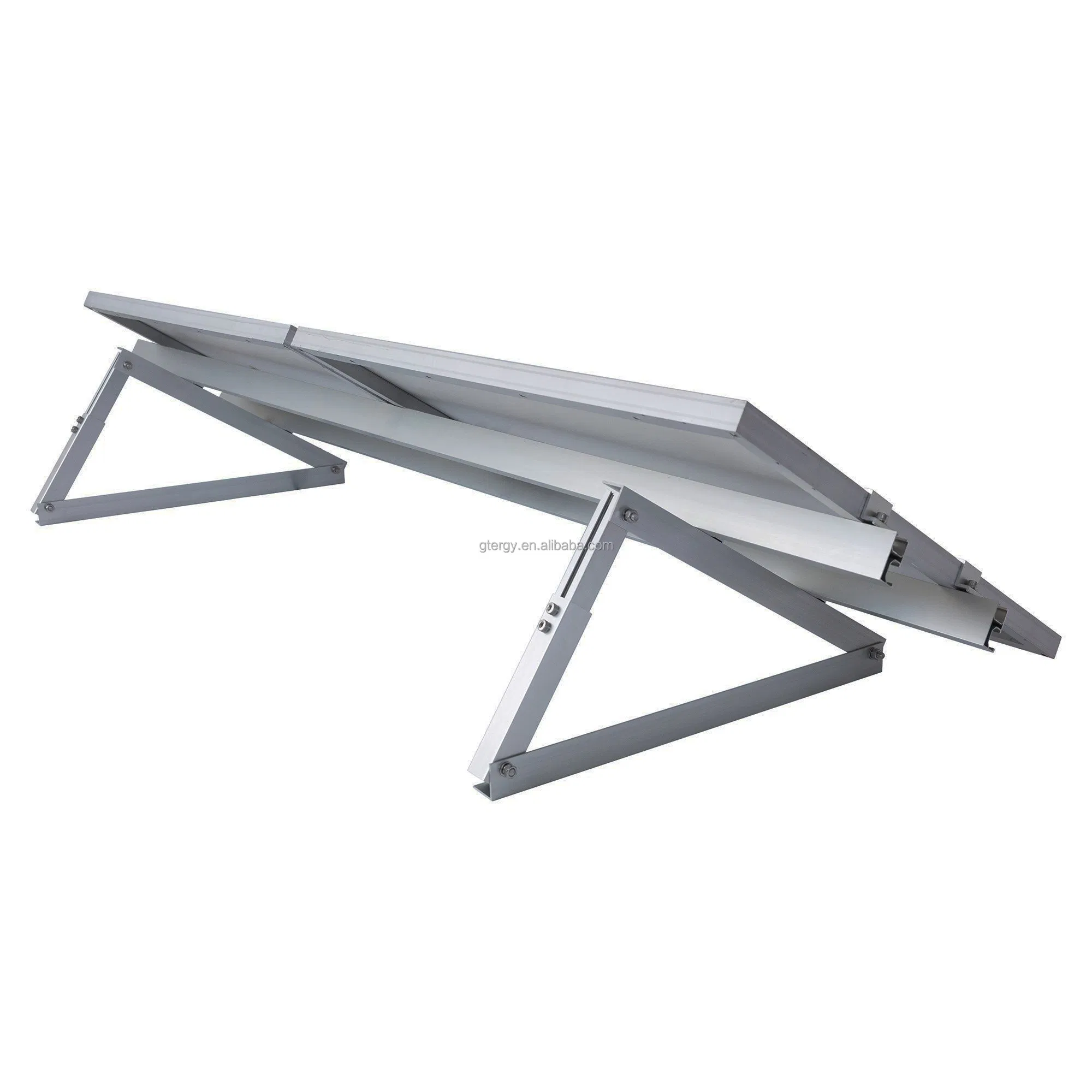

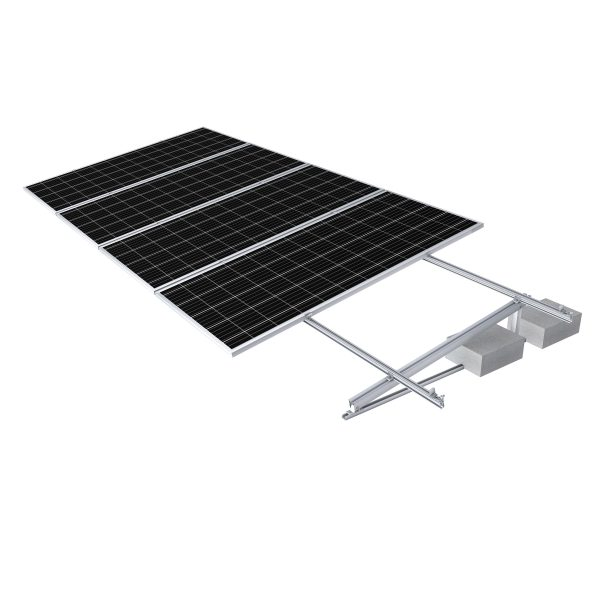

Adjustable Triangle Tilt Ballasted Flat Roof Solar Panel Mounting System PV Aluminium Kit

1 / 5

Adjustable Triangle Tilt Ballasted Flat Roof Solar Panel Mounting System PV Aluminium Kit

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Certification:

Certificate of Utility Model Patent

Application:

Commercial

Material:

Aluminum Alloy

Type:

Roof Bracket

Product Name:

Solar Adjustable Mounting System

Surface Treatment:

Anodizing 13 Um

Max Wind Speed:

up To 130mph(60m/S)

Design Snow Load:

up to 30PSF(1.4kN/M2)

Design Standard:

JIS C 8955:2011, GB50009-2012

Panel Direction:

Vertical or Landscape

Installation:

Tin Rooftop or Flat Concrete Open Space

Duration:

25 Years

Capacity:

50gw /Month

Product Parameters

TECHNICAL PARAMETERS
Material	Aluminum 6005-T5 & SUS304
Tilt Angle	10°-15°; 15°-30°; 30°-60°
Max Wind Speed	Up To 130Mph (60m/s)
Design Snow Load	Up To 30Psf (1.4kn/m2)
Design Standard	JIS C 8955:2011, GB50009-2012, 1BC 2009

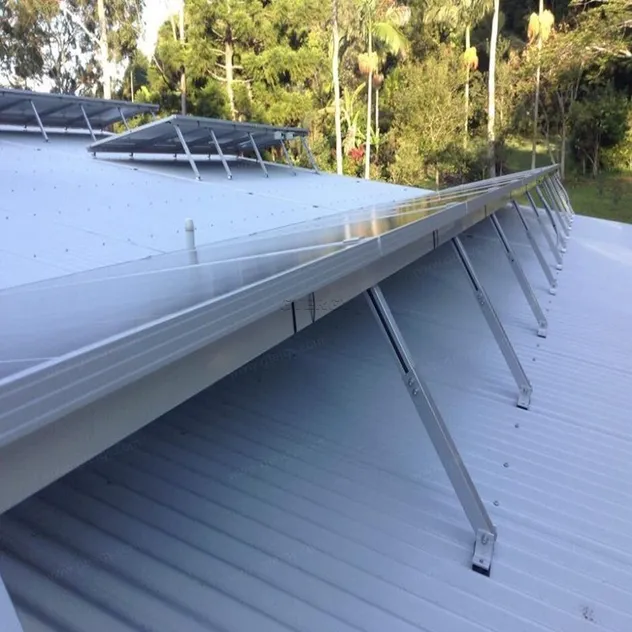

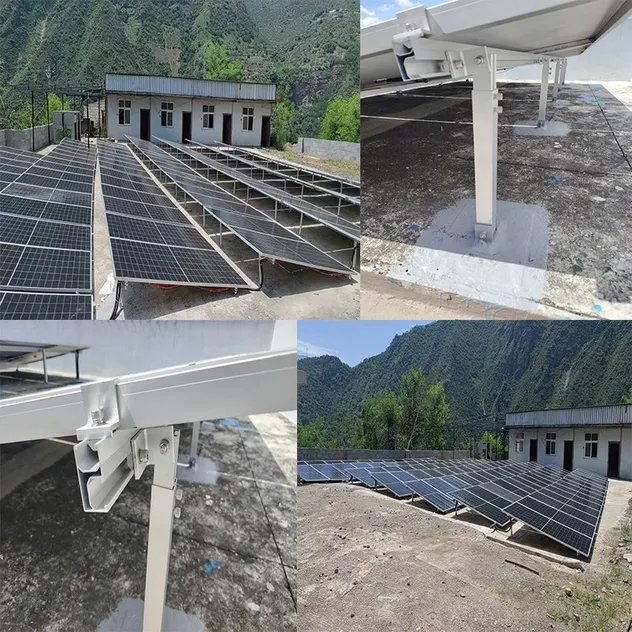

Installation	Tin Rooftop Or Flat Concrete Open Space
Warranty	12 Years
Duration	25 Years

Product Description

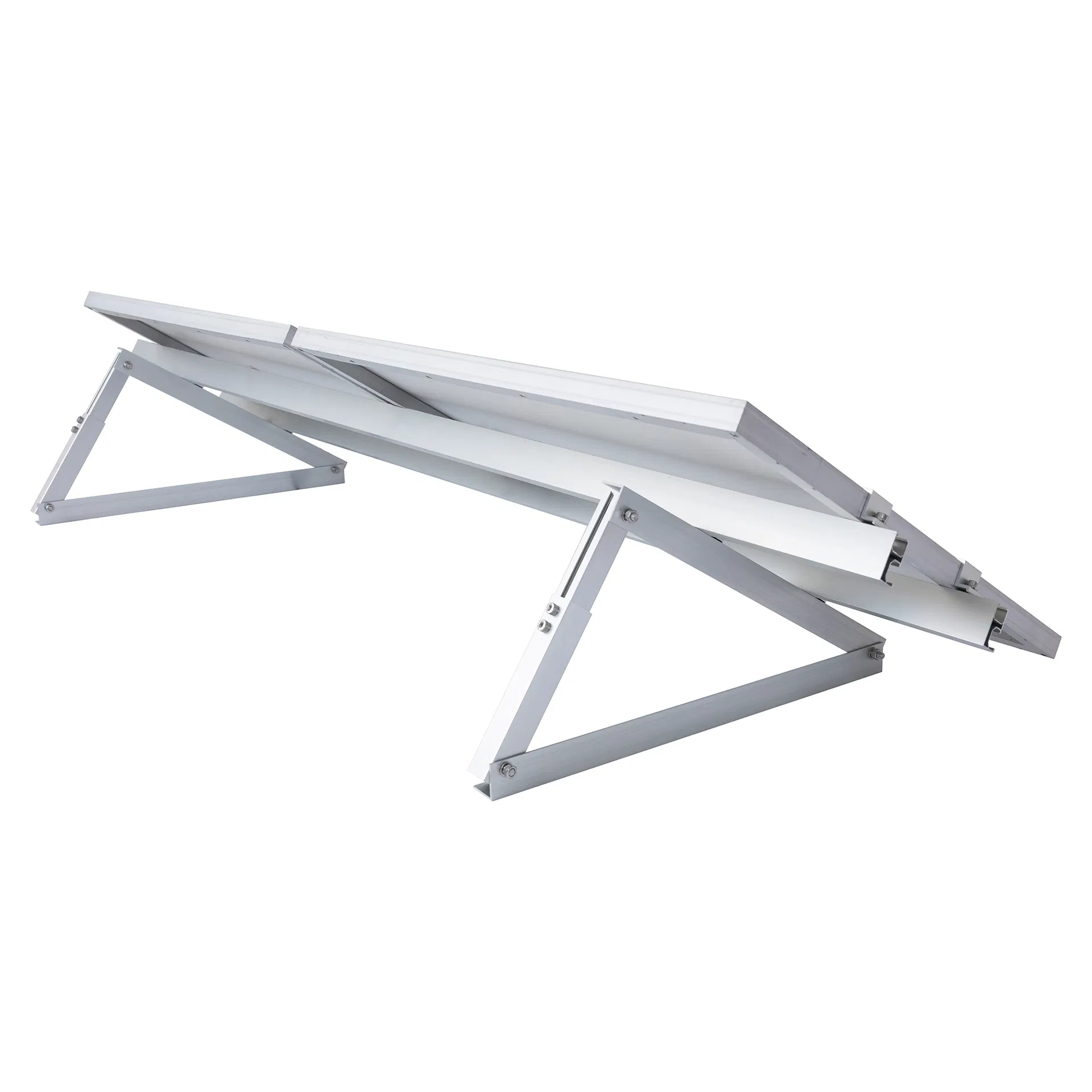

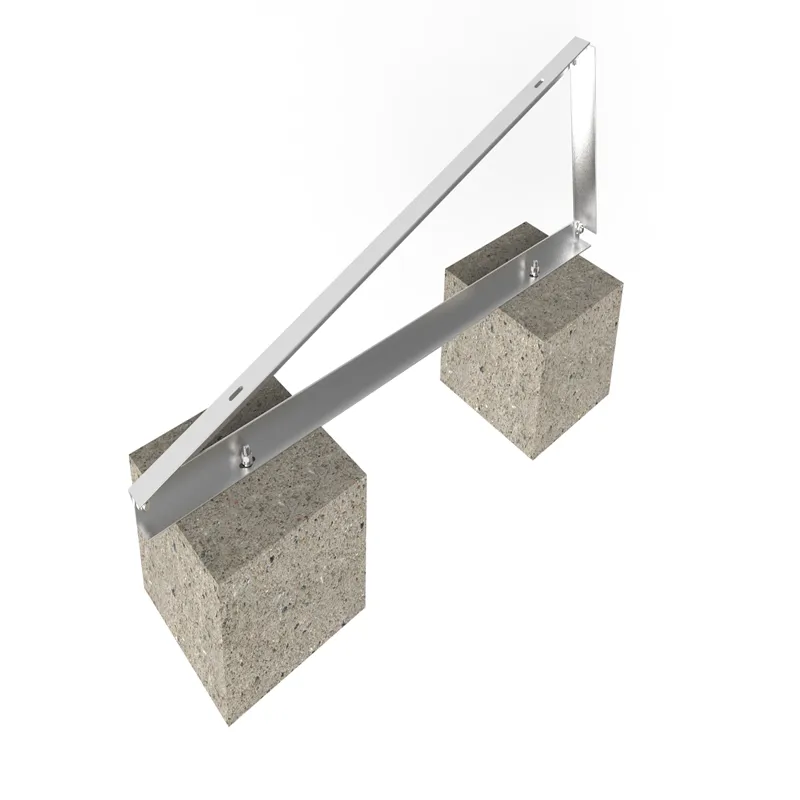

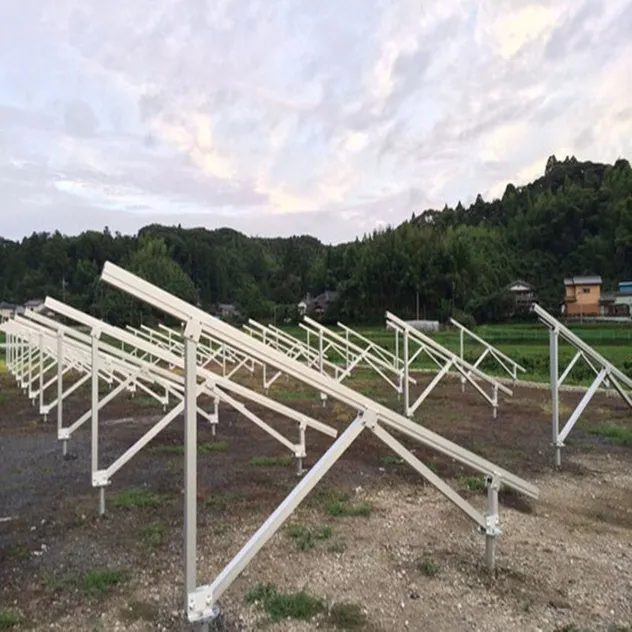

The aluminum alloy adjustable-angle triangular solar bracket is a lightweight, durable, and corrosion-resistant mounting solution designed for optimal solar panel positioning. Made from high-strength aluminum alloy, it allows flexible angle adjustments to maximize solar energy capture based on site-specific conditions. Its modular design ensures easy transportation and quick installation, making it suitable for flat roofs, ground-mounted systems, or other surfaces requiring precise tilt adjustments.

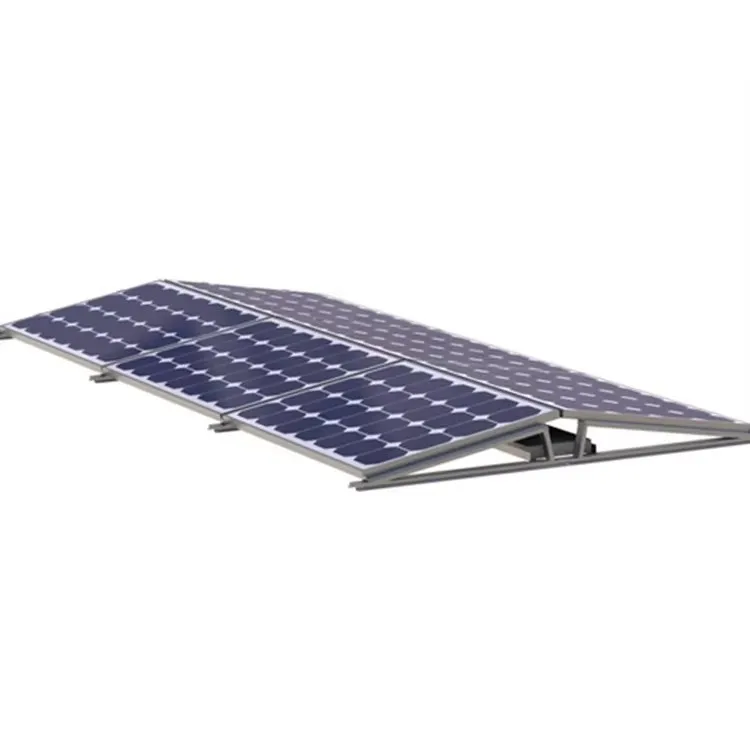

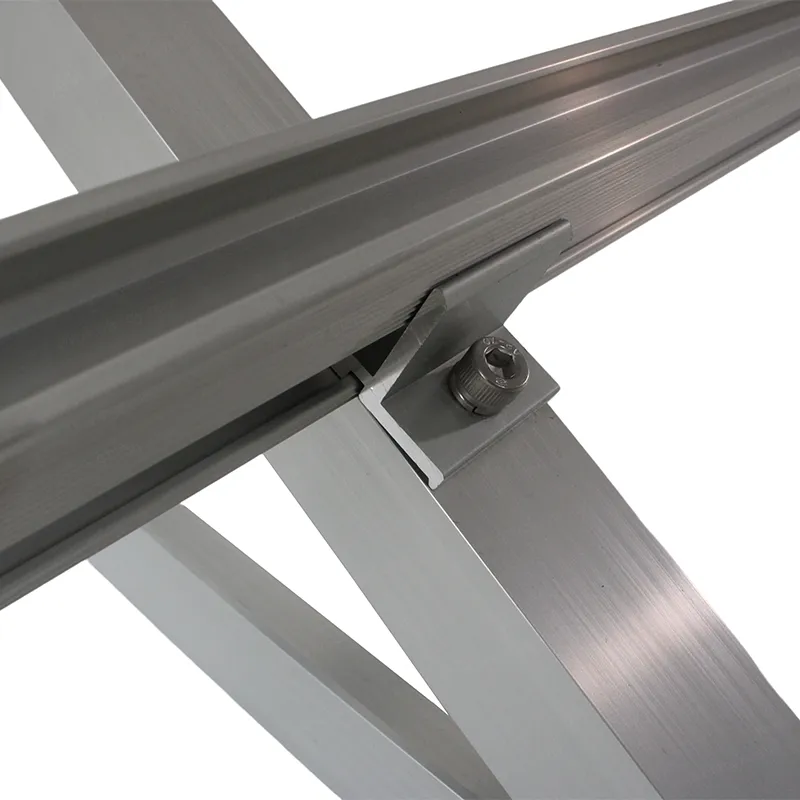

Detailed Photos & Advantages

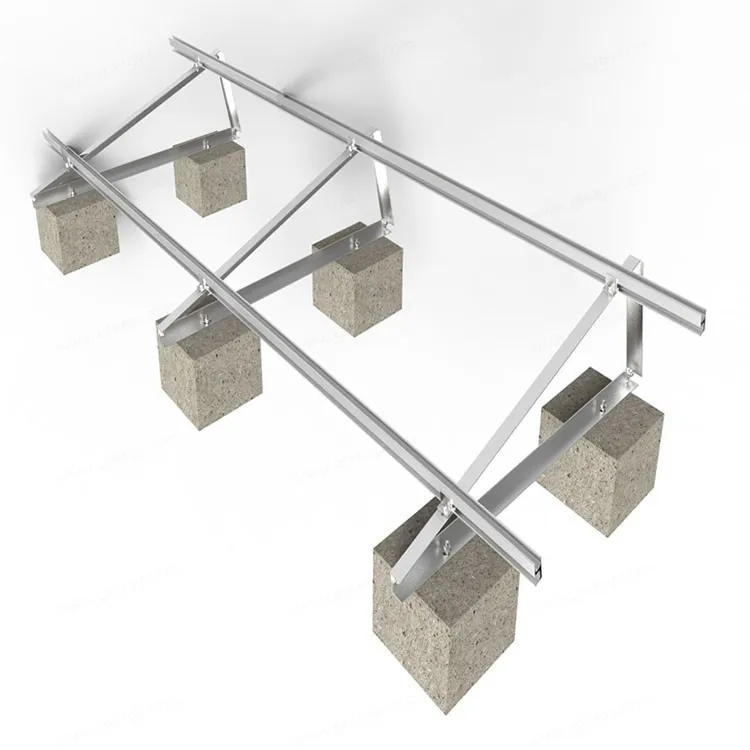

Triangle Kit Advantages:

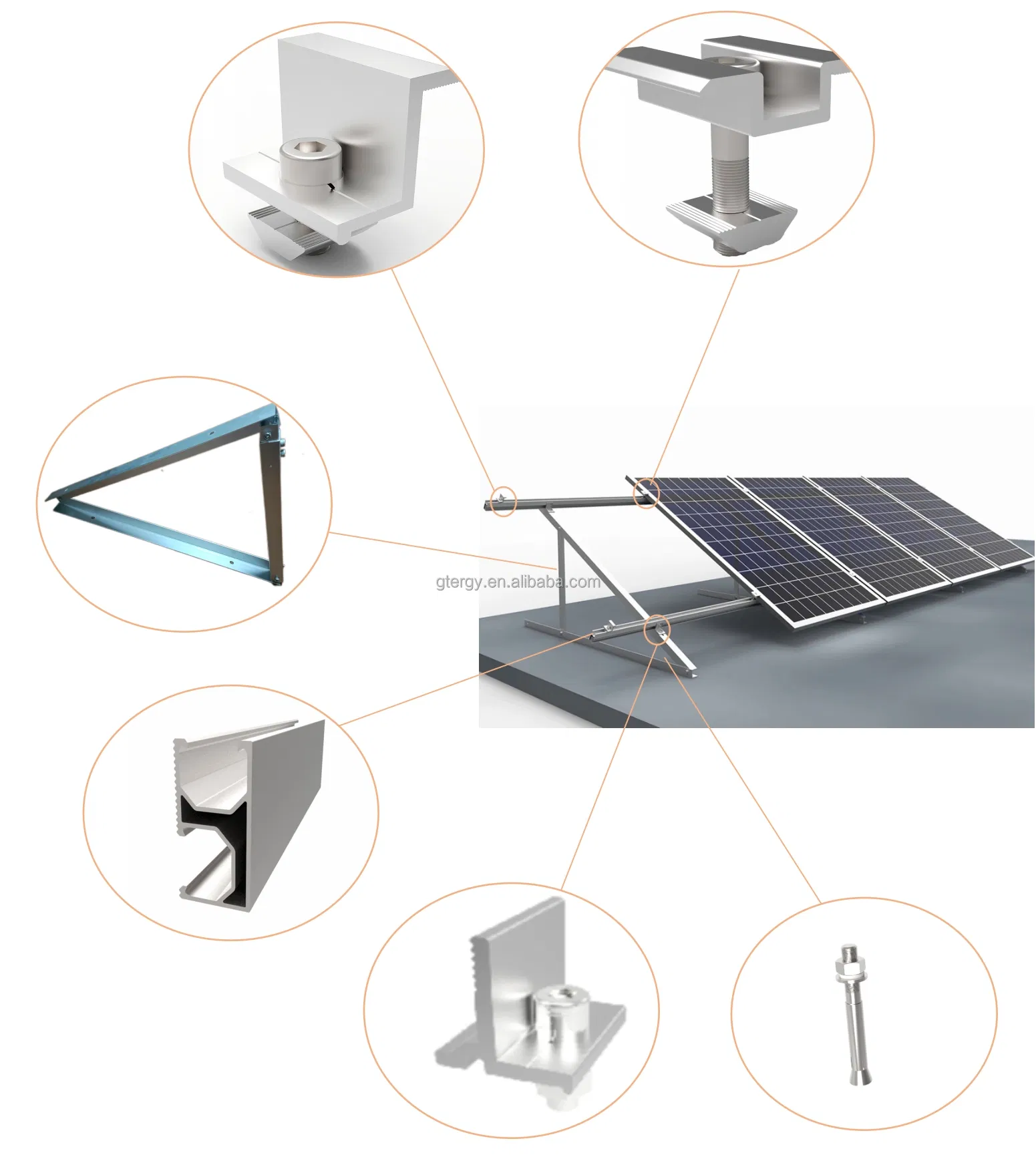

This system provides robust support and ensures ease of installation, ideal for various flat roof surfaces. The structure is engineered to withstand wind and snow loads, ensuring long-term stability. Modular design allows for flexible configurations and fast assembly.
