| Parameter | Details |
|---|---|

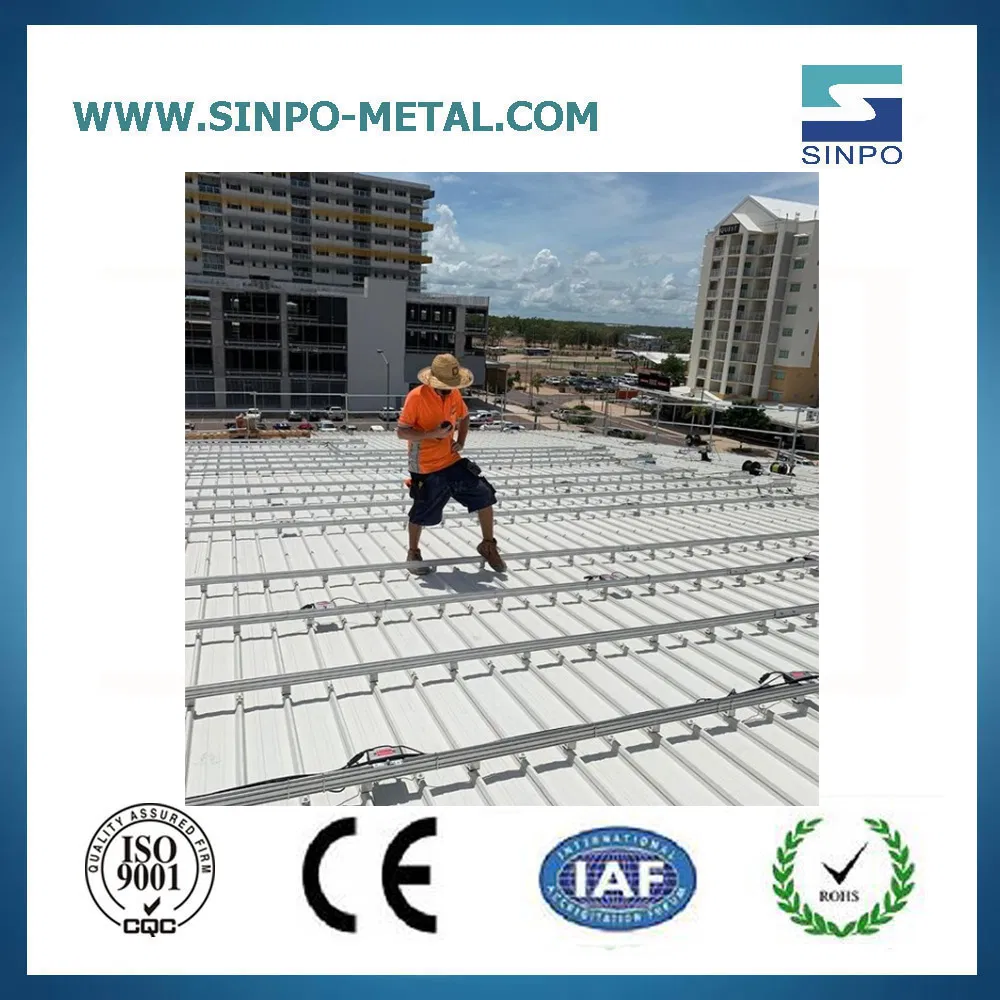

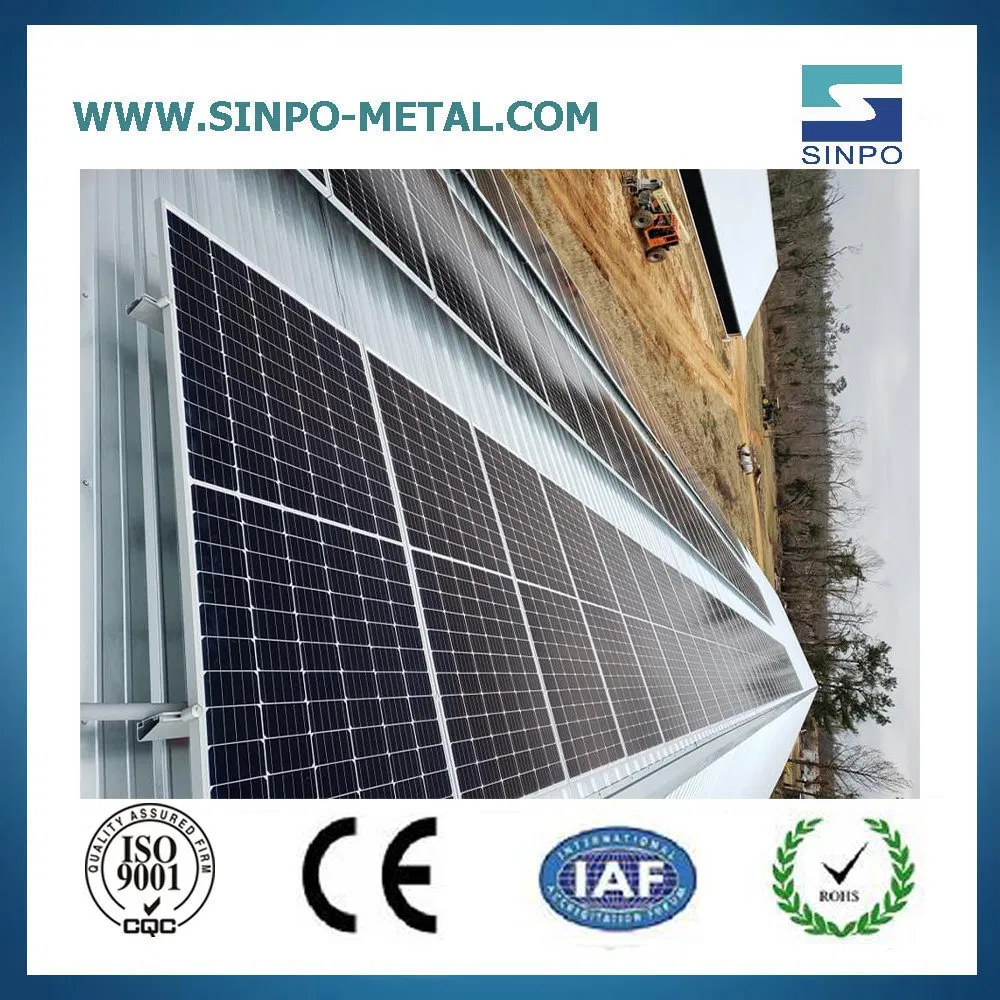

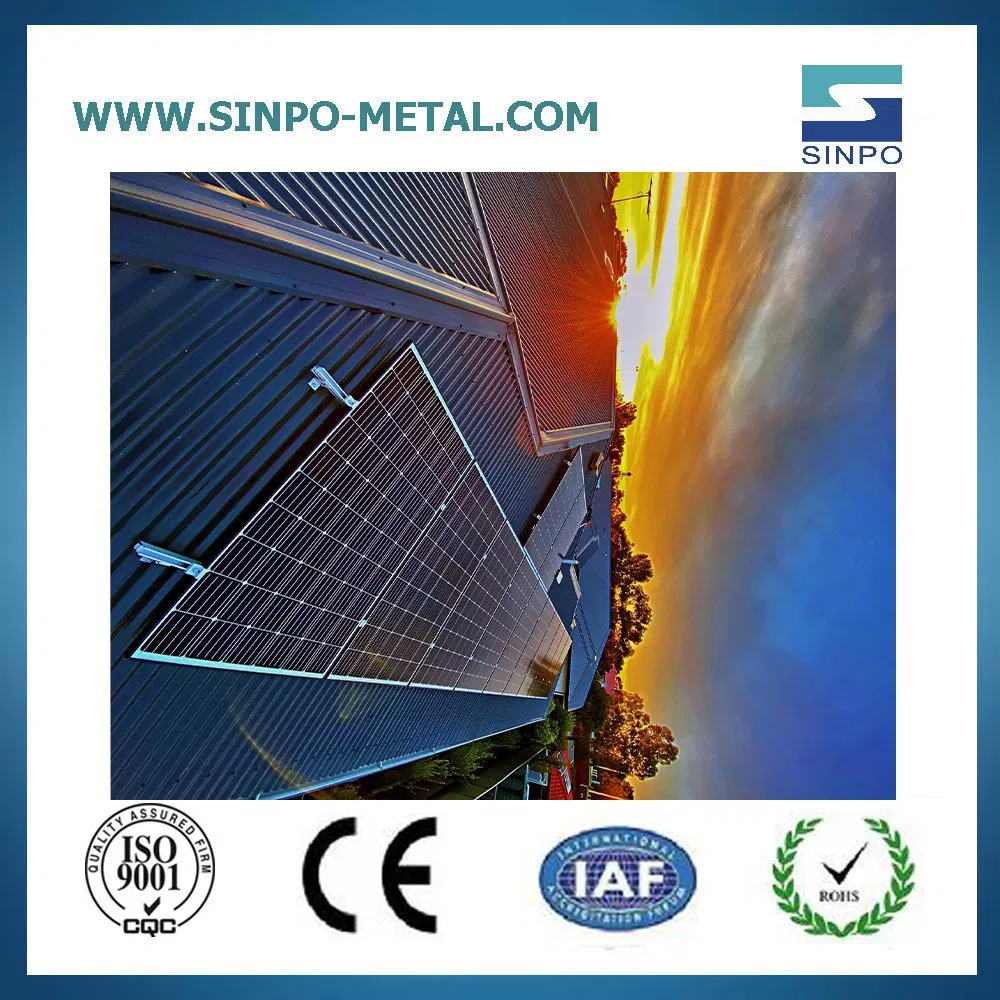

| Installation Site | Metal roof (According to requirements) |
| Material | Aluminum 6000 series |
| Fasten Material | Aluminum / Stainless Steel |
| Survival Wind Speed | < 60m/s |
| Design Snow Load | Up to 1.4KN/m² |
| Solar Panel Type | Framed or Frameless |
| Panel Orientation | Transverse or Vertical |

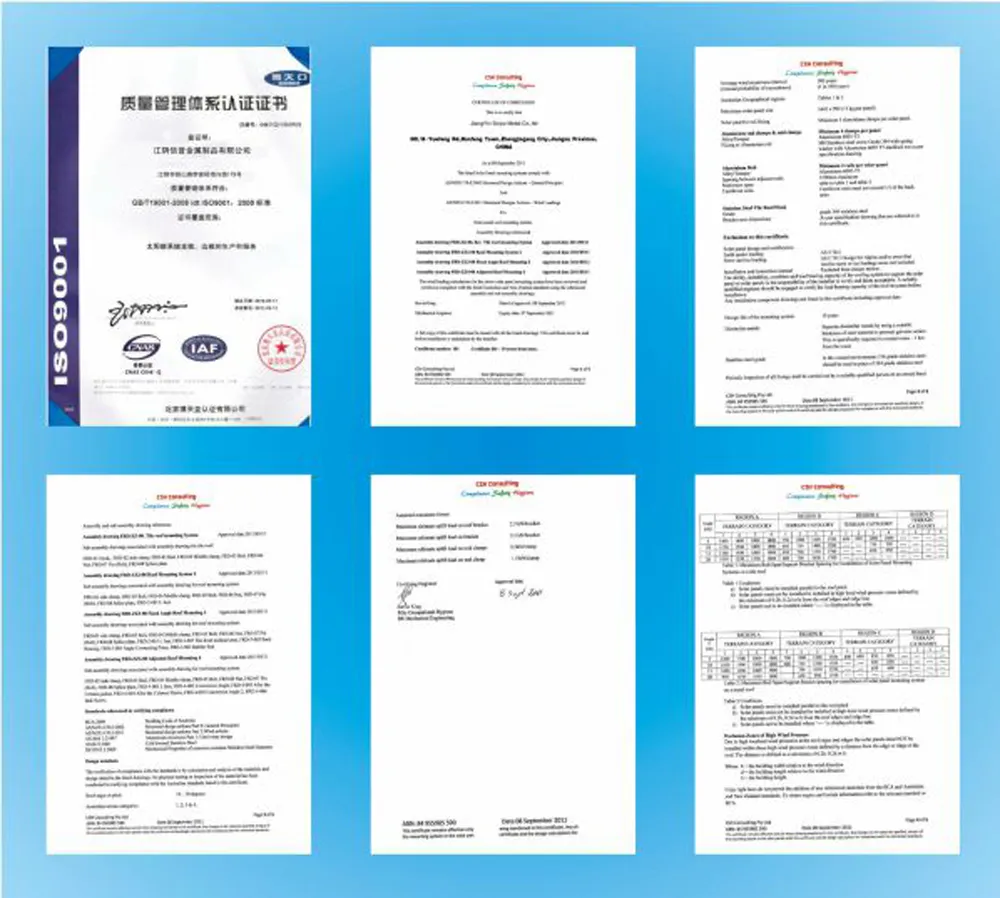

| Design Standard | CE; ISO9001; SGS |
| Duration | More than 20 years |

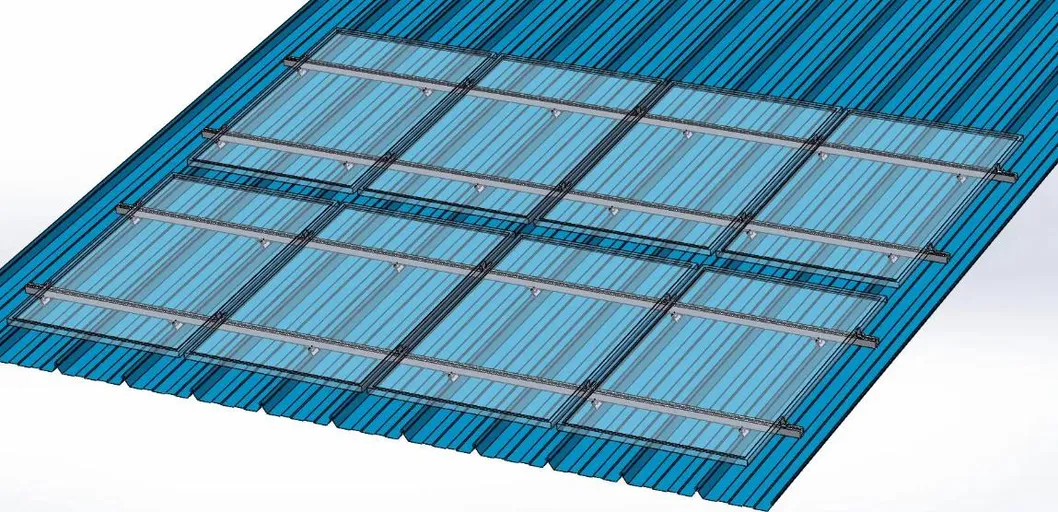

| NO. | Name | Size (mm) | QTY | Material |
|---|---|---|---|---|
| 1 | Clamp | - | 12 | AL6063-T5 |
| 2 | Rail | 40*40/30*40 | 4 | AL6063-T5 |
| 3 | Rail Joiner | 4 set screw | 2 | AL6063-T5 |
| 4 | Mid Clamp | 30-47-60 | 6 | AL6063-T5 |
| 5 | End Clamp | W40-60-16 | 4 | AL6063-T5 |
| 6 | Hexagon Socket Screw | M8*25 | 24 | SS304 |
| 7 | T Bolt | M8*25 | 12 | SS304 |
| 8 | T Bolt | M8*35 | 10 | SS304 |

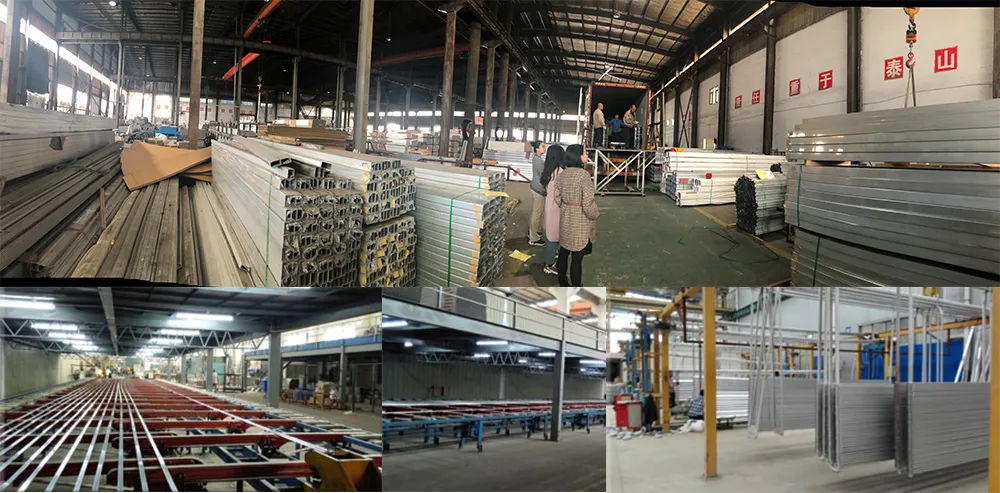

We are a professional manufacturer of aluminum products with 20 years of experience, supplying over 15 countries worldwide. We specialize in custom designs and offer a variety of ready-made solar mounting solutions tailored to fit different market trends and national standards.
Our engineering team conducts extensive research to provide the best possible products for your region. We manage and schedule all aspects of production and shipping to ensure your requirements are met efficiently.
To provide the right system, please provide:
