Solar Ground Mounting Structure Single Pile C Pole Solution

1 / 5

Solar Ground Mounting Structure Single Pile C Pole Solution

Customization:	Available
Condition:	New
Certification:	Asnzs1170/UL/SGS

Send Inquiry

Product Description

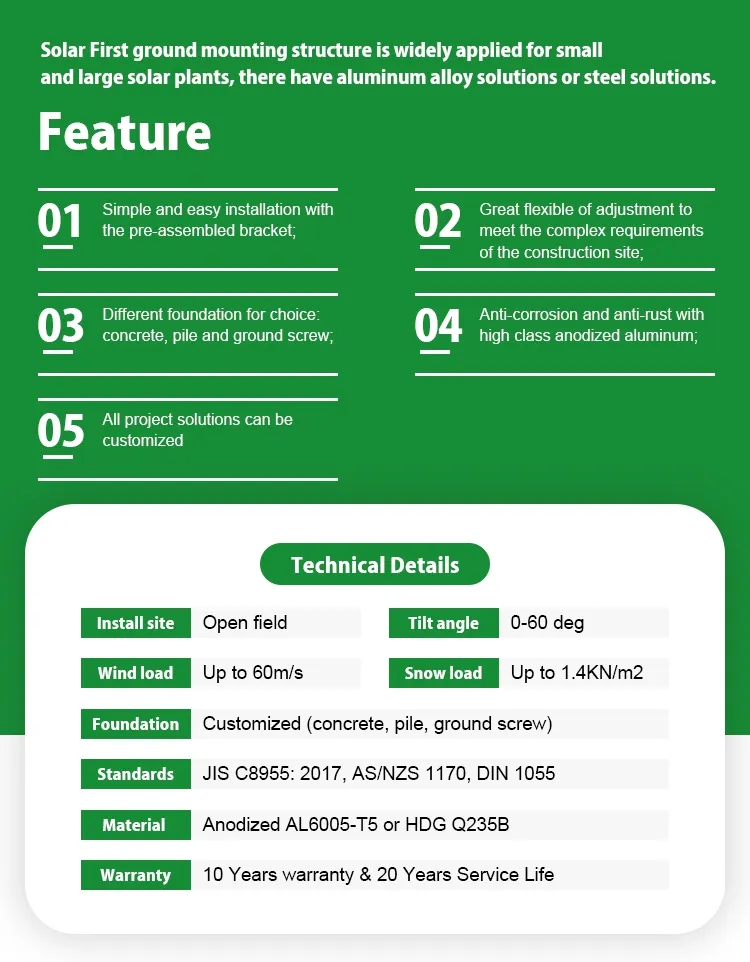

Technical Specifications

Model NO.

SF-GM-03

Application

Solar Power System

Material

Galvanized Steel/Anodized Aluminum

Warranty

25 Years Service Time

Wind Load

60m/S

Type

Pile Solar Ground Mounting

Snow Load

1.4kn/M2

Installation Site

Open Field

Foundation

Ramming Pile

Production Capacity

10,000,000W/Month

Product Overview

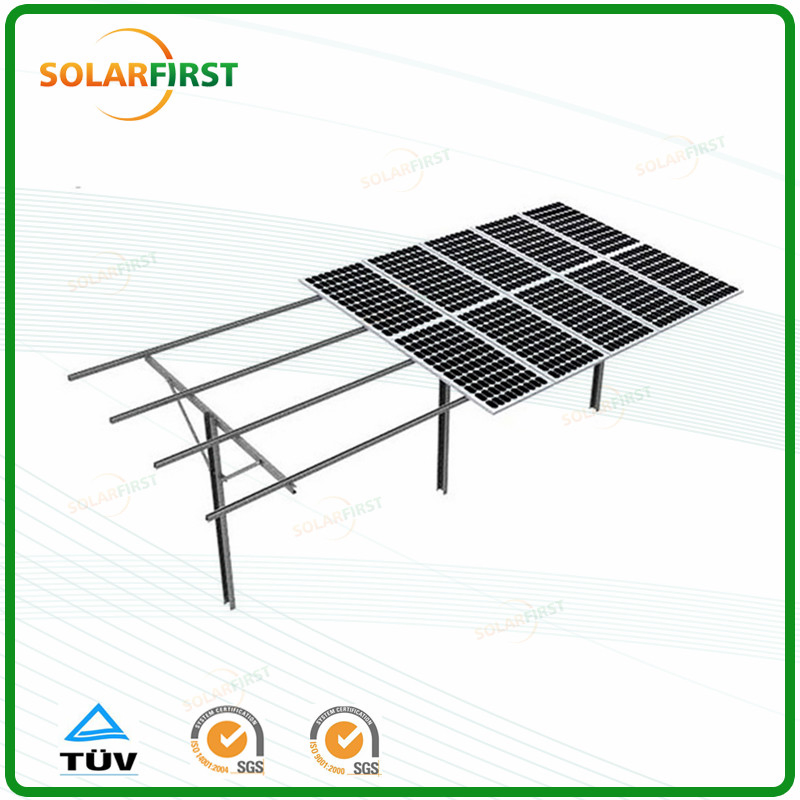

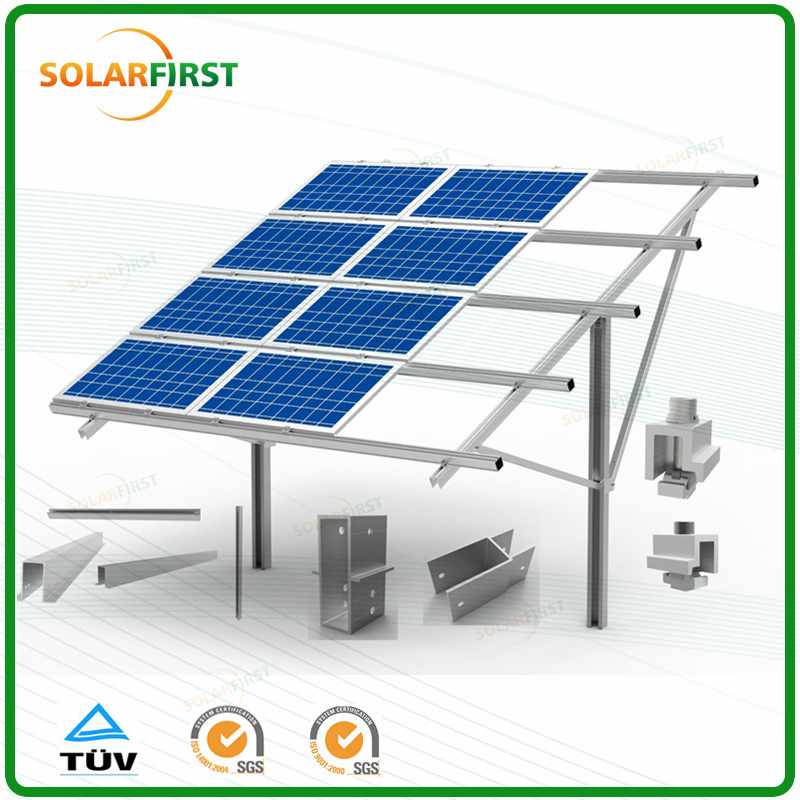

Solar Ground Mounting Structure Single Pile C Pole Solution

The Pile Solar Ground Mounting System is specifically engineered for large commercial solar plants and public utility projects. This robust single-column mounted system provides a versatile solution compatible with both framed and frameless solar modules.

By utilizing a high-grip infrastructure, the system significantly enhances wind resistance and stability in open field environments. To optimize efficiency, the main components feature a folded structure that is approximately 40% pre-assembled at the factory, drastically reducing onsite installation time and labor costs.

Frequently Asked Questions

1. What are the primary materials used in the SF-GM-03 mounting system?

The system is constructed using high-quality Galvanized Steel and Anodized Aluminum to ensure maximum durability and corrosion resistance in outdoor environments.

2. What is the expected service life and warranty?

This solar mounting solution is designed for long-term use with a 25-year service time warranty, making it a reliable choice for utility-scale investments.

3. How does the system handle extreme weather conditions?

It is engineered to withstand wind loads up to 60m/s and snow loads up to 1.4kn/m2, ensuring stability during severe weather.

4. Does the system require a concrete foundation?

While it can be used with concrete foundations, it is specifically optimized for Ramming Pile foundations, which are ideal for open field installations.

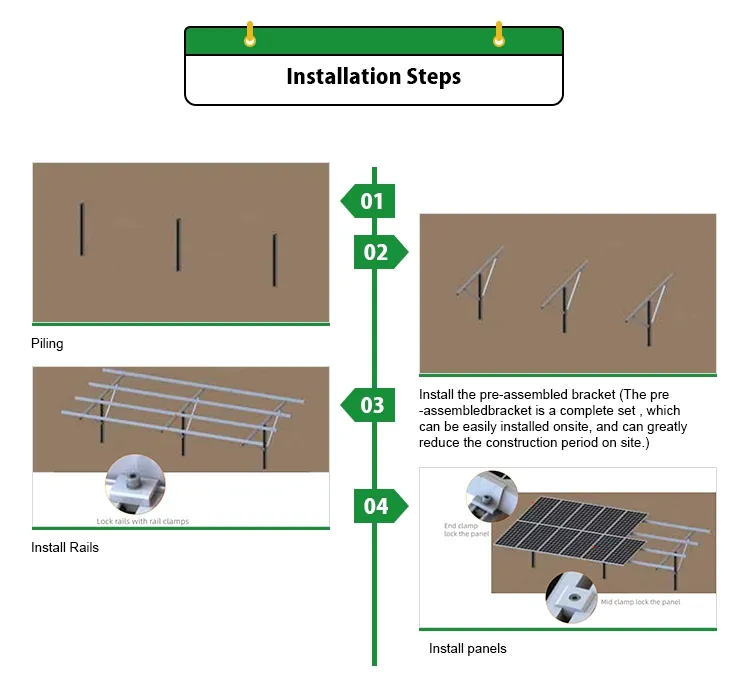

5. How much of the system is pre-assembled?

To save on-site labor costs and time, approximately 40% of the main components are pre-assembled at the factory as a folded structure.

6. Is this system compatible with frameless solar modules?

Yes, the single column mounting design is versatile enough to support both traditional framed modules and frameless solar modules.
