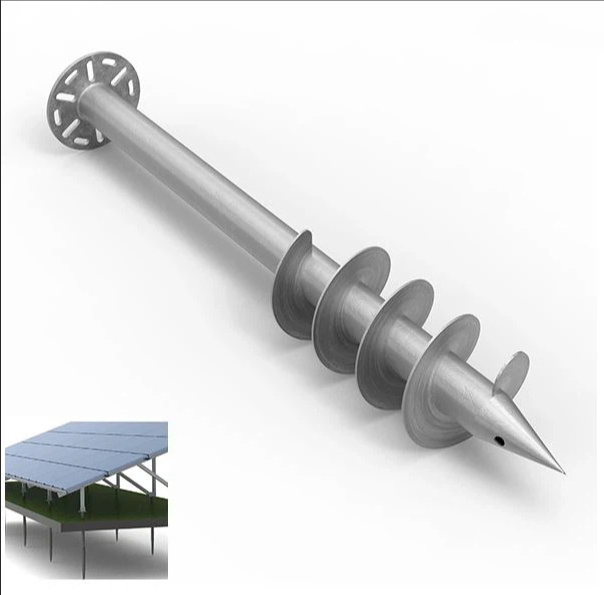

Pole Mounting Installation Solar Ground Mounting System PV Mounting Structure

Basic Information

Model NO.

APV077

Certification

CE

Application

Industrial

Material

Aluminum Alloy

Type

Ground Bracket

Thickness of Module

30-50 mm

Wind Load

60 M/S

Snow Load

1.4 Kn/M2

Foundation

Ground, Balcony, Roof, Wall

Finishing

Clear Anodized/Mill Finish

Capacity

3000 Tons / Month

Specification

6005 / T5

Product Description

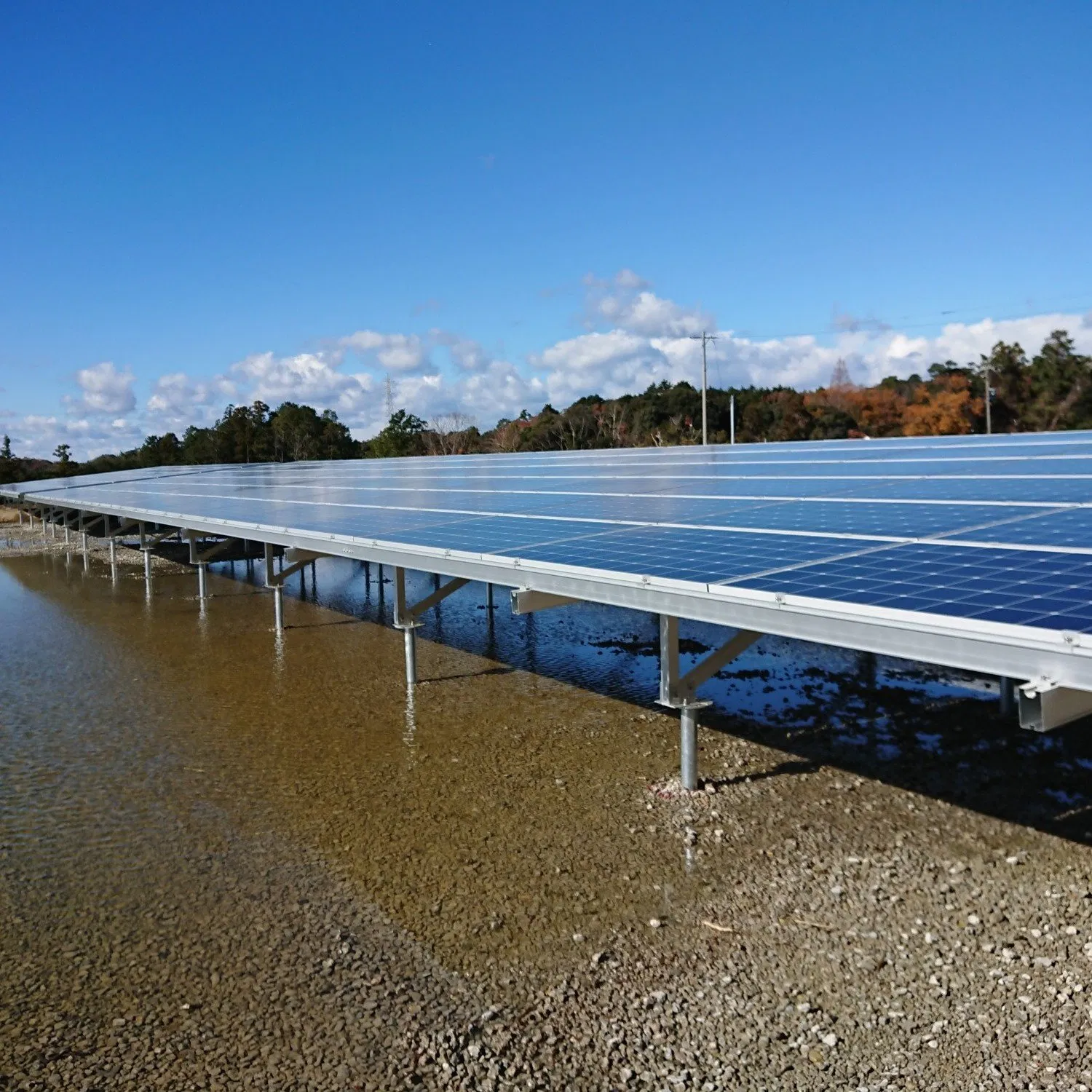

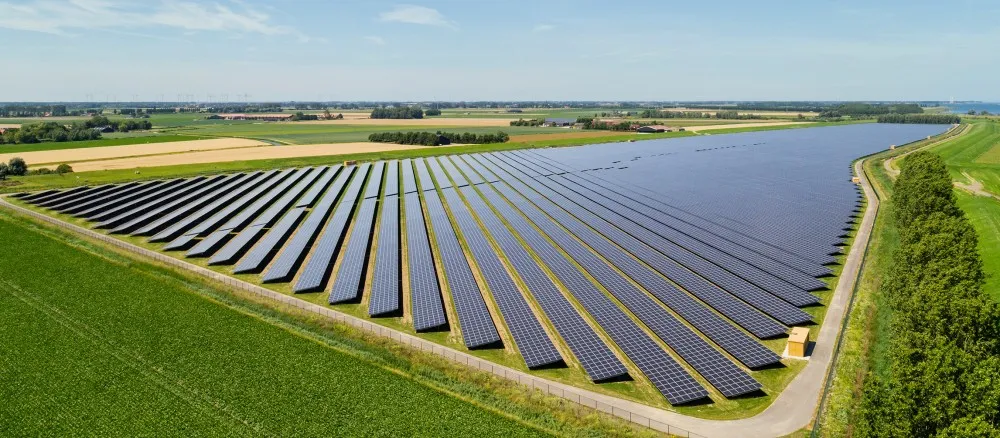

Ground mount solar racking systems are essential for large-scale projects like commercial PV plant power stations. These systems typically consist of metal structures and concrete bases designed to fix solar panels securely.

System Classifications:

Fixed Tilt System: The most economic and simple solution with minimal maintenance.
Single Axis Tracking: Uses an electric motor to track the sun's movement throughout the day in one direction.
Dual-axis Tracking: Maximizes power production by tracking the sun both horizontally and vertically.

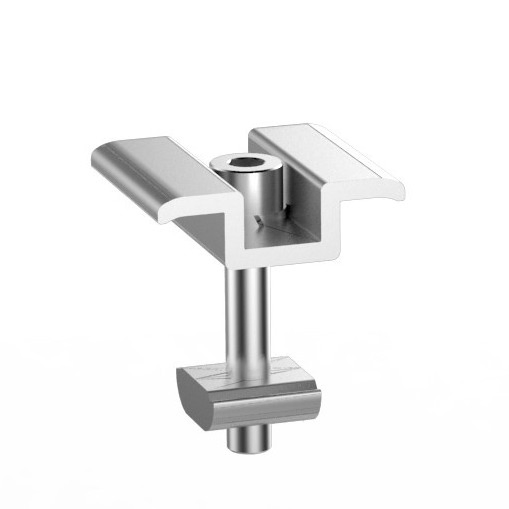

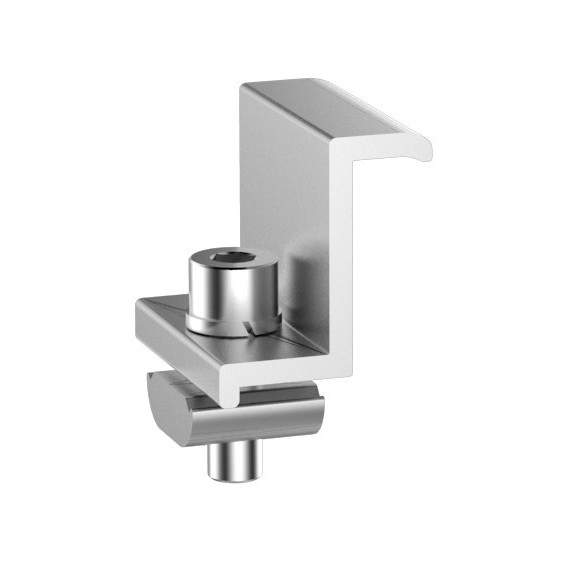

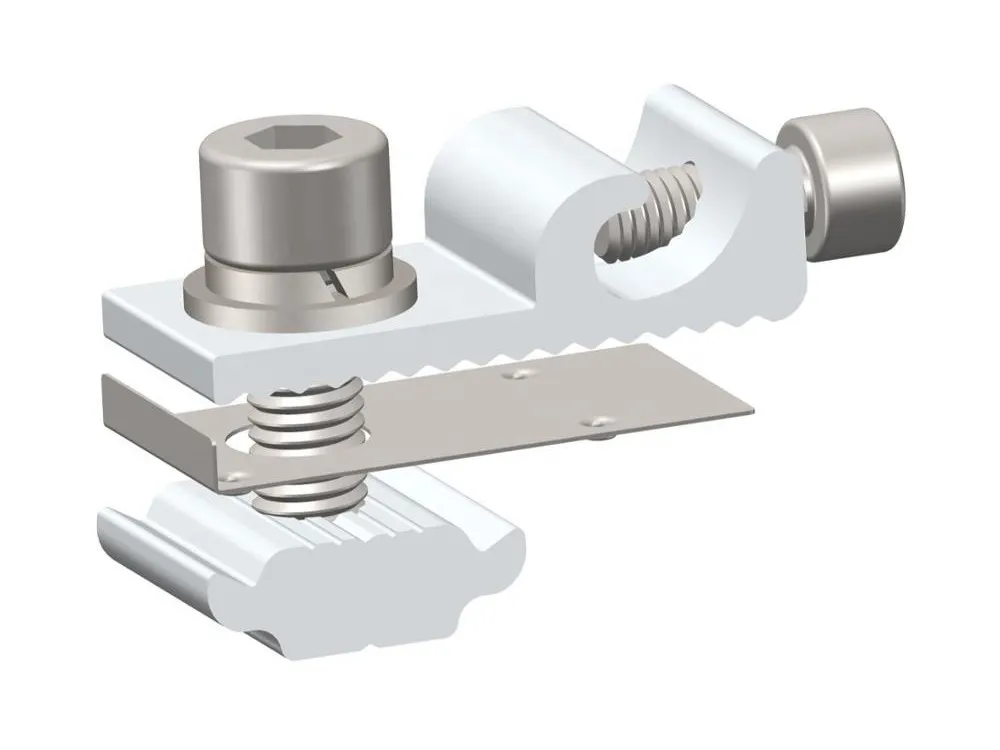

Our photovoltaic panel racking system consists of three primary components: the base (foundation support), the structure (tailor-made rack), and clamps (fasteners). The durability and reasonable design ensure the system withstands harsh weather while maintaining optimal sunlight exposure.

Key Advantages:

✅ Wide Adaption: Installable on various terrains, including uneven or sloping surfaces.
✅ Durability: Made from 6005 T5 anodized aluminum alloy to resist high winds and heavy snow.
✅ Economic: Lightweight materials reduce labor costs and installation time.
✅ Sustainability: Minimizes disruption to existing structures by avoiding rooftop-only requirements.

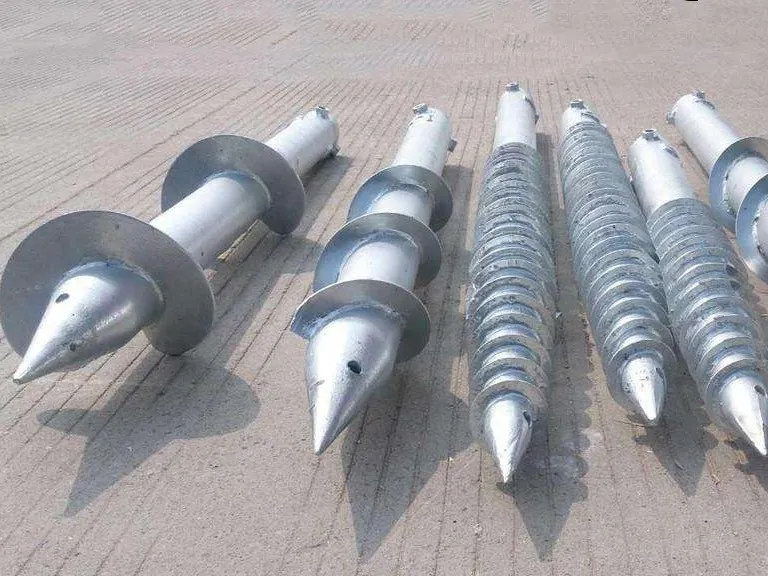

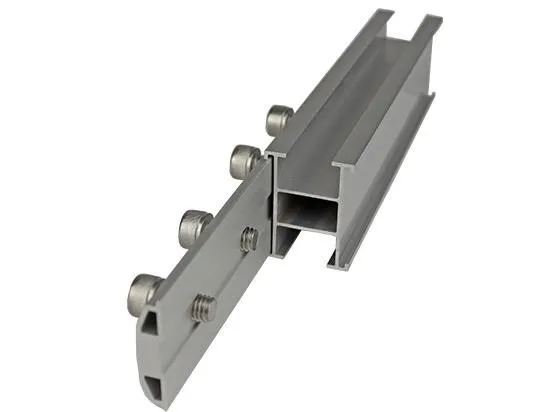

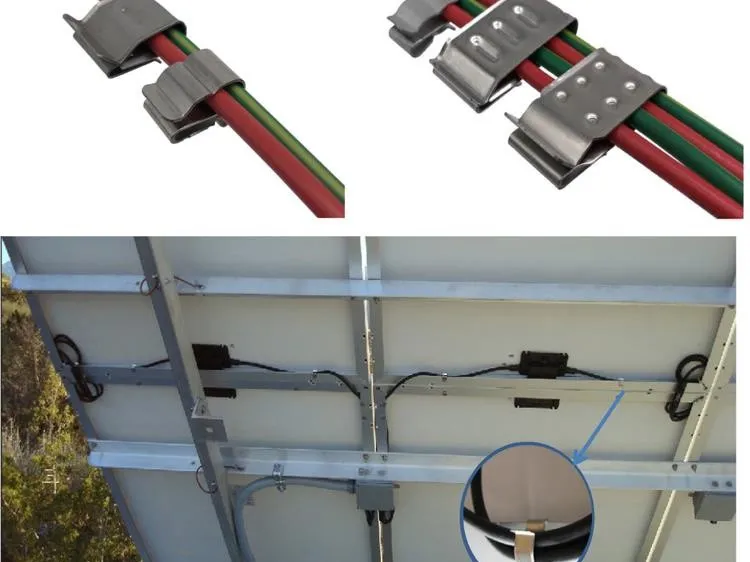

Detailed Photos

Product Parameters

Mount Type	Customized mounting system
Standard	AS/NZS 1170
Applicable Module	Framed or frameless panel
Wind load	Up to 218Kmph (60m/s)
Snow load	Up to 30psf (1.4KN/m2)
Module Width	751 ≤ A ≤ 1313 mm
Adjustable Angle	15~50°
Material	Aluminum alloy 6063 T5
Warranty	10 years

Packaging & Shipping

Why Choose Our Solutions

⭐ Experienced: Years of expertise in solar mounting generation and market needs.
⭐ High Quality: Advanced technology using SS304 and 6005 T5 aluminum for maximum stability.
⭐ Professional Service: Comprehensive support including technical consultation and maintenance guidance.
⭐ Global Network: Proven track record with products sold across the USA, Europe, Australia, and Asia.

Frequently Asked Questions

What materials are used for ground solar mounting systems?

Mainly 6005 T5 aluminum alloy extrusion, carbon steel, and zinc-magnesium-aluminum alloys.

What are the different installation ways for solar panels?

Common methods include ground mounting, roof racking, rail fixation, floating systems, and BIPV.

What factors must be considered before installation?

Geographic location, local weather history, wind/snow loads, panel size/weight, and required tilt angle.

How long does the installation process typically take?

It depends on the method; piling is faster while concrete foundations require several days to cure. Usually, a cycle lasts from a few days to a few weeks.

What is the typical warranty for these racking systems?

Generally, warranties range from 15 to 25 years depending on the specific materials and installation methods used.

What kind of maintenance is required?

Regular cleaning of panels and periodic inspections of bolts, nuts, and fasteners, especially after severe weather events like typhoons.
