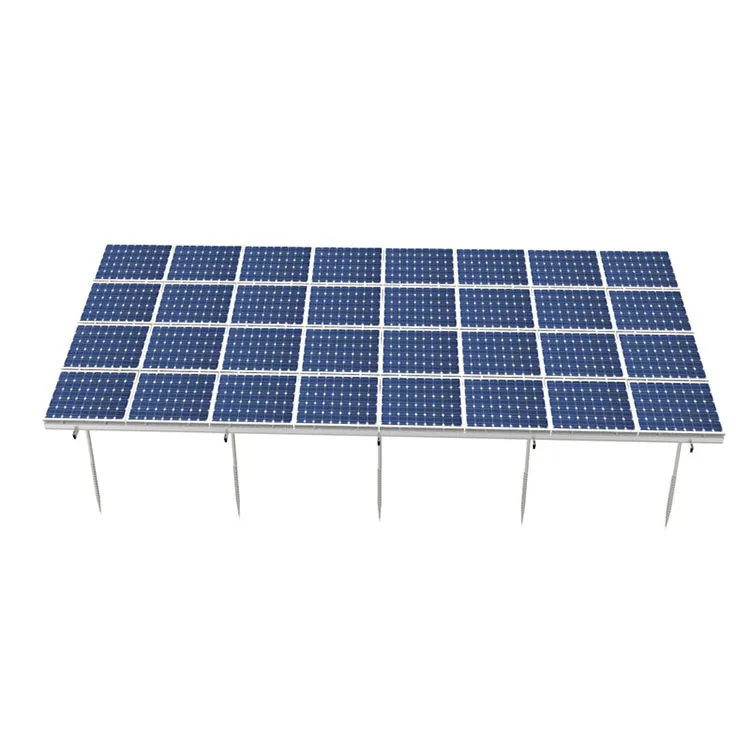

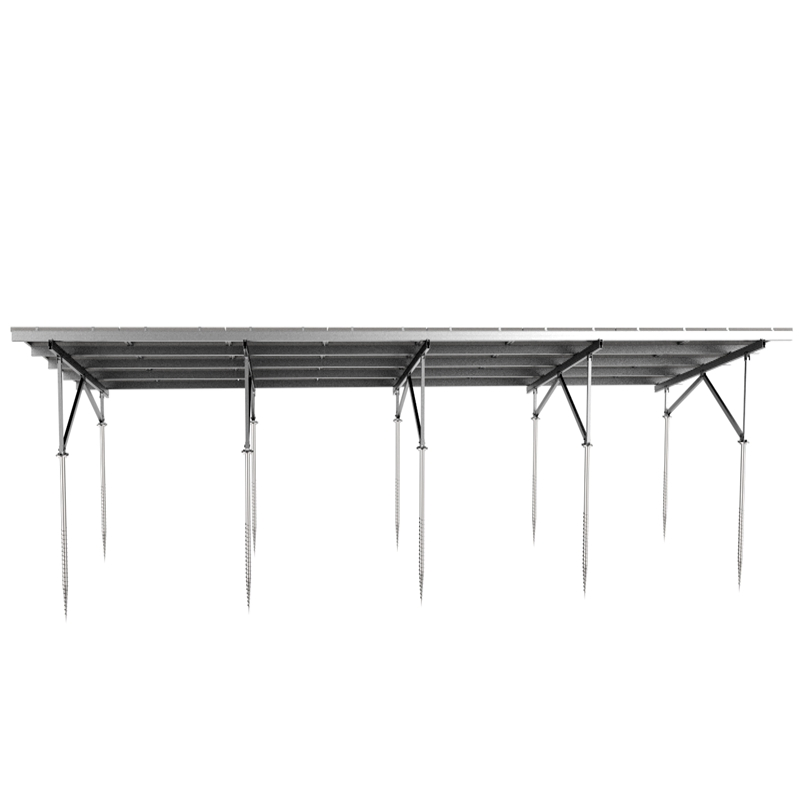

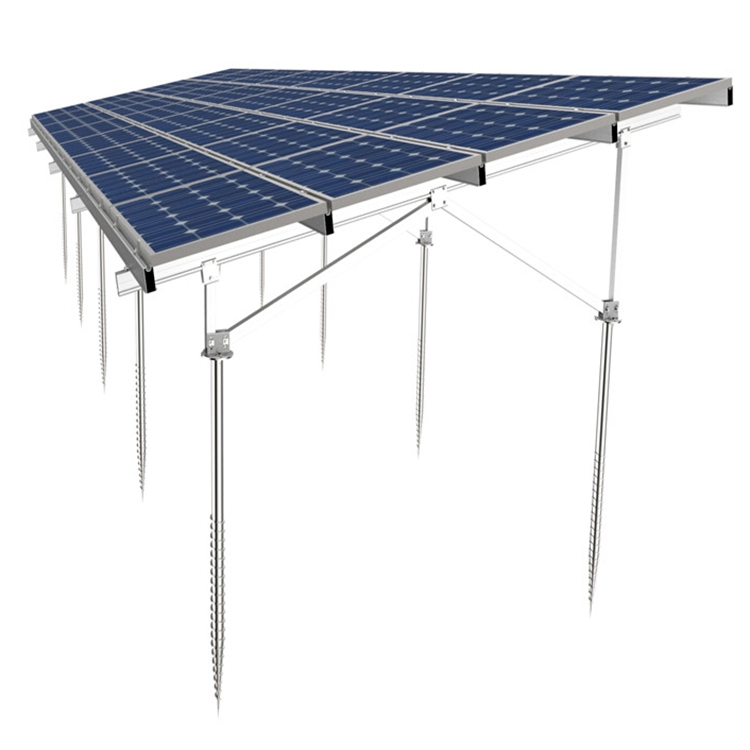

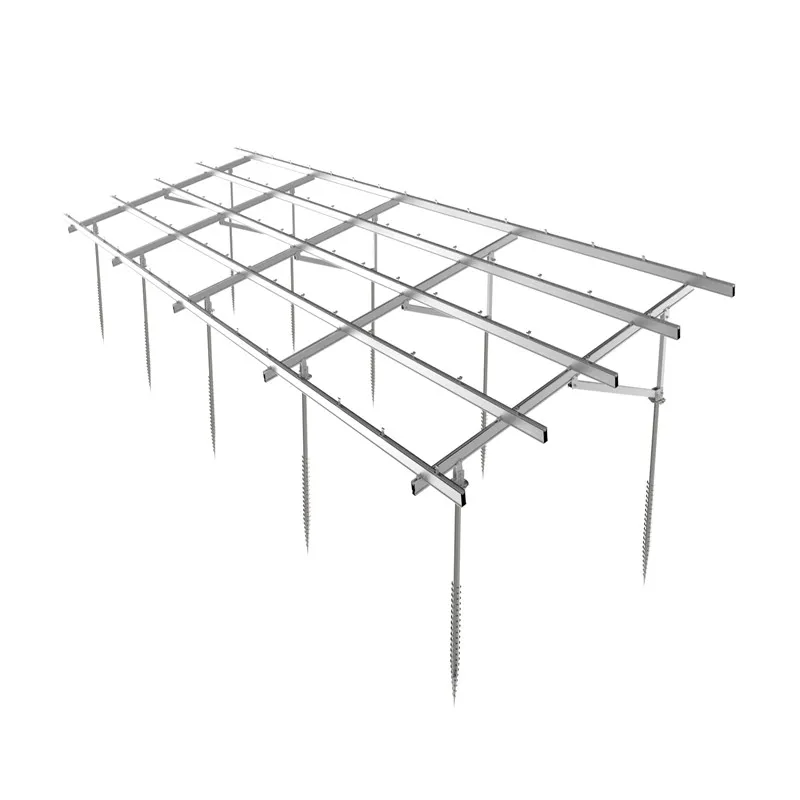

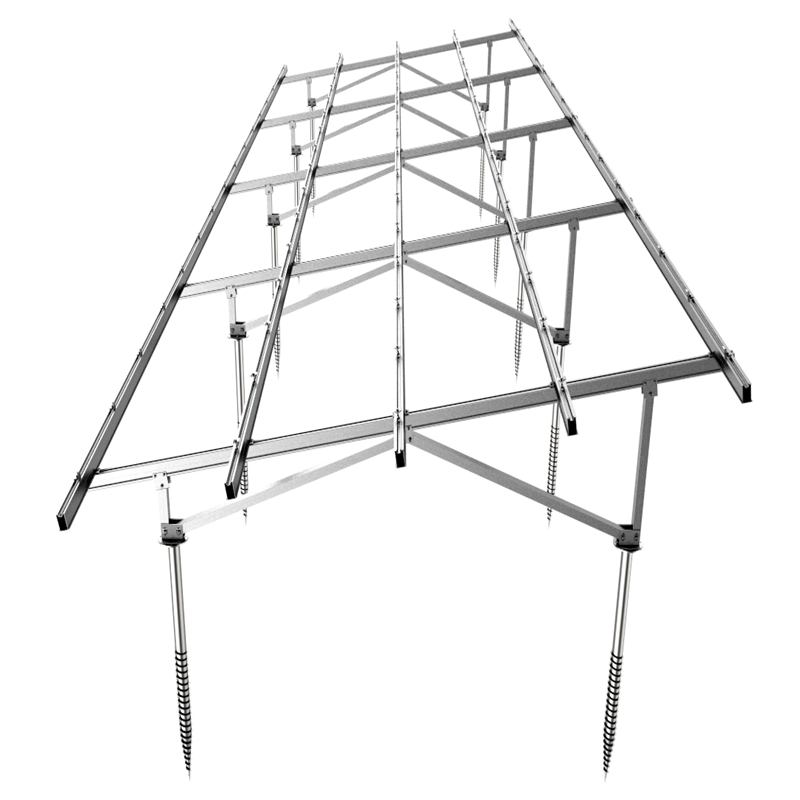

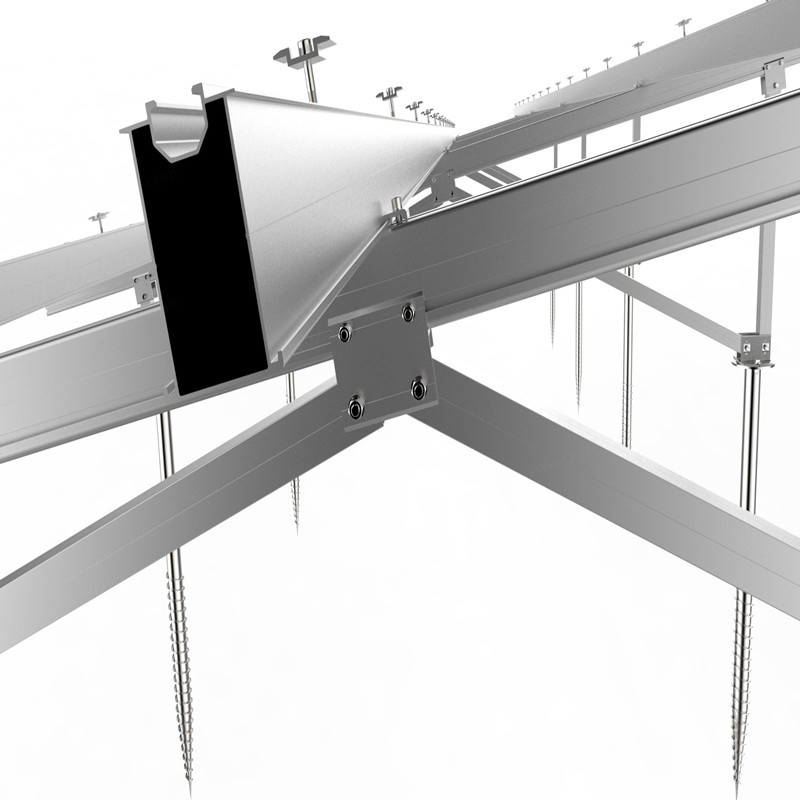

Ground Solar Panel Single Pole Mount Aluminum Mounted Racking Systems Structure

Basic Info.

Certification

Certificate of Utility Model Patent

Application

Commercial

Material

Steel

Type

Ground Bracket

Product Name

Ground Screw

Surface Treatment

Anodizing 13 Um

Max Wind Speed

up To130mph(60m/S)

Design Snow Load

up to 30PSF(1.4kN/M2)

Design Standard

JIS C 8955:2011, GB50009-2012,1bc 2009.Cbc2010

Panel Direction

Vertical or Landscape

Installation

Tin Rooftop or Flat Concrete Open Space

Duration

25 Years

Production Capacity

50gw /Month

HS Code

7610900000

Packaging & Delivery

Package Size

240.00cm * 30.00cm * 20.00cm

Package Gross Weight

3.000kg

Product Parameters

TECHNICAL PARAMETERS
Product Name	Ground screw
Keywords	Ground screw solar mount
Material	Aluminum 6005-T5 & SUS304 Galvanizated steel
Surface Treatment	Galvanizating
Tilt Angle	10°-15°; 15°-30°; 30°-60°
Max Wind Speed	Up To130Mph(60m/s)
Design Snow Load	Up To 30Psf(1.4kn/m2)
Design Standard	JIS C 8955:2011, GB50009-2012,1BC 2009.CBC2010
Panel Direction	Vertical Or Landscape
Installation	Tin Rooftop Or Flat Concrete Open Space
Application	Compatible With Almost Market Panels
Packing	Cardboard Box, Custom Pallet Or Custom Wooden Box
Warranty	12Years
Duration	25 Years

Product Description

Galvanized steel solar panel mounting system

Solar ground mounting system is manufactured in zinc-mg-aluminum steel plates and can be used in a variety of conditions using concrete foundations and ground screws for different panel arrays. Using zinc magnesium aluminum steel structure, this solar mount type has a huge market advantage.

1

100% high strength zinc magnesium aluminum steel plate, good corrosion resistance and automatic repair.

2

High competitiveness on material cost.

3

Easy and fast installation with unique design.

4

Good processing performance, environmental protection and long service life.

5

Simplified process eliminates the hot dip plating after forming.

Features:

● Compatibility With All Type Of Structures - Foundation Solution Concrete Free.
● Surrounding Areas Remains Unspoiled.
● Easy Remove Simple And Easy To Relocate. The Screw Pile Driver is also hot-selling!

Detailed Photos

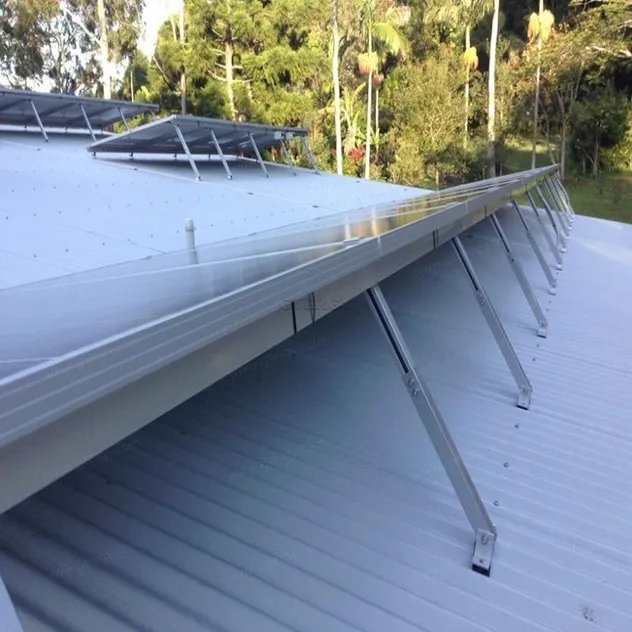

800kw Metal rooftop solar mount
Site: Mexico (2019)

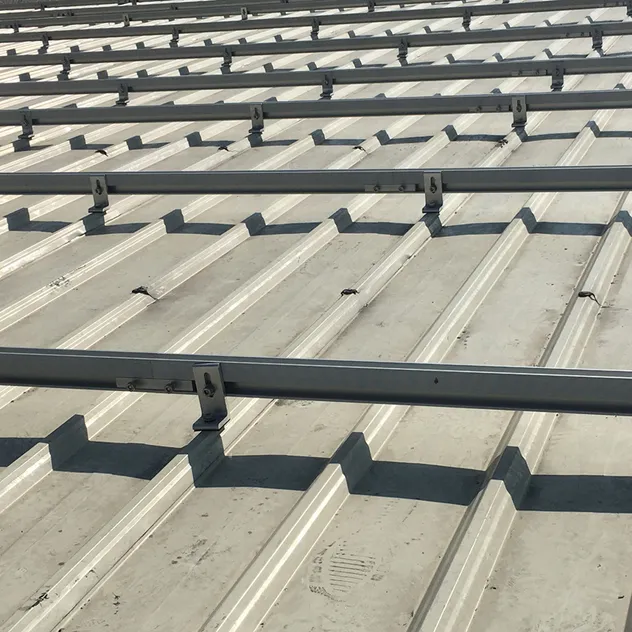

2MW L feet system
Site: Sri Lanka (2017)

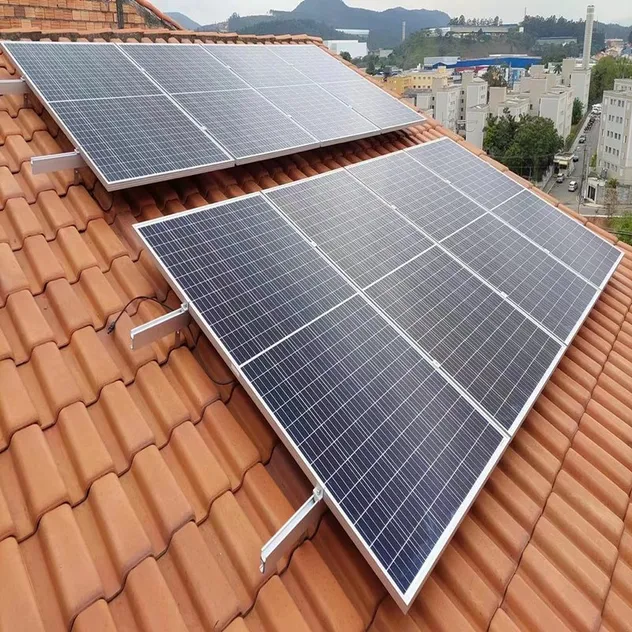

24KW tile rooftop solar mount
Site: Poland (2020)

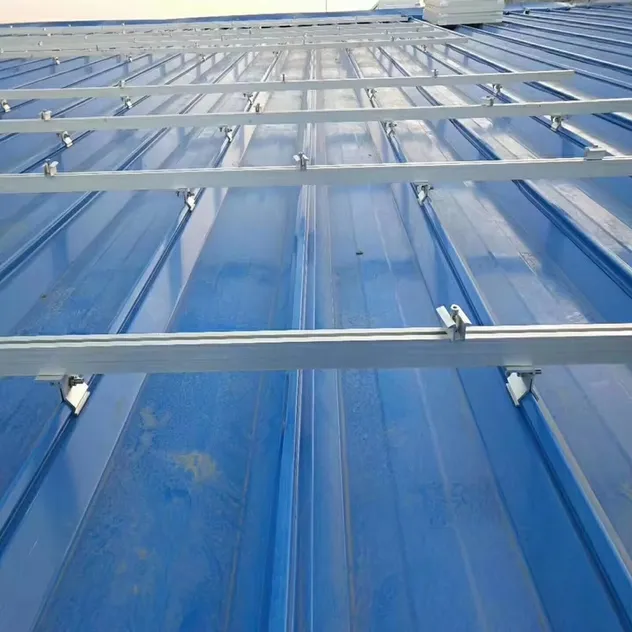

4MW roof clamps system
Site: Myanmar (2022)

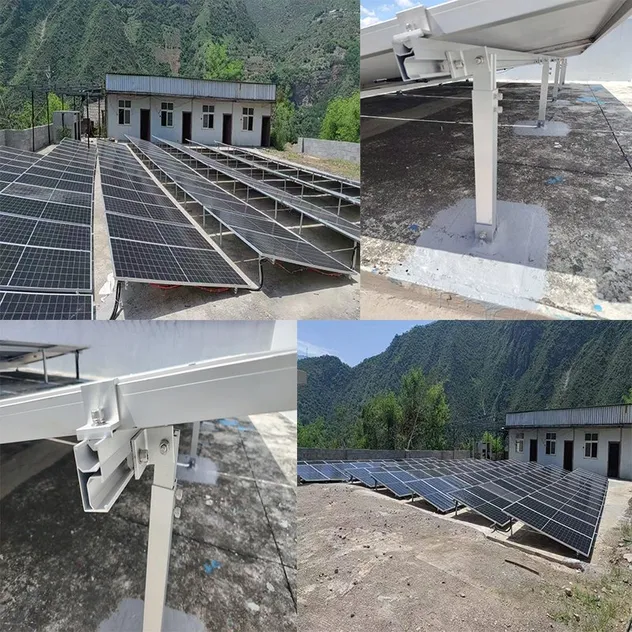

Concrete rooftop solar mount
Site: South Africa (2021)

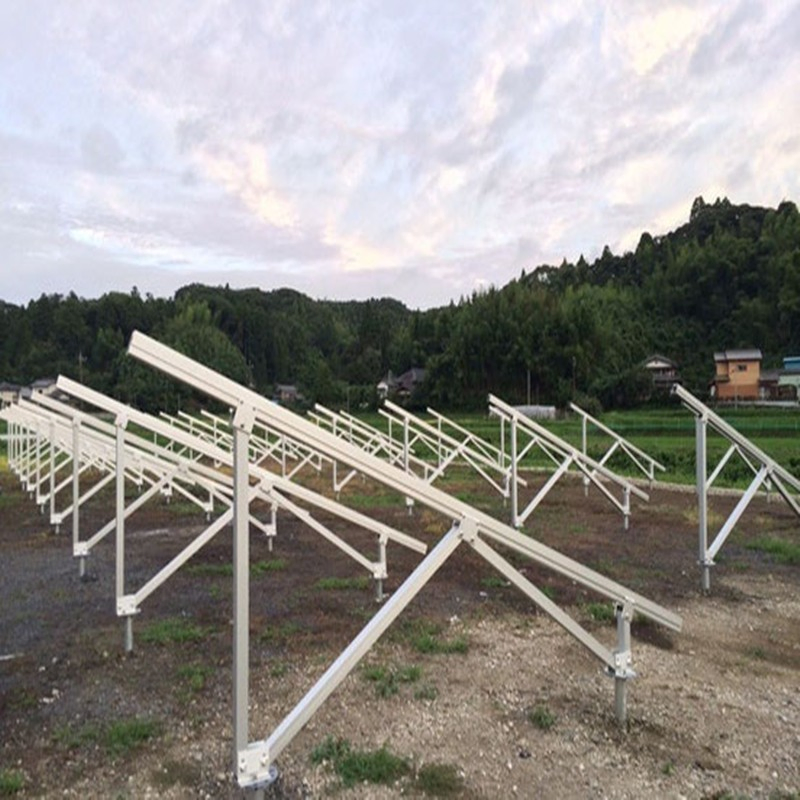

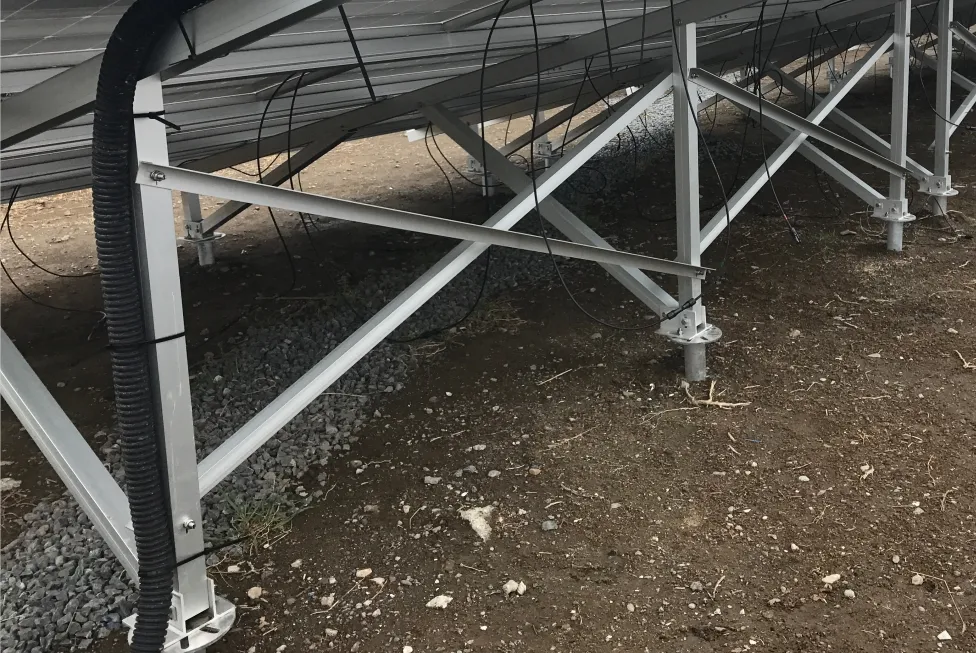

Ground solar mount
Site: Japan (2017)

Packaging & Shipping

Frequently Asked Questions

Q1: Are you a factory or trading company?

A: We are direct manufacturer in China and specialize in producing solar mounting systems. We supply multi-choice mounting systems for different kinds of power solution whether roof, ground, RV.

Q2: How about the production time?

A: Stock needs 1-3 days, mass production time needs 7~15 days, detail production time based on your order quantity.

Q3: Do you have any MOQ limit?

A: We have not any request on MOQ for our current products, 1pc to test quality is available. As for ODM and OEM items, minimum order quantity is required for technique and raw material reasons.

Q4: Can I have a free sample?

A: If you need similar samples, we can find it from our showroom, it is free, but you need to bear the expense freight. If you need a customized sample, you need to pay us sample charge. Welcome to get our free samples to test and check quality.

Q5: How long does the goods arrival?

A: For sample order, it ship by DHL or FedEx. Sample will takes 3-5 days to arrive. And for a big deal, goods general ship by sea, it will takes 15~30 days to arrive local port. Detail shipping date based on the distance.

Q6: What services can we provide?

A: We provide OEM, ODM services to our clients, customized logo, color package are available. Welcome show us your artwork.
