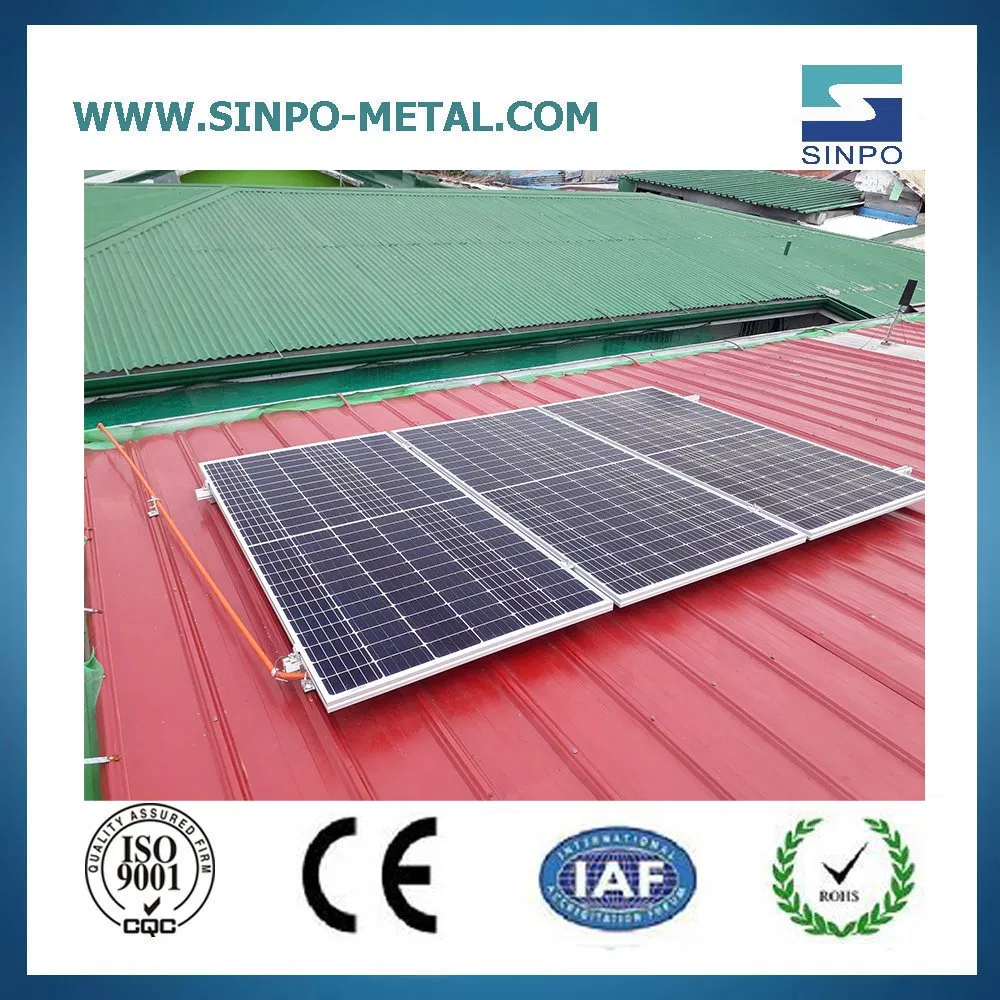

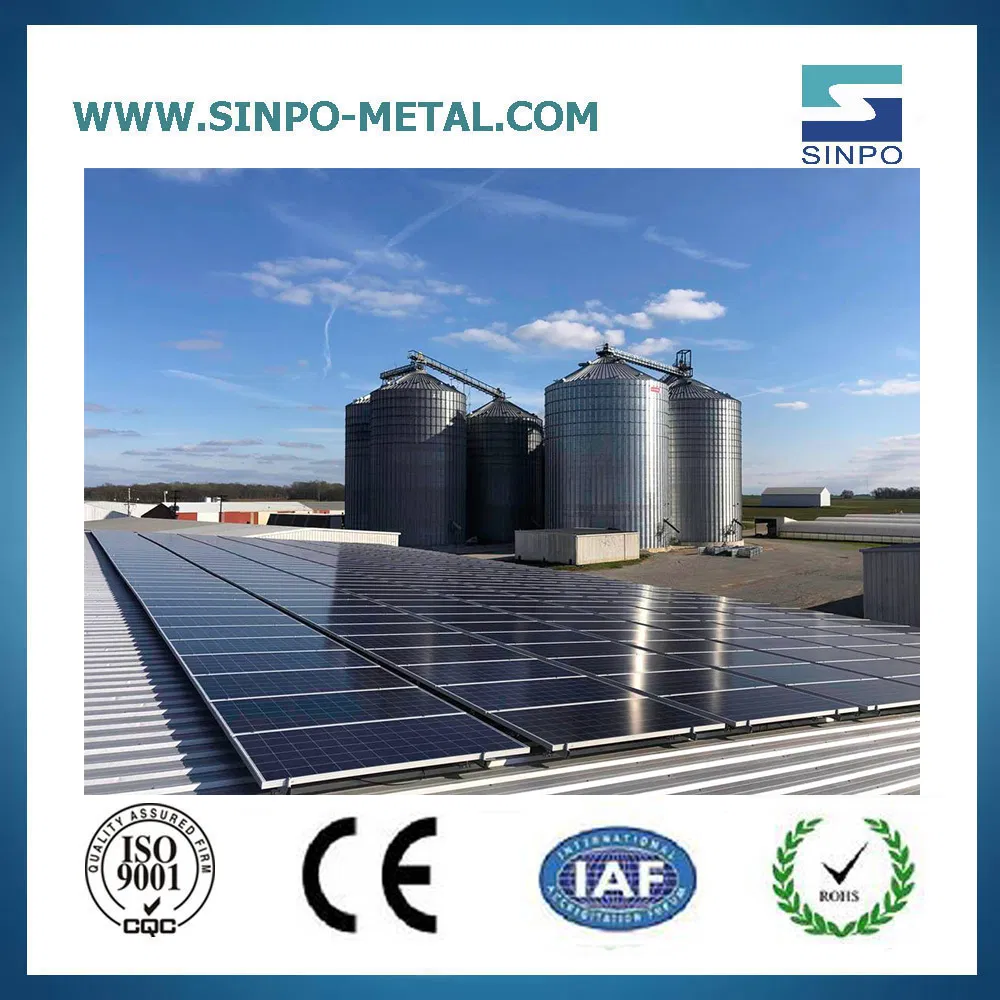

Efficient and Reliable Photovoltaic Installation Kit for Tin Roofs

Basic Information

Model NO.

Metal Roof Solar Panel Structure

Certification

ISO, CE

Application

Commercial

Material

Aluminum Alloy

Type

Roof Bracket

Wind Load

60m/S

Snow Load

1.4kn/M2

Product

Solar Power System of L Feet Component

Production Capacity

50000ton/Year

Packaging & Delivery

Package Size

45.50cm * 26.50cm * 37.50cm

Gross Weight

23.600kg

Transport

Shrinking Film, Carton, Wooden Pallet

Key Features

✓Enables easy, fast and cost-effective installation.
✓Flexible post spacing withstands different wind & snow loads.
✓High quality material in Aluminum and SUS 304.
✓Highly corrosion resistant surface treatment.
✓Screws and nuts go with every component needed.
✓Fasteners and rail nut fully configured to save extra parts purchasing.
✓Mechanical calculation and reliability tested to ensure highest product quality.
✓12-25 years system and structural guarantee.

Product Specification

Type	Solar mounting system for metal roof
Installation site	According to your requirements
Material	Aluminum 6000 series
Fasten material	Aluminum
Survival Wind Speed	< 60m/s
Design Snow load	Up to 1.4KN/ Square meters
Solar panel type	Framed or Frameless
Panel Orientation	Transverse or vertical
Design Standard	CE; ISO9001; SGS
Quality warranty	12-25 years
Duration	More than 20 years

Materials List (For 1kw)

NO.	Name	Size(mm)	QTY	Material
1	Clamp	-	12	AL6063-T5
2	Rail	4040/3040	4	AL6063-T5
3	Rail Joiner	4 set screw	2	AL6063-T5
4	Mid Clamp	30-47-60	6	AL6063-T5
5	End Clamp	W40-60-16	4	AL6063-T5
6	Hexagon Socket Screw	M8*25	24	304
7	T Bolt	M8*25	12	304
8	T Bolt	M8*35	10	304
