Model NO.

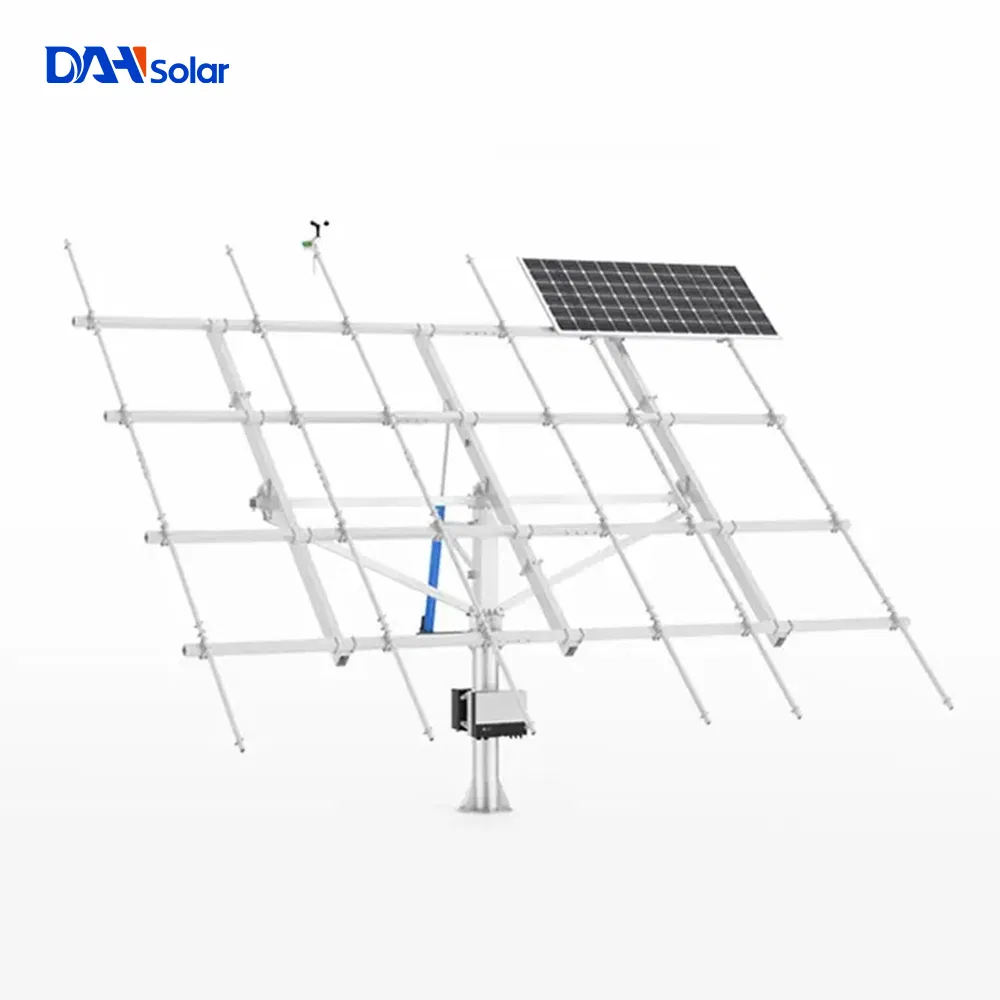

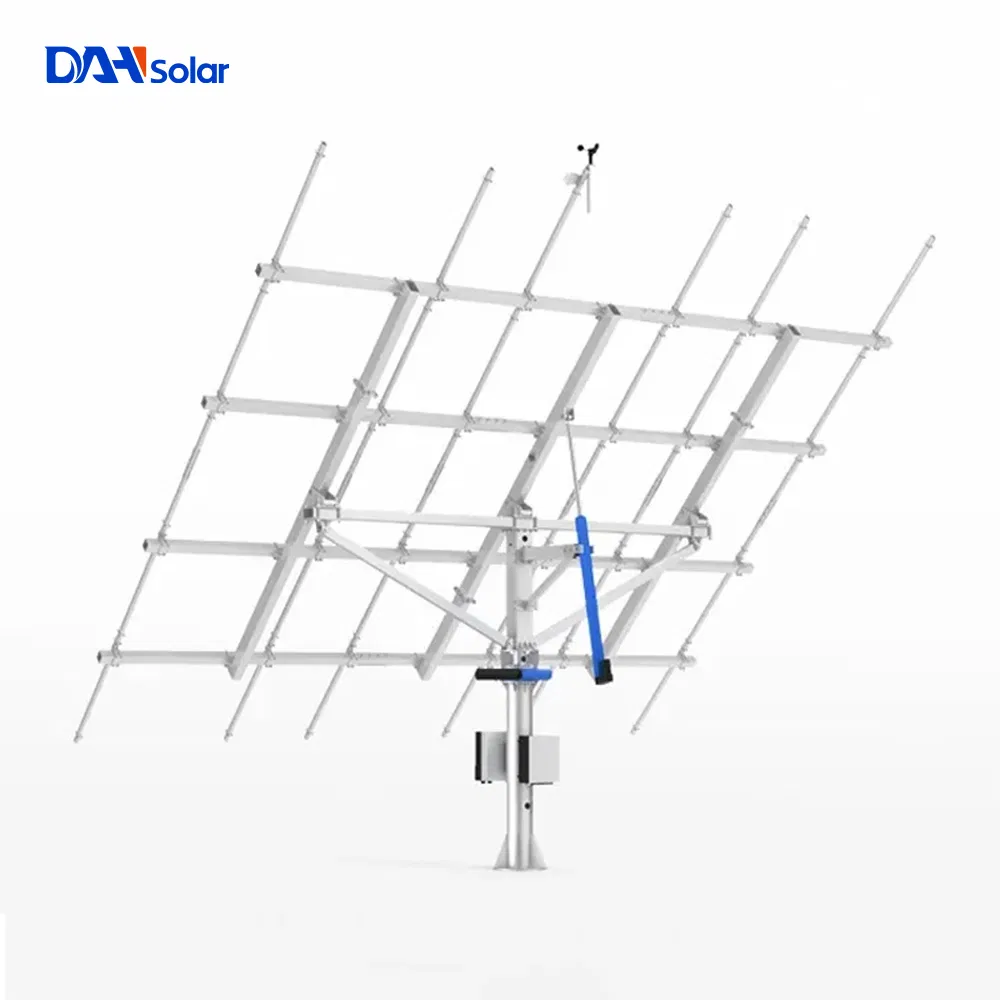

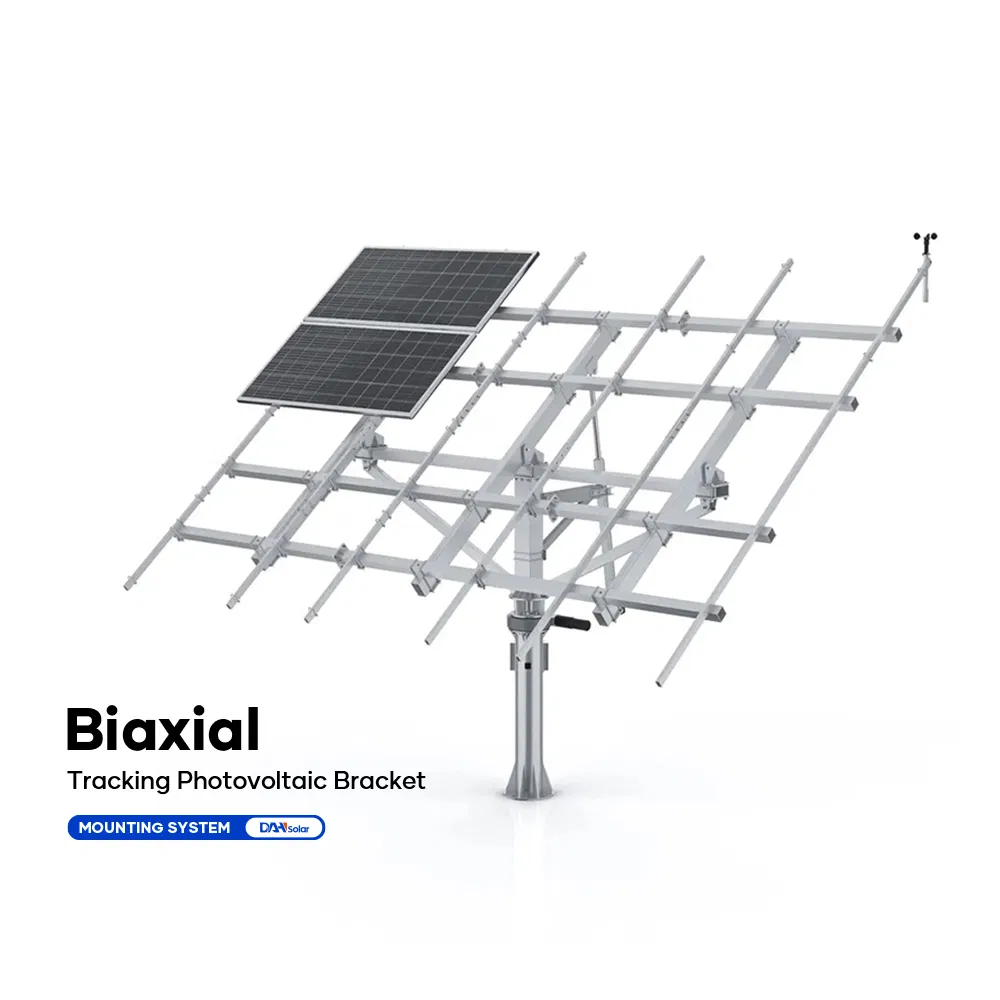

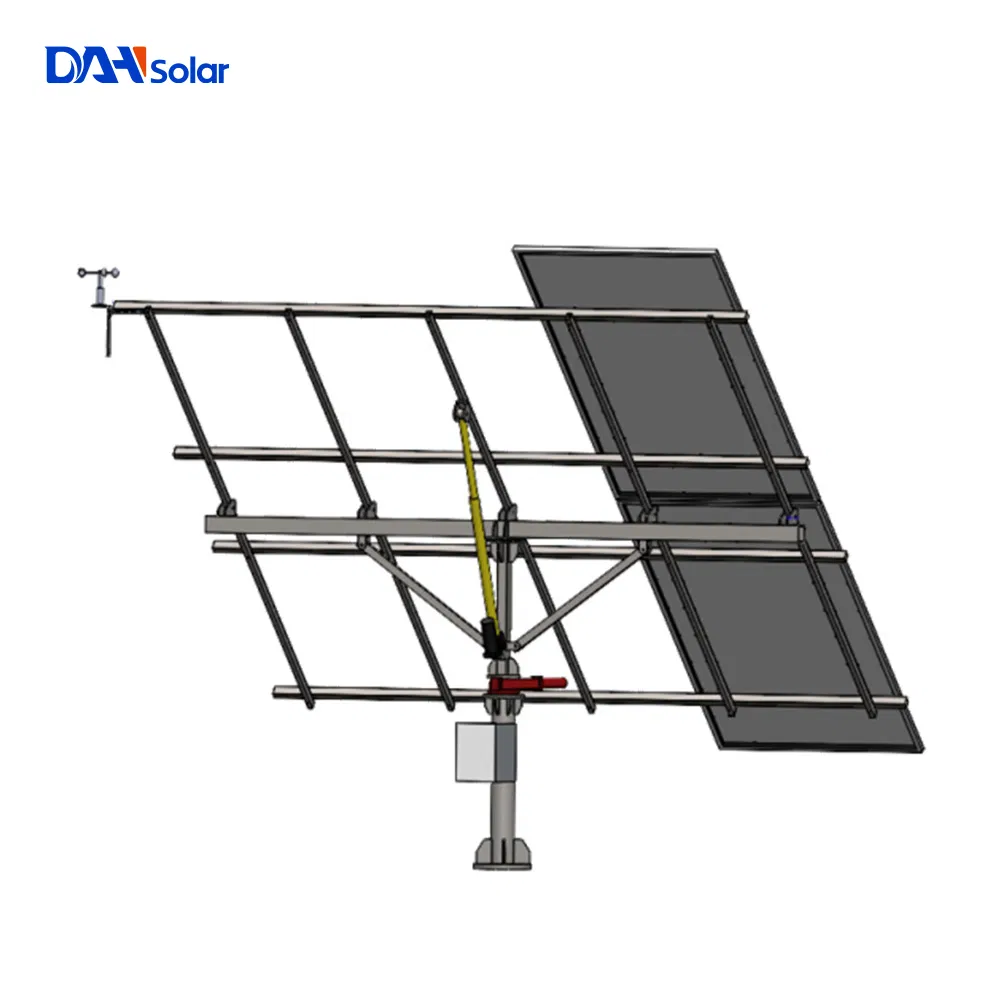

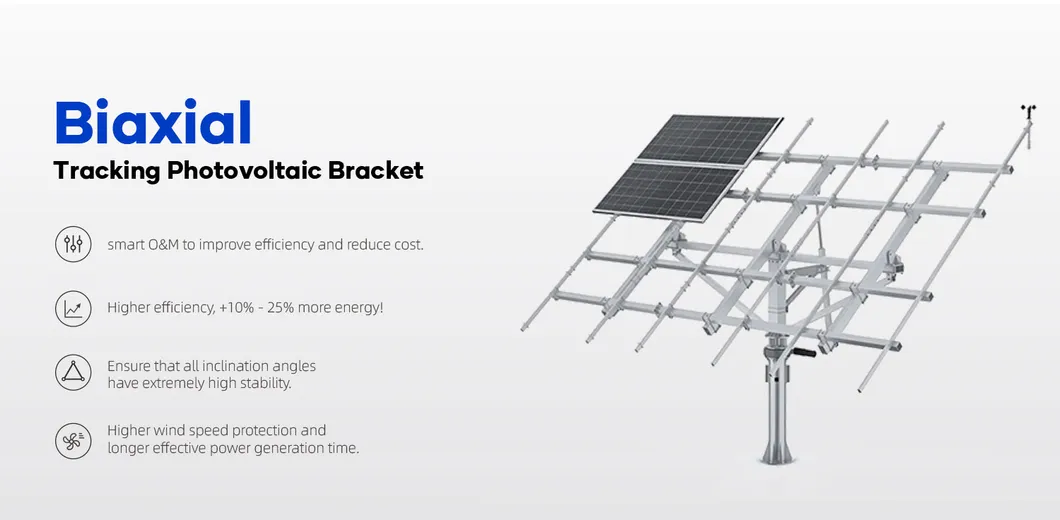

Dual Axis Automatic Solar Tracker
Material
Galvanized Steel Superdyma
Tracking Accuracy
0.1°- 2.0° Adjustable
Power Consumption
<0.02kwh/Day
Weight Support
1.5kw -5.0kw Solar Panels

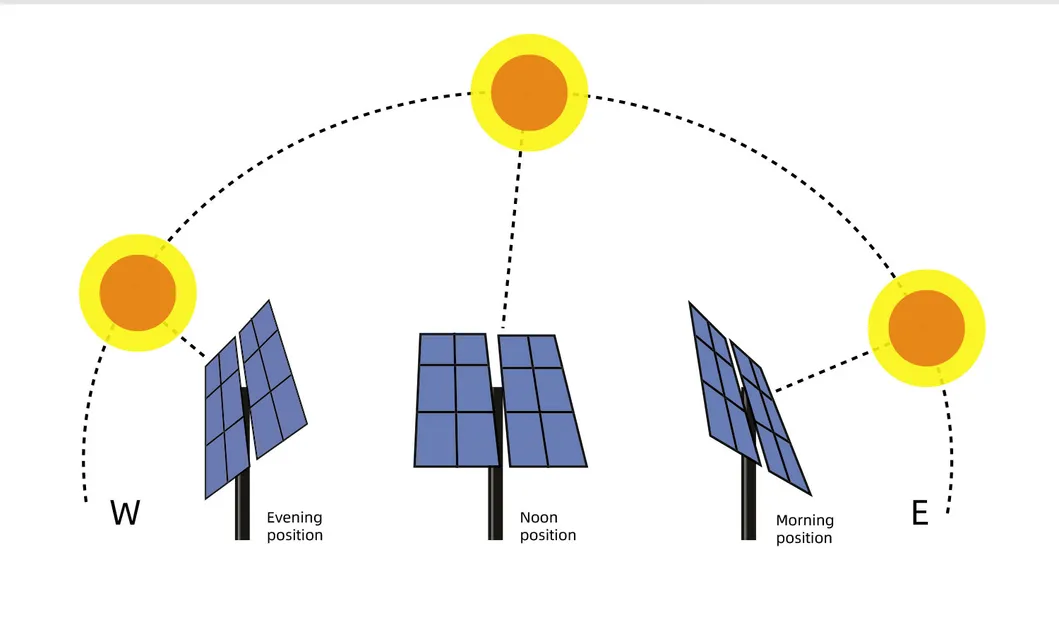

Dual axis solar tracking system has two axis tracking the azimuth angle and elevation angle of the sun. The control system can control the driving system track the sun according to the longitude, latitude and local time data downloaded by GPS device, keeps solar panels at best angle for receiving sunlight, so that it can makes full use of sunlight, promote the power generation capacity by 25%-40%, reduces your LCOE and bring more revenue for investors.
| Control mode | Time + GPS |
| Average tracking accuracy | 0.1°- 2.0°(adjustable) |
| Gear motor | 24V/1.5A |
| Output torque | 5000 N·M |
| Tracking power consumption | <0.02kwh/day |
| Azimuth angle tracking range | ±45° |
| Elevation angle tracking range | 45° |
| Max. wind resistance (horizontal) | 40m/s (standard 30m/s) |
| Max. wind resistance (operation) | 24 m/s |
| Material | Galvanized steel / Superdyma |
| System guarantee | 3 years |
| Working temperature | -40ºC - +75ºC |
| Technical standard & certificate | CE ,TUV |
| Weight per set | 150 - 240 KGS |
| Total power per set | 1.5kW - 5.0kW |
Frequently Asked Questions
1. How much can a dual-axis solar tracker increase power generation?
A dual-axis system tracks both azimuth and elevation angles, which can increase power generation capacity by 25% to 40% compared to fixed systems.
2. What control technology is used for tracking?
The system utilizes a combination of Time and GPS data to precisely calculate the sun's position based on longitude, latitude, and local time.
3. What is the tracking accuracy of the system?
The average tracking accuracy is between 0.1° and 2.0°, and it is fully adjustable to meet specific operational requirements.
4. Can the tracker withstand high wind speeds?
Yes, it is designed for durability with a maximum horizontal wind resistance of 40m/s and operational resistance of 24m/s.
5. What is the power consumption of the tracking motor?
The system is highly efficient, with a daily tracking power consumption of less than 0.02kWh.
6. What certifications does this solar tracking system hold?
The system is fully certified with CE and TUV standards, ensuring compliance with international quality and safety requirements.
