| Model NO. | ground bracket-003 |
| Certification | GB, ISO, TUV, CE, RoHS |
| Application | Commercial / Industrial |
| Material | High-Strength Steel |
| System Type | 2~5rows Linked Type / Independent Type |
| Motor | DC24V Gear Motor / 1.5A×1 |
| Max Wind Speed | Operation: 24m/s; Horizontal: 37m/s |
| Rust Protection | Hot-Dipped Galvanized Steel Baked Painted |
| Tracking Accuracy | ≤2° (Configurable) |
| Operating Temperature | -40°C ~ +75°C |
| Production Capacity | 100,000 Tons / Year |

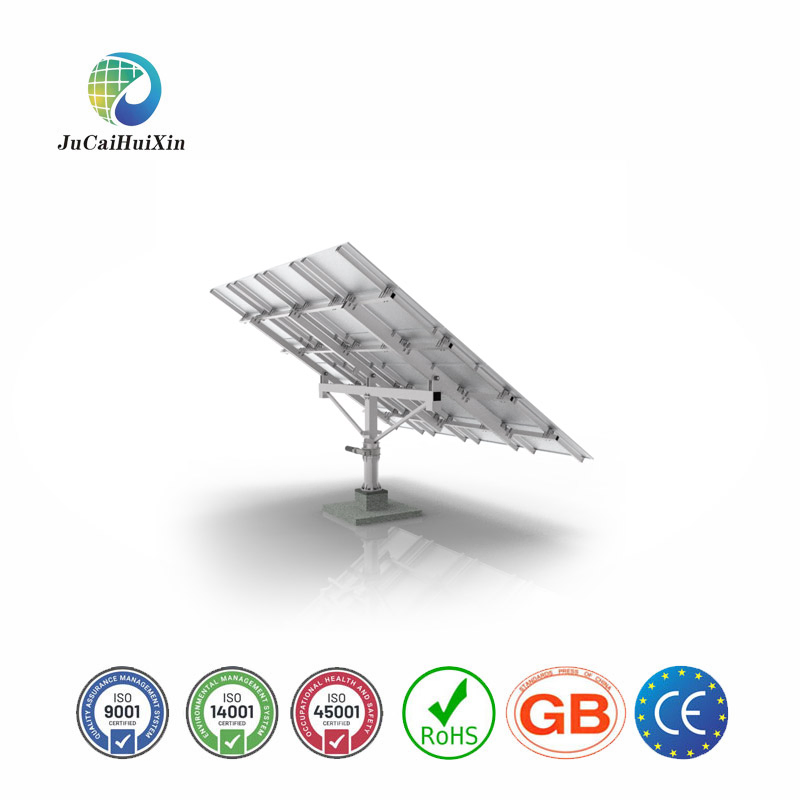

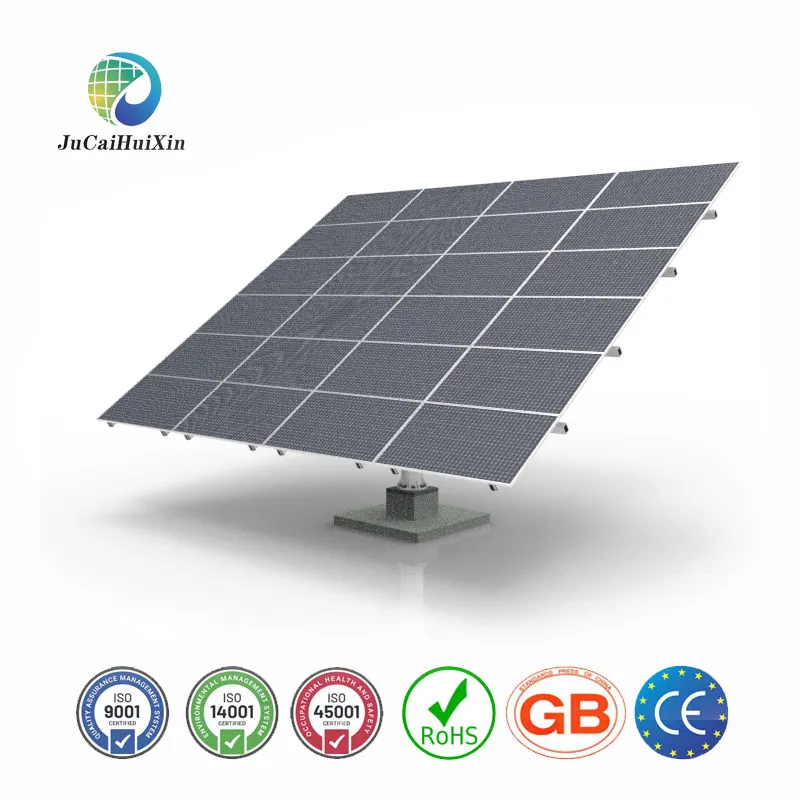

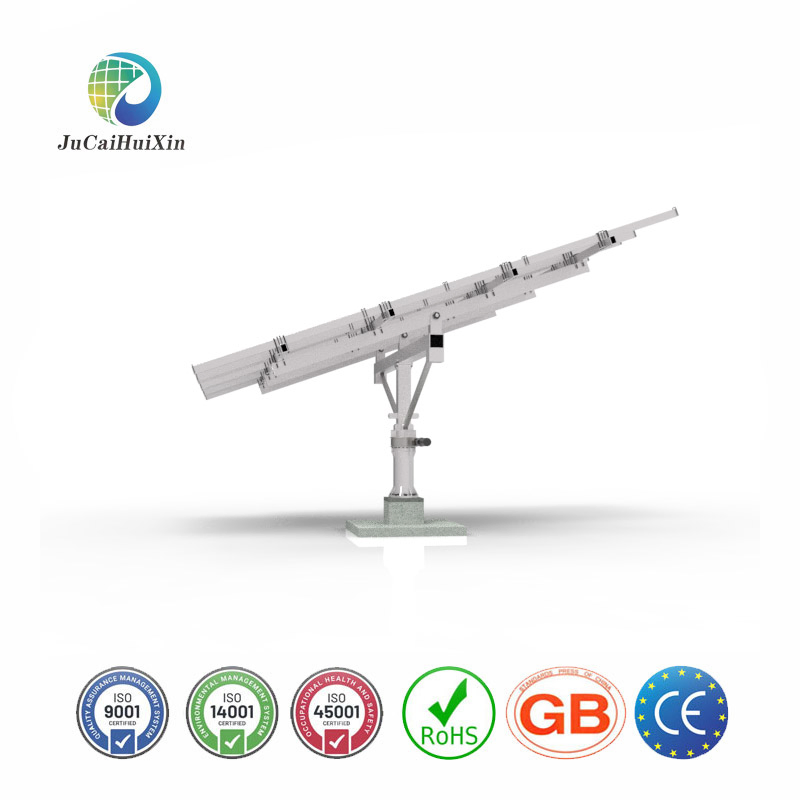

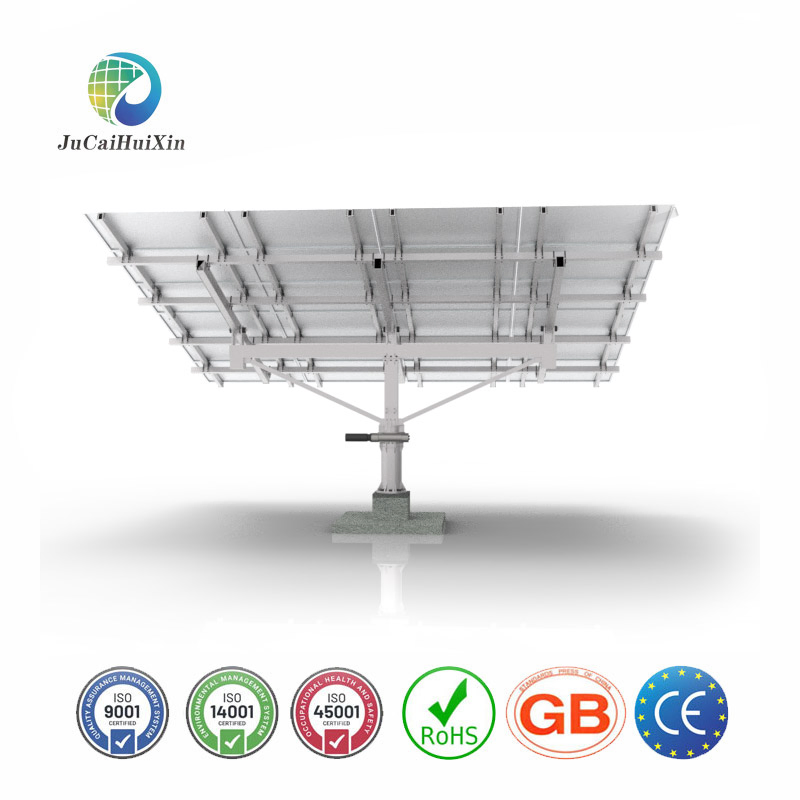

Introducing our Factory Custom Wholesale Dual Axis Solar Tracking System. This innovative system is designed to optimize the efficiency of solar panels by tracking the sun's movement throughout the day. The dual axis tracking system ensures maximum exposure to sunlight, increasing energy production by up to 30% compared to fixed solar panels.
Our Solar Tracker is easy to install and is compatible with a variety of solar panel sizes. The sturdy mounting system provides reliable support and stability, even in harsh weather conditions. Whether you are looking to reduce your energy bills or minimize your carbon footprint, our Solar Tracking System is the perfect solution for residential, commercial, and industrial applications.
| System Type | Independent Drive |
| Number of Panels | 2-10 Piece (≤23 sq.m.) |
| Power Consumption | 5.0 Kwh/set/year |
| Azimuth Tracking Range | ±45º |
| Elevation Tracking Range | 45º |
| Control Model | Time + GPS Control |
Dual-axis design tracks sun's azimuth + elevation with ±0.1° precision. IP68-rated motors and 316L stainless steel bearings withstand extreme environments.
Galvanized Steel Framework with 25 Year Anti-Corrosion Warranty. Wind resistance up to 60m/s, snow load capacity 1.5kN/m².
Integrate manual and computer remote monitoring (Wi-Fi/4G) to provide real-time data on energy output, angle adjustment, and fault alarms.
Factory-direct pricing provides significant savings. 10-year warranty on structural components, 5-year warranty on tracking controllers.
Installation Process: Bolt-on modular design allows for 3-5 days installation with a small team. Pre-assembled wiring harnesses are color-coded for error-free connection.
Maintenance: Monthly check of bolt tightness and dust cleaning from sensors. Automatic shutdown protocols protect the system during hail or typhoons.
