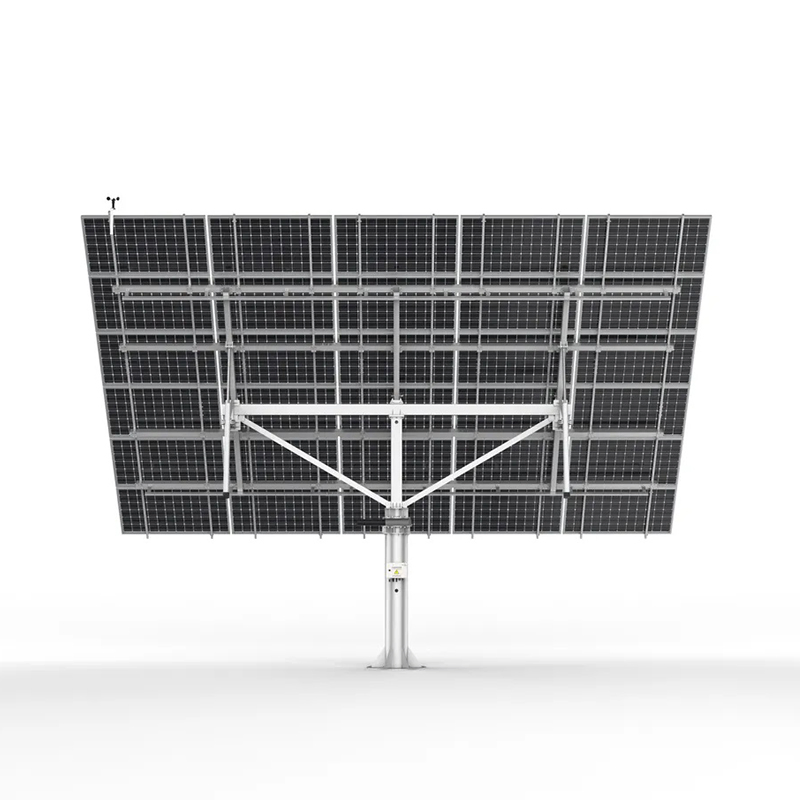

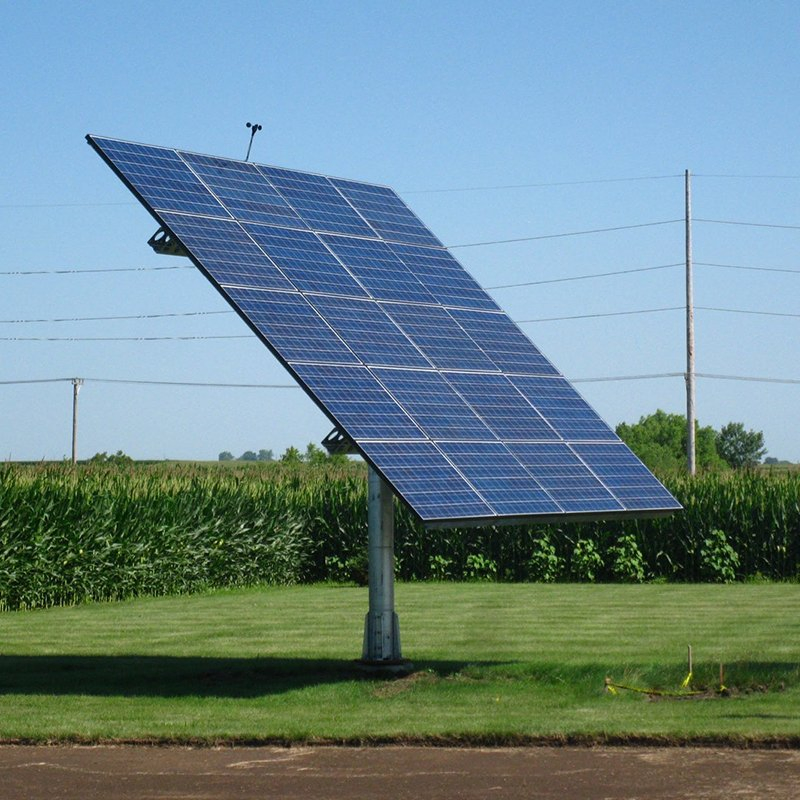

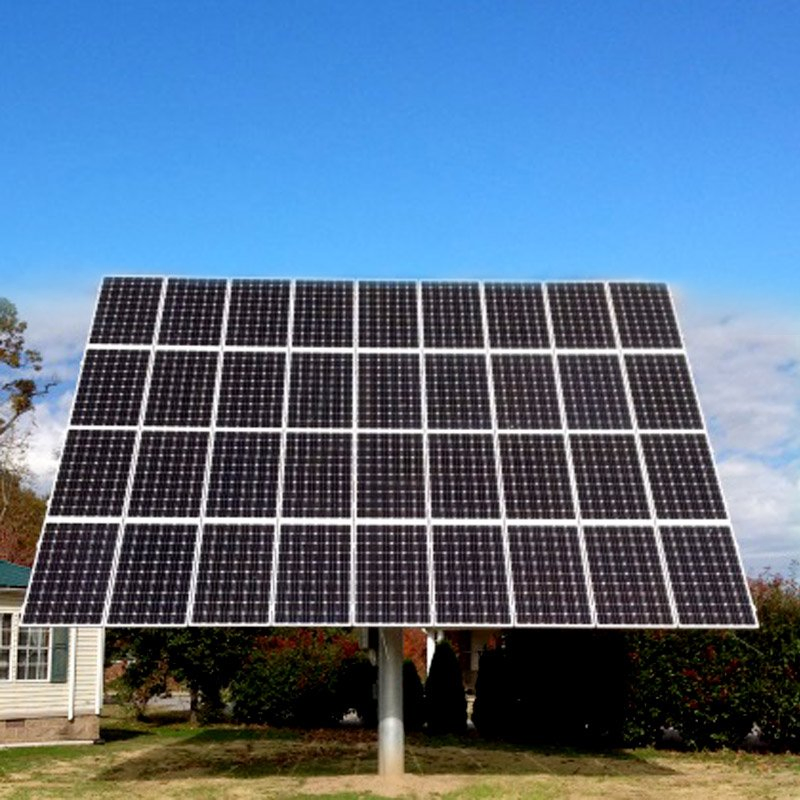

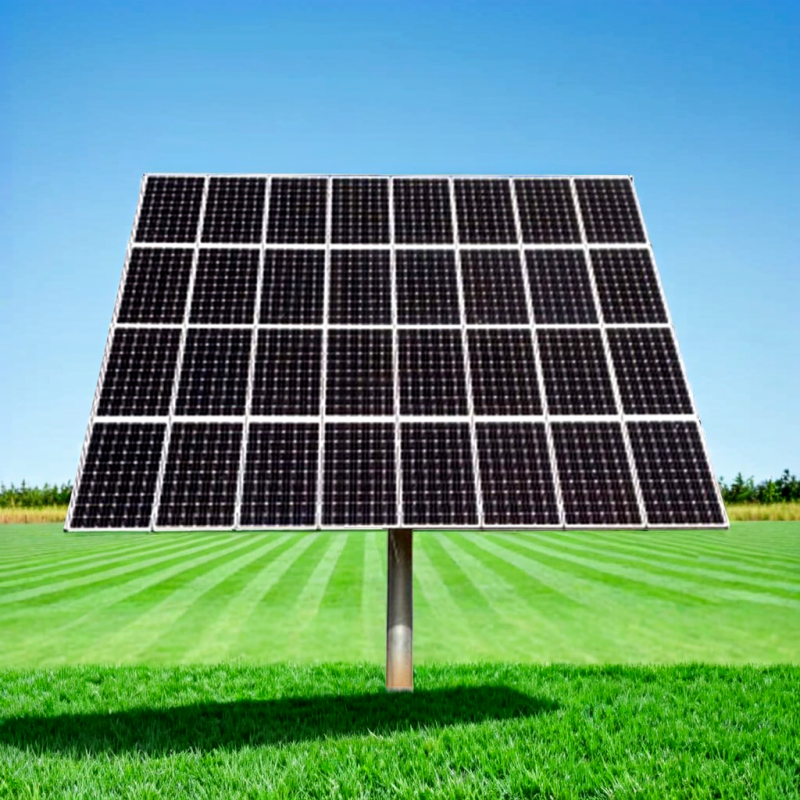

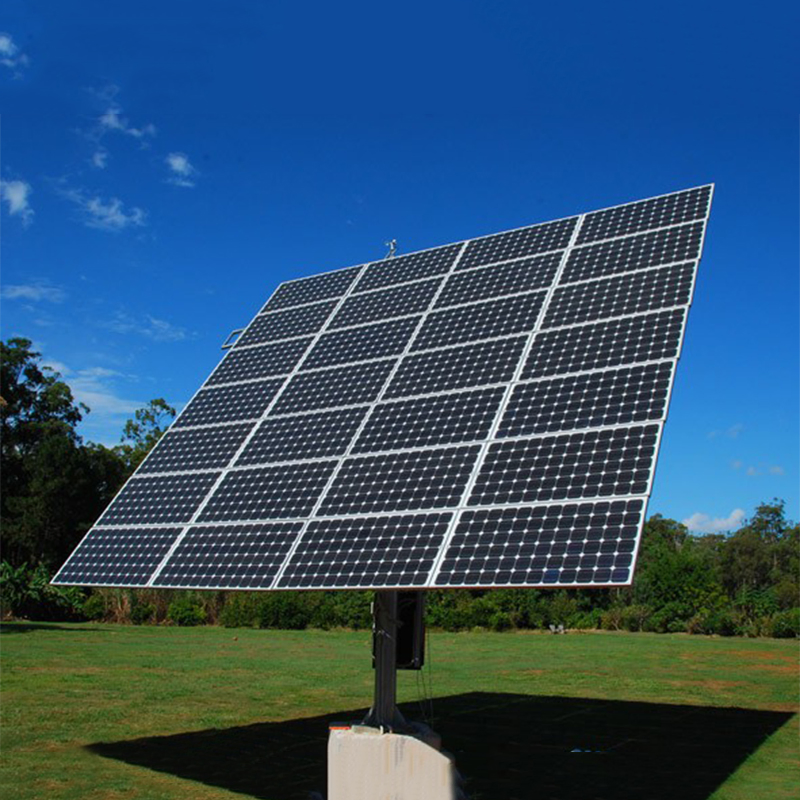

Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System
Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System
Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System
Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System
Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System
1 / 5
Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System
Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System
Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System
Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System
Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System

Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

Basic Information

Model NO.
SPT-10K
Certification
ISO, TUV, CE
Application
Industrial
Material
Stainless Steel
Type
Tracking Bracket
Product Name
Solar Tracker
Module Size
1956*992*40mm
Weight
1600kg
Scope of Rack
66m2
Power Supply
110V / 220V
Driving Power
450W
Protection Level
IP65
Daily Consumption
<1.25kwh
Comm. Protocol
RS485

Packaging & Delivery

Package Size
195.60cm * 99.20cm * 10.00cm
Gross Weight
1600.000kg

Product Description

Residential Commercial Use Automatic Adjustment Dual Axis Solar Tracking System

The control unit adopts inclination sensor feedback + closed-loop control system, which has high tracking accuracy and reliability. Compared with the stationary type, it can increase the power generation by about 35-50%. The 5KW dual-axis solar tracking bracket is compatible with 98% of the panel specifications on the market, offering superior versatility. The operating power of the system is minimal, with daily self-use power consumption of less than 0.85 kwh.

Technical Parameters

ModelSPT-10K
Solar Panel Type1956*992*35mm
Number Of Solar Panels28 PCS
Grid Area≈66 m2
Safe Working Wind Speed17 m/s
Survival Wind Speed37m/s (Customizable to <60m/s)
Snow Load0.8-1.6KN/m2
Control AlgorithmAstronomical Algorithm + Position Sensor Closed Loop Control
Working Temperature-30ºC~+70ºC
Azimuth Range (X Axis)-135°~+135° (Within ±175°)
Azimuth Range (Y Axis)0°~60° (Customizable)
Drive Power450W
Protection LevelIP65

Detailed Product Photos

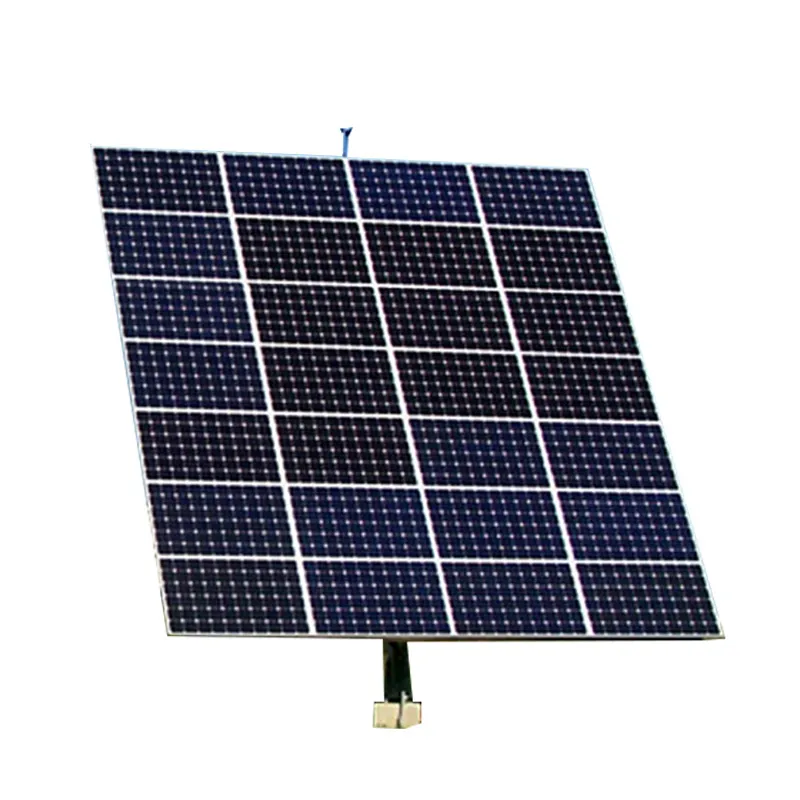

Solar Tracking System 1

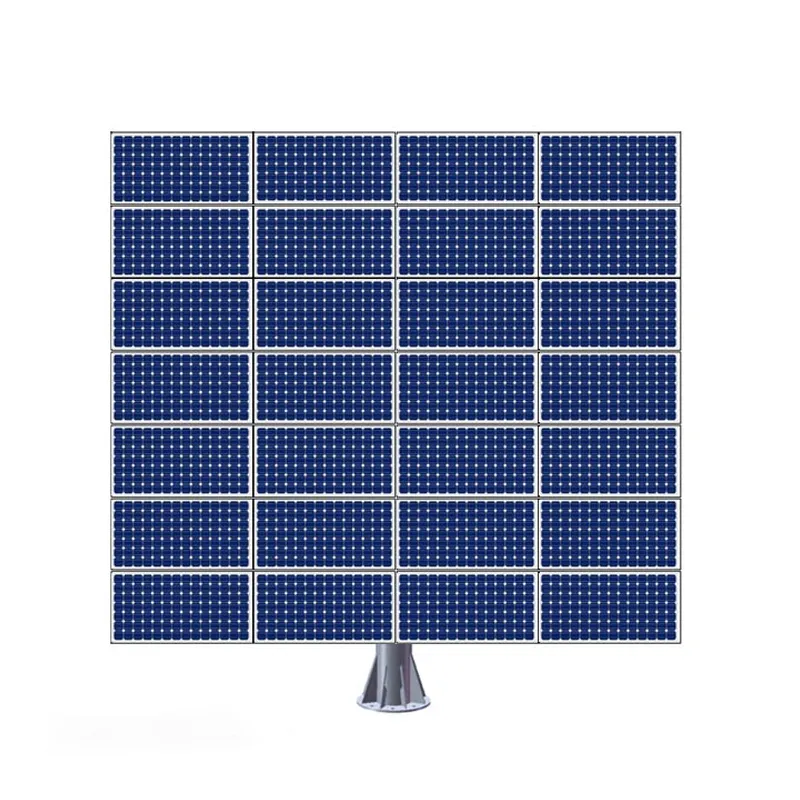

Solar Tracking System 2

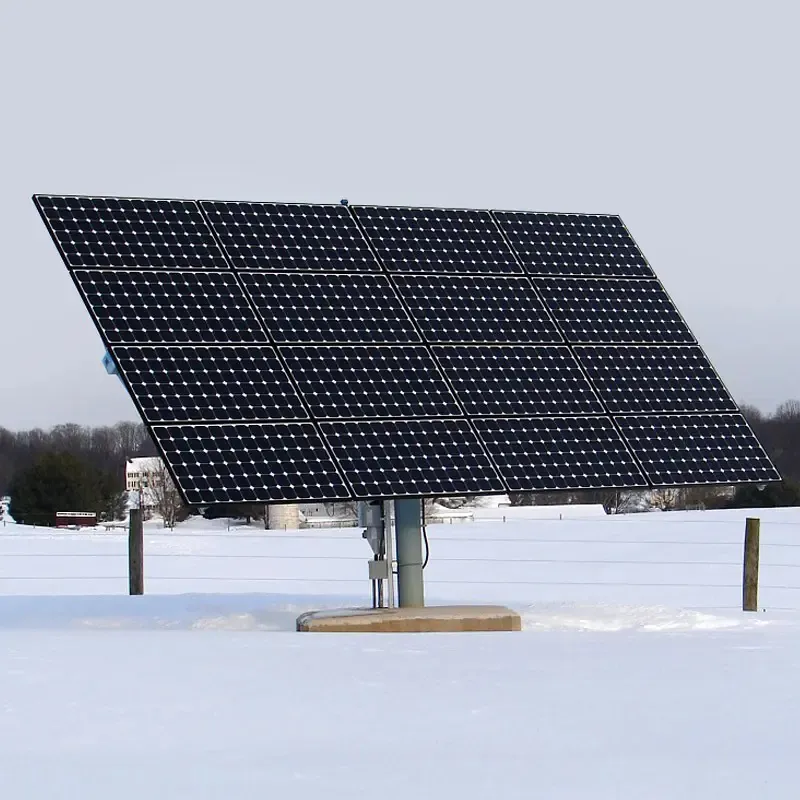

Solar Tracking System 3

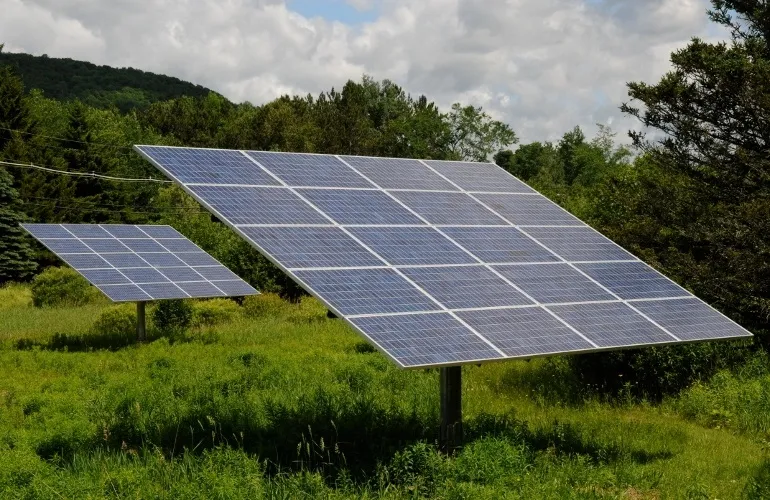

Solar Tracking System 4

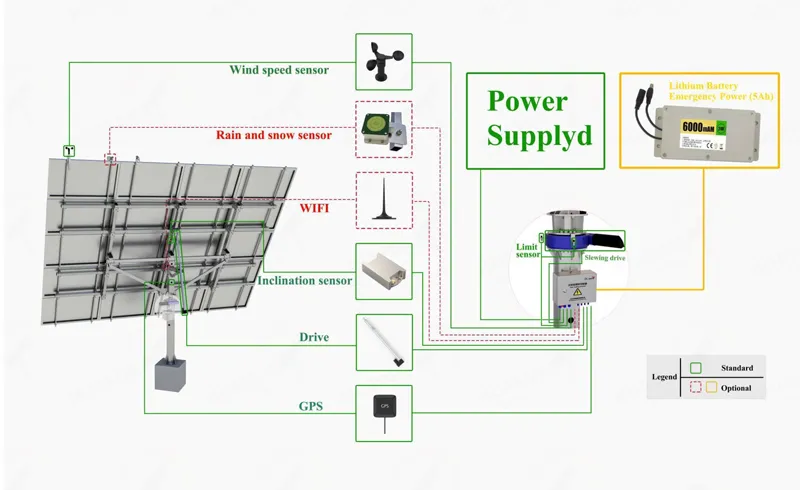

Solar Tracking System 5

Application Areas

Application Area

Professional Production & Project Cases

Factory

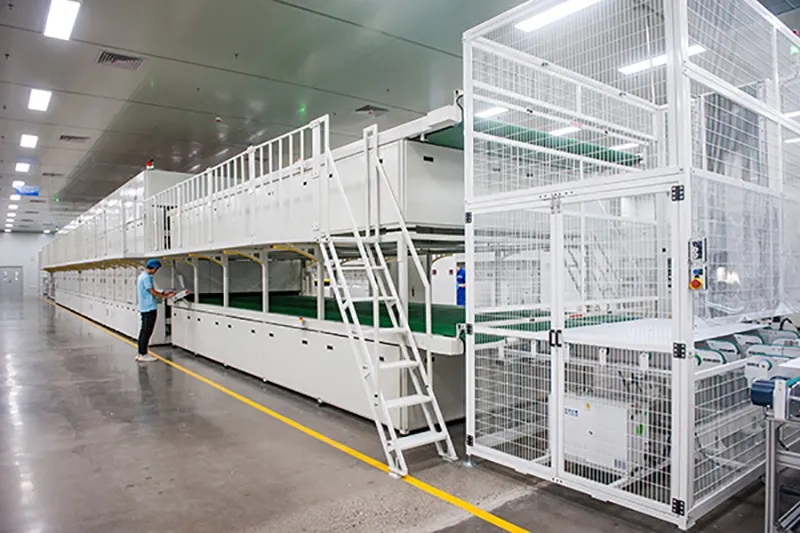

Workshop

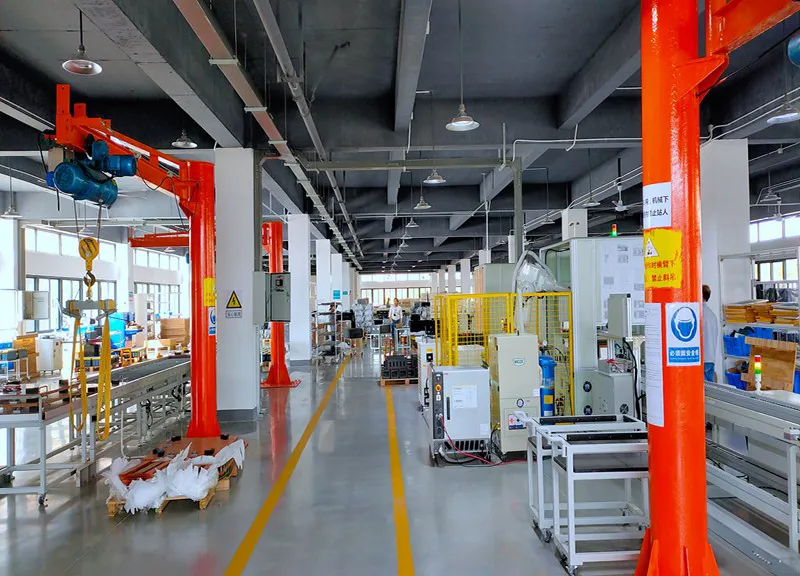

Production Line

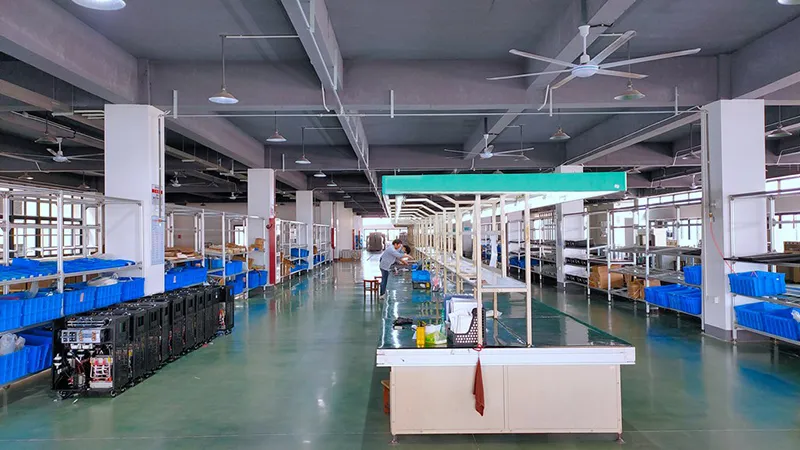

Facilities

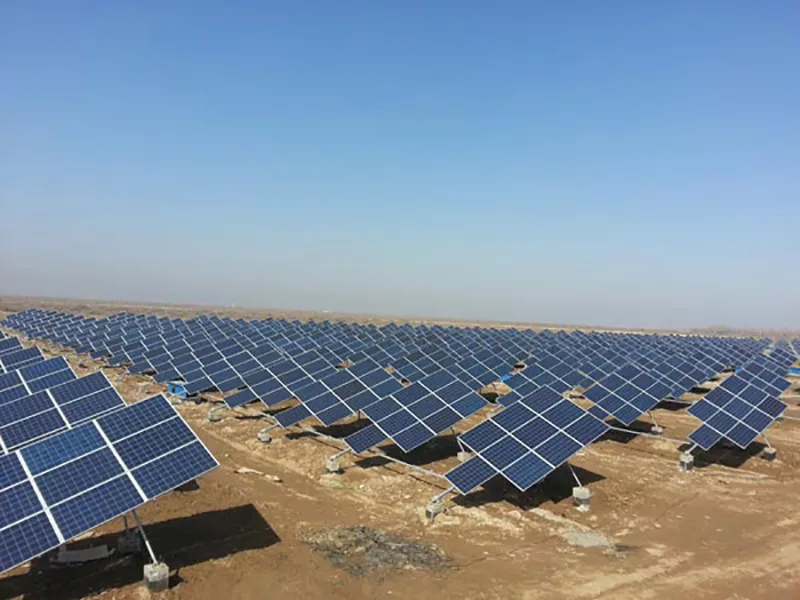

Case 1

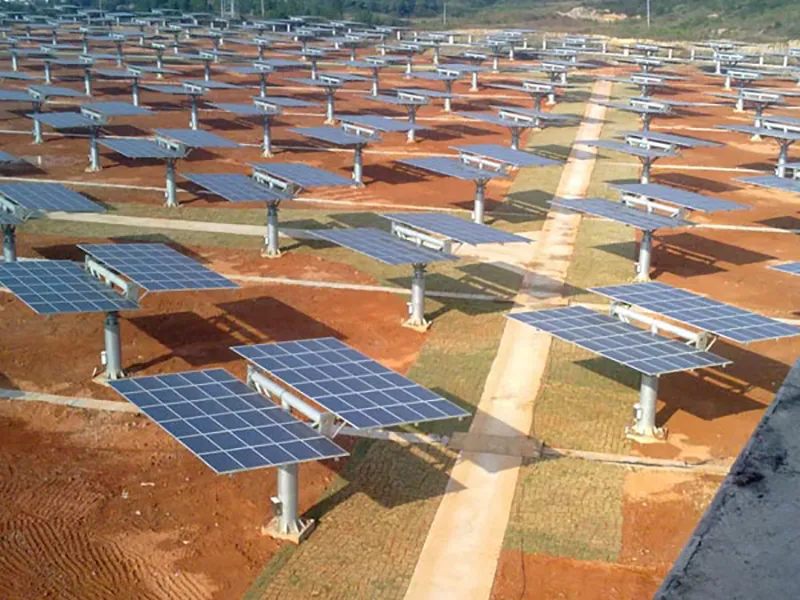

Case 2

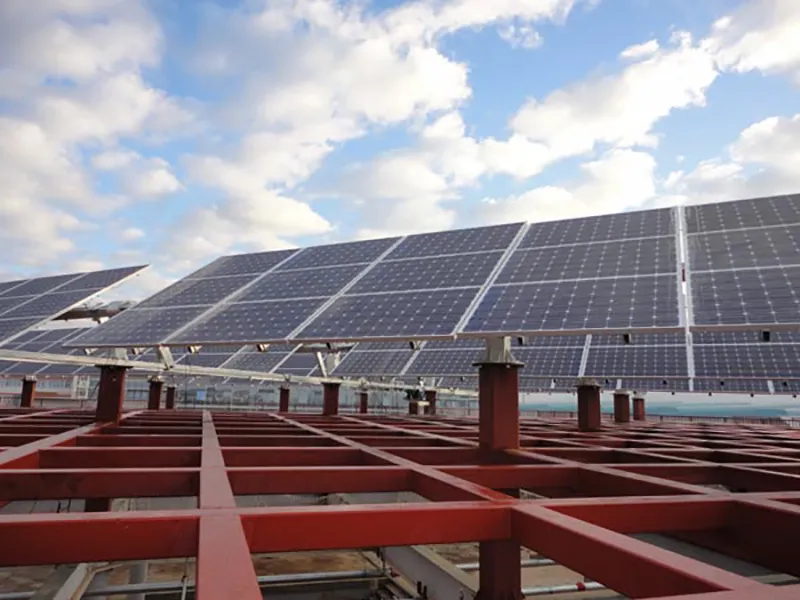

Case 3

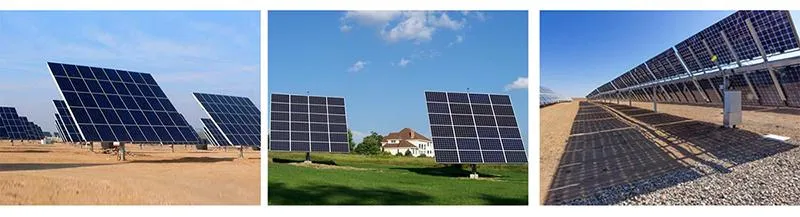

Case Summary

Certifications

Certifications

Frequently Asked Questions

1. How much can this tracking system increase power generation?
Compared to stationary mounts, this dual-axis solar tracking system can increase power generation by approximately 35% to 50% due to its precise automatic adjustment.
2. What is the tracking accuracy of the system?
The system utilizes an inclination sensor feedback combined with a closed-loop control system for high tracking accuracy and long-term reliability.
3. Is the system wind-resistant?
Yes, the safe working wind speed is 17 m/s, and the survival wind speed is 37 m/s. We can also customize the system to withstand wind speeds up to 60 m/s.
4. What is the daily power consumption of the tracker?
The system is highly efficient; the daily self-use power consumption is less than 0.85 kwh to 1.25 kwh depending on the configuration.
5. What size of solar panels is compatible with this bracket?
The system is designed with high versatility and is compatible with approximately 98% of the panel specifications available on the market.
6. What control algorithms are used for tracking?
It employs an astronomical algorithm combined with a position sensor closed-loop control to ensure the panels are always optimally positioned toward the sun.
