Basic Information
Type
Water Floating Bracket
Installation Site
Lake, River, Sea
Production Capacity
1000000 PCS/Month
Packaging & Delivery
Package Size
1111.00cm * 456.00cm * 2134.00cm
Product Description

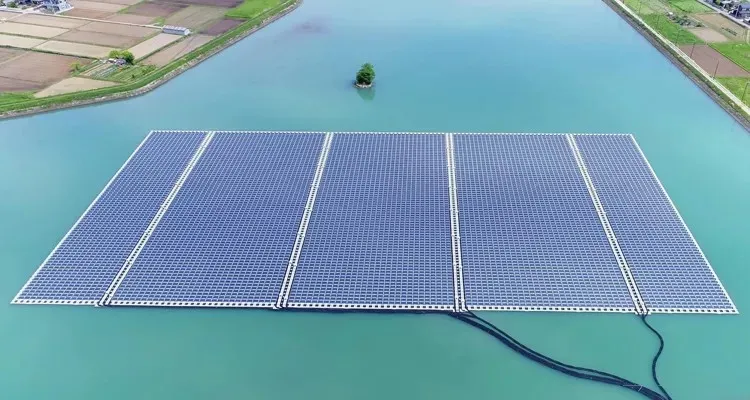

PV Panel Mounting Floating System / Solar Floating Platform / Solar Floating Pontoon
Key Features
✓Modular design, simple and convenient splice installation.
✓Increase the volume of floater to add the buoyant force.
✓Made of high density polyethylene (HDPE) for long service time.
✓Various array designs, easier to combine and customize.

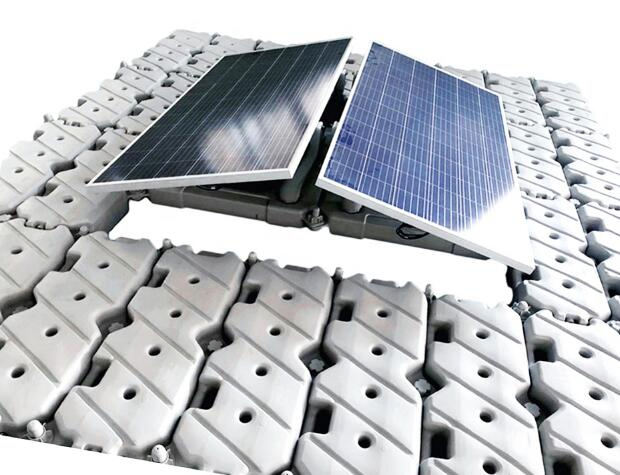

✓Symmetrical facing array maximizes power generation efficiency.
✓Compatible with various solar modules to save costs.
✓Strong weather resistance, easy operation and maintenance.
✓Specifically suitable for large size solar modules.
Specifications
| Install site | Lake, reservoir, water ponds, small idle water area |
| Tile angle | 5°, 10°, 15° |
| Max wind speed | 51m/s |
| Snow load | 1.0kn/m2 |
| Bearing weight | Module floater 70kg/m2, walkway floater 155kg/m2 |
| Module Type | Framed or frameless |
| Orientation | Landscape, double row in the same / symmetrical facing |
| Fasteners | Zinc-nickel alloy & HDPE & Q235B |
| Main material | HDPE |
| Small spare parts | AL6005-T5 (Anodized) |
| Warranty | 12 years |
Necessary Information for Quotes:
Please offer the following necessary info:
- Panel dimension (e.g., 1640*992*40mm, 275W)
- Panel quantity (pieces or total power)
- Water Area (m2), Max. & Min. water Depth (m)
- Max wind speed (m/s), Max snow thickness (mm), Max temperature (ºC)
- Water level variation period (Days) and variation range
- Max wave height (m), Max flow velocity (m/s), Annual rainfall (mm)
- Water quality types and Sediment thickness (mm)
Frequently Asked Questions
What materials are used in the floating system?
The main body of the floater is made of High-Density Polyethylene (HDPE), which ensures durability and long service life. Small spare parts are made of Anodized AL6005-T5 and fasteners use zinc-nickel alloy and Q235B.

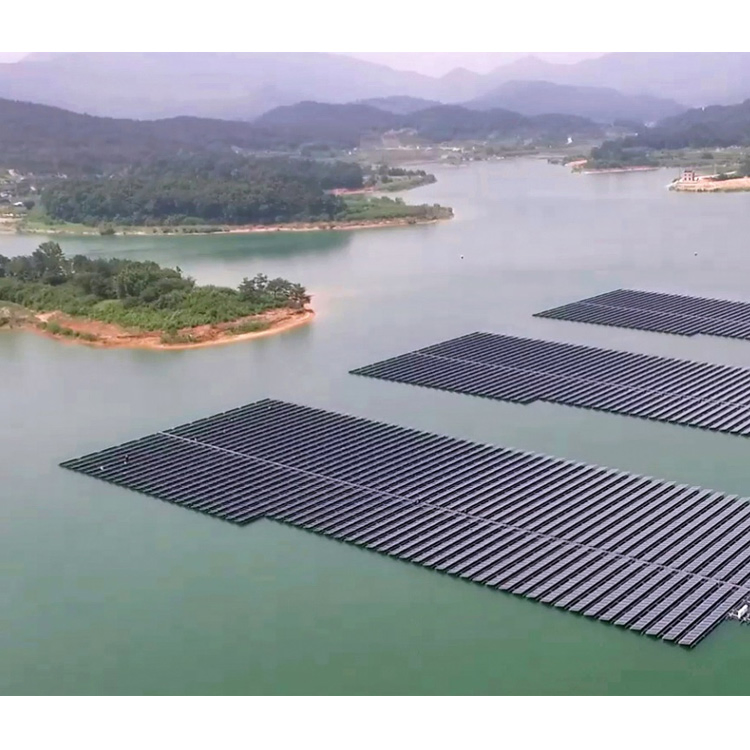

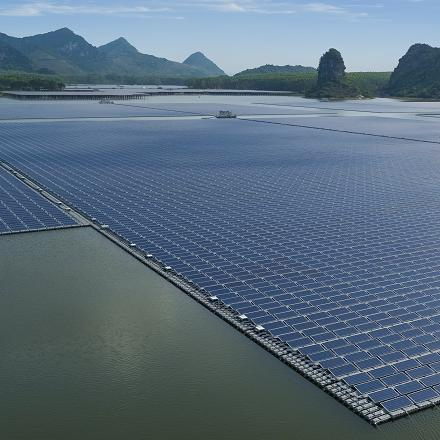

Where can this solar floating platform be installed?
It is designed for various water bodies, including lakes, reservoirs, water ponds, rivers, and small idle water areas. It is also suitable for some sea environments.
What is the maximum wind and snow load the system can handle?
The system is engineered to withstand a maximum wind speed of 51m/s and a snow load of up to 1.0kn/m2.
Is the system compatible with different types of solar panels?
Yes, it is compatible with both framed and frameless solar modules and is specifically optimized for large-size modules.
What is the warranty period for this floating system?
We provide a 12-year warranty for the PV panel mounting floating system, ensuring long-term reliability for your solar project.
How does the modular design benefit the installation?
The modular design allows for a simple and convenient splice installation process, making it easier to combine different array designs and scale the project as needed.
