Product Description

Basic Product Information

Model

Flat Roof Mount System II

Certification

ISO, CE

Application

Commercial

Material

Aluminum Alloy AL6005-T5

Type

Roof Bracket

Max Wind Speed

<60m / S

Max Snow Load

<1.4 Kn / M2

Fixed Angle

5° ~ 60°

Product Description

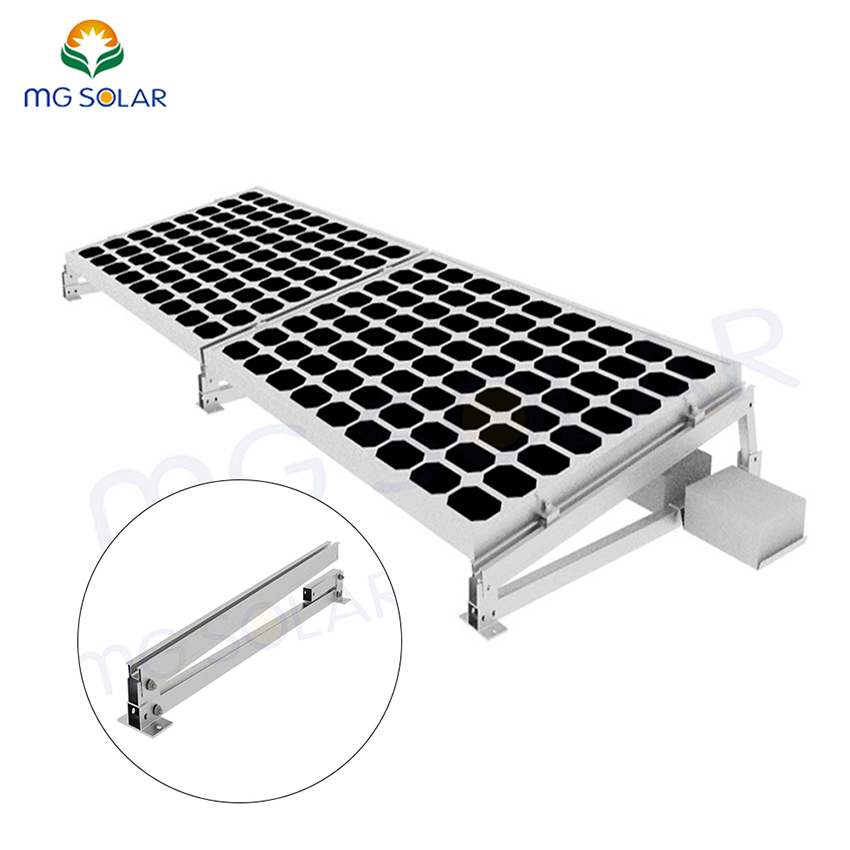

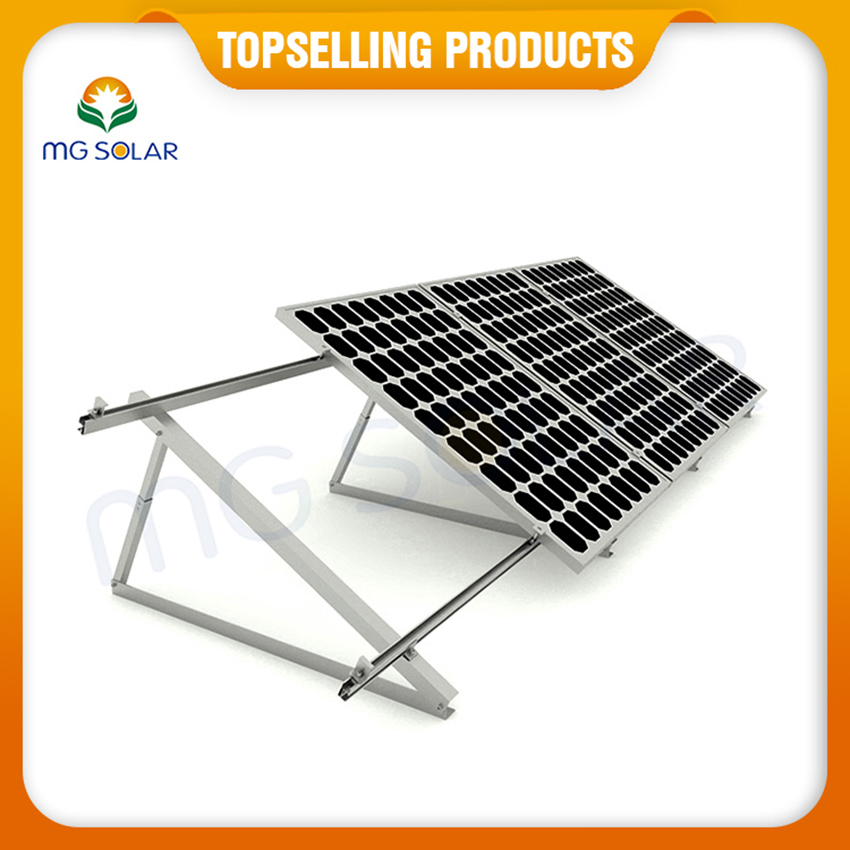

Flat Roof Mount System II is suitable for flat roofs and tilted roofs. Fixed angle and adjustable angle options are both available to enhance applicability. This system is designed to ensure no damage to the roof's waterproof structure. Components are primarily manufactured from high-grade aluminum alloy AL6005-T5 and stainless steel 304, providing superior corrosion resistance. Factory pre-assembled components ensure a quick and easy installation, saving significant time and labor costs.

Key Features

Simple and cost-effective installation
High-quality Aluminum 6005-T5 Material
Integrated waterproof rubber gasket
Compatible with multiple flat roof types

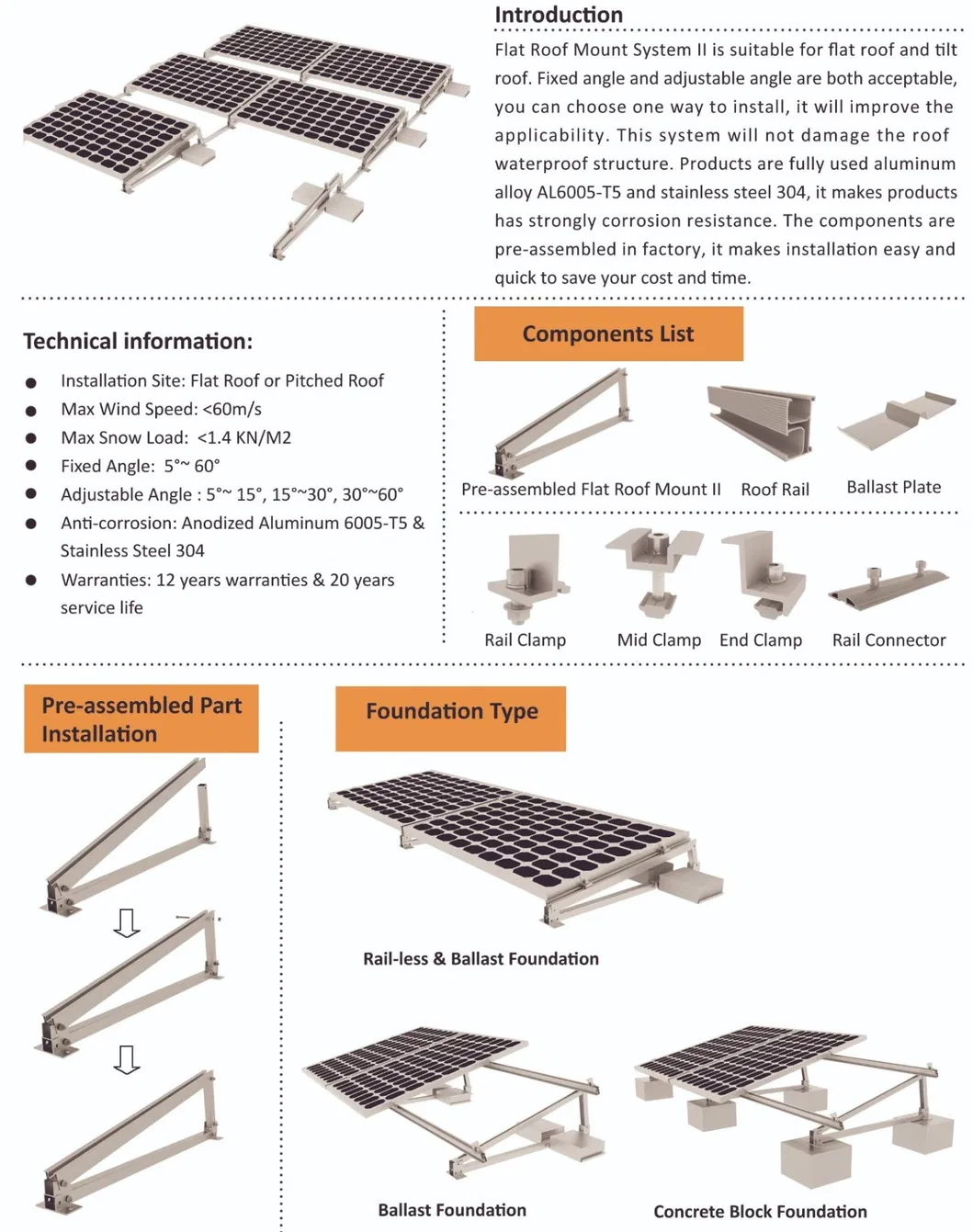

Technical Specifications

Parameter	Specifications
Material	Aluminum 6005-T5 & Stainless Steel 304
Max Wind Speed	<60 m/s
Max Snow Load	<1.4 kn/m2
Installation Site	Flat Roof or Pitched Roof
Adjustable Angle	5°~15°, 15°~30°, 30°~60°
Anti-corrosion	Anodized Aluminum
Service Life	20 Years

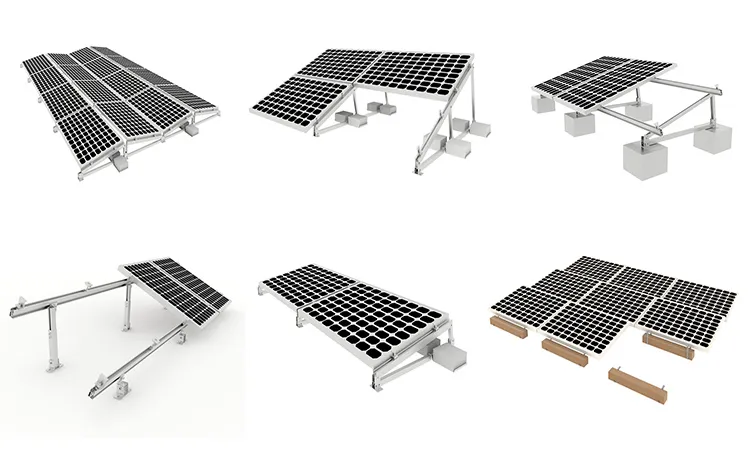

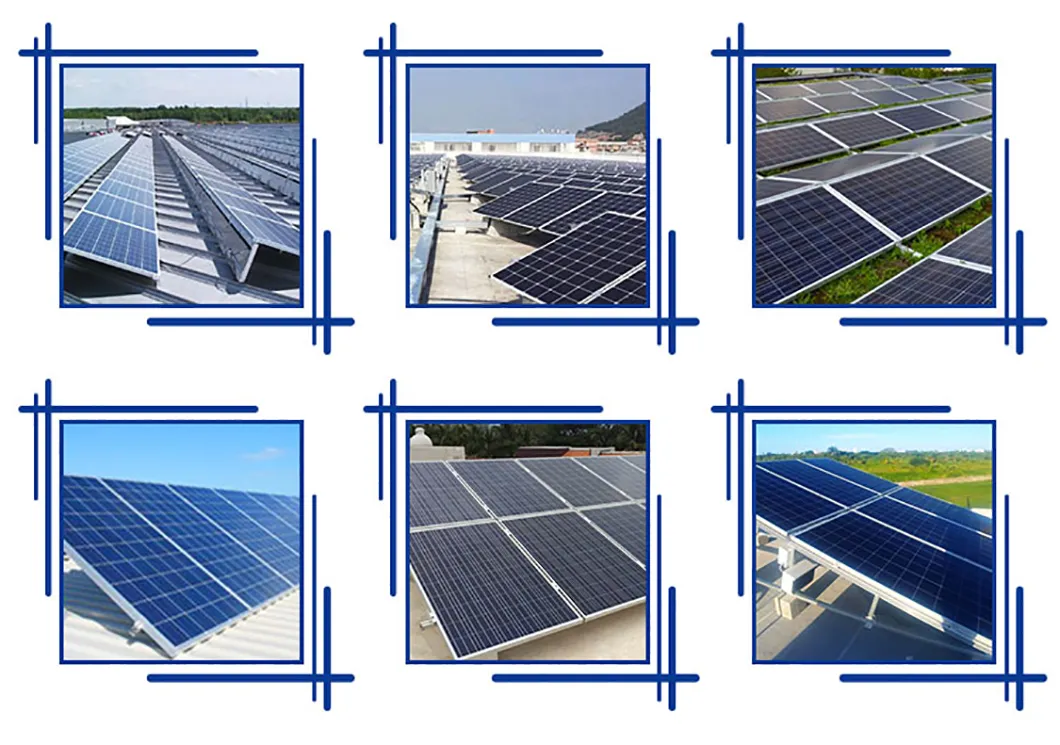

Project Reference & Series

Manufacturing Excellence

Specializing in the development and manufacturing of solar panel racking solutions, we utilize advanced technology to provide ground and roof mounting systems for residential, industrial, and commercial projects.

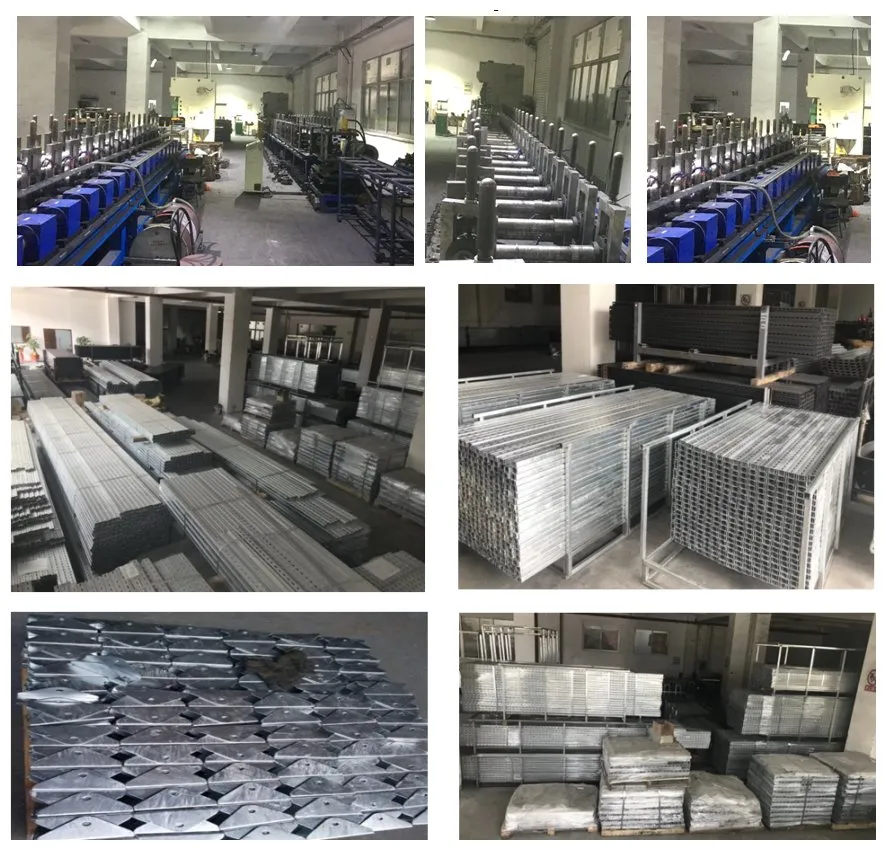

Advanced Production Equipment:

12 sets of punching machines
3 sets of aluminum alloy cutting machines
2 sets of automatic drilling and tapping machines
3 roll forming production lines
Monthly production capacity: Up to 30 MW

Frequently Asked Questions

Can I request a free sample?

Yes. If you require standard samples from our showroom, they are free of charge (courier freight not included). For customized samples, a sample charge will apply.

What is the typical lead time for orders?

Samples generally take 1-2 days. Mass production typically requires 7 to 15 days depending on the order quantity.

Is there a Minimum Order Quantity (MOQ)?

We do not have an MOQ for our current standard products; even 1pc for checking is available. However, MOQ requirements apply for ODM and OEM products.

How are the goods shipped and how long does it take?

Sample packages are usually shipped via DHL or FedEx (3-5 days). Large orders are shipped by sea, taking between 7 to 30 days depending on the destination.

What is your after-sales service policy?

We respond to all customer complaints immediately (within 3 hours of receipt) and are committed to helping customers solve any technical or installation problems they encounter.

What information is needed for an exact mounting solution?

To provide a precise solution, please share: 1. Solar panel dimensions (L x W x T); 2. Required tilt angle; 3. Array layout (total panels and configuration); 4. Local max wind speed and snow load.
