| Model NO. | Balcony Easy solar kit |

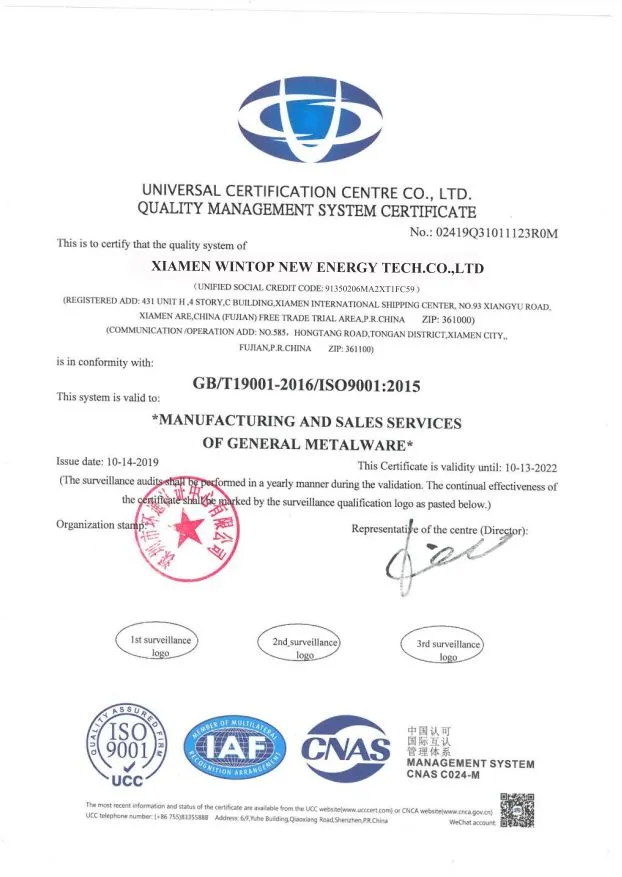

| Certification | ISO, CE |
| Application | Industrial |
| Material | Aluminum Alloy |
| Type | Ground Bracket |
| Install Site | Open Terrain |
| Module Orientation | Landscape, Portrait |
| Anti-Corrosive | Anodized |
| Max Wind Speed | 60m/S |
| Max Snow Load | 1.6kN/M² |
| Duration | More Than 20 Years |
| HS Code | 7610900000 |
| Production Capacity | 1gw/Years |

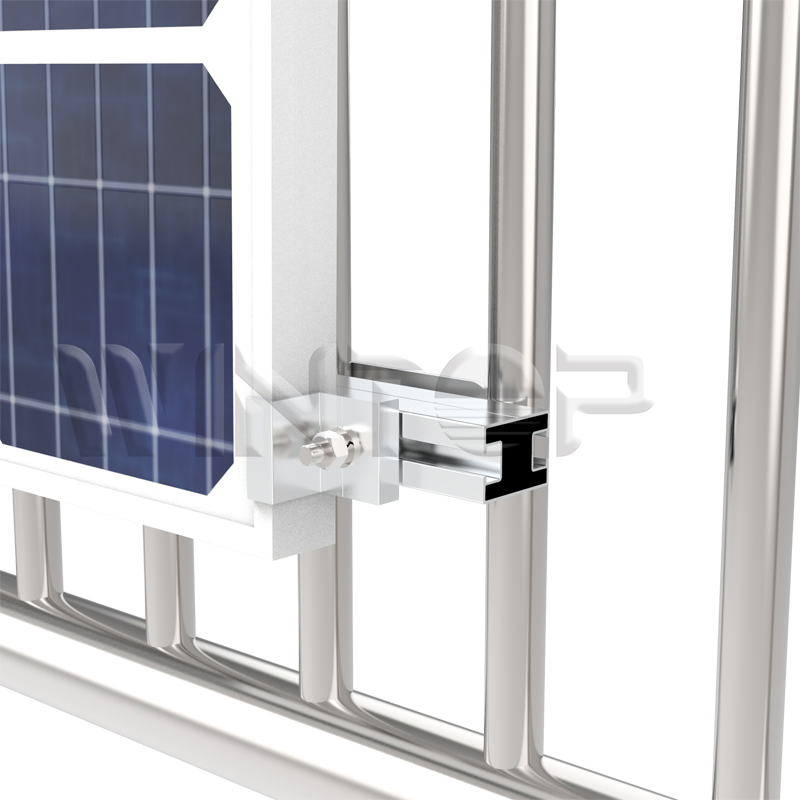

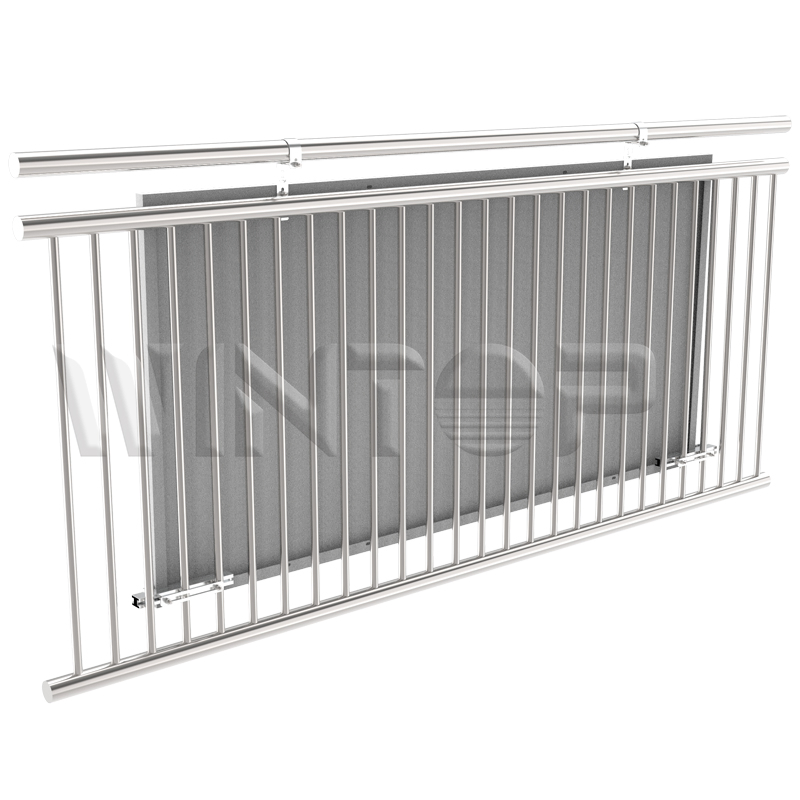

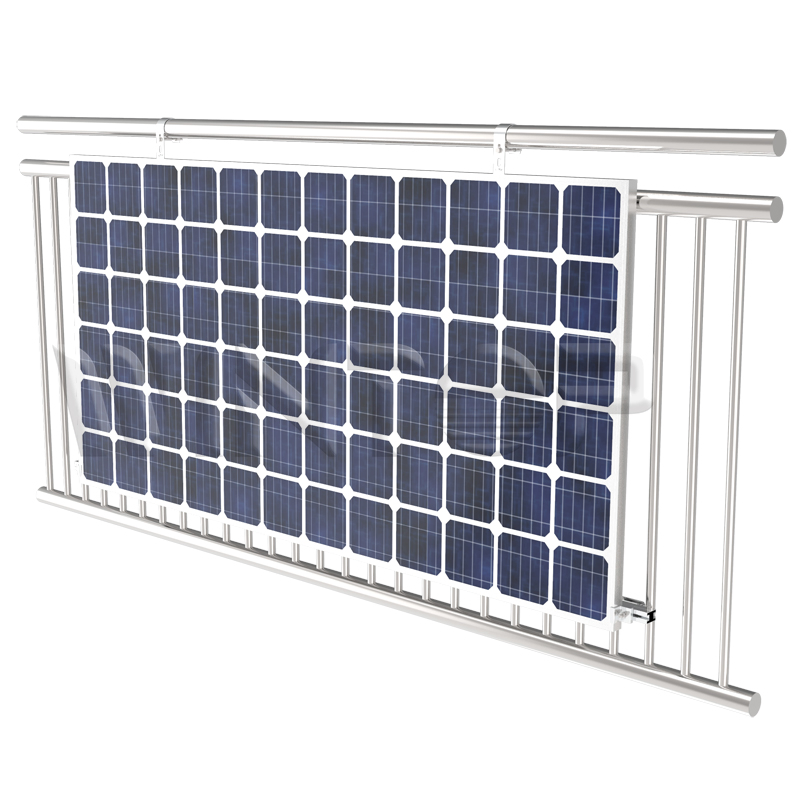

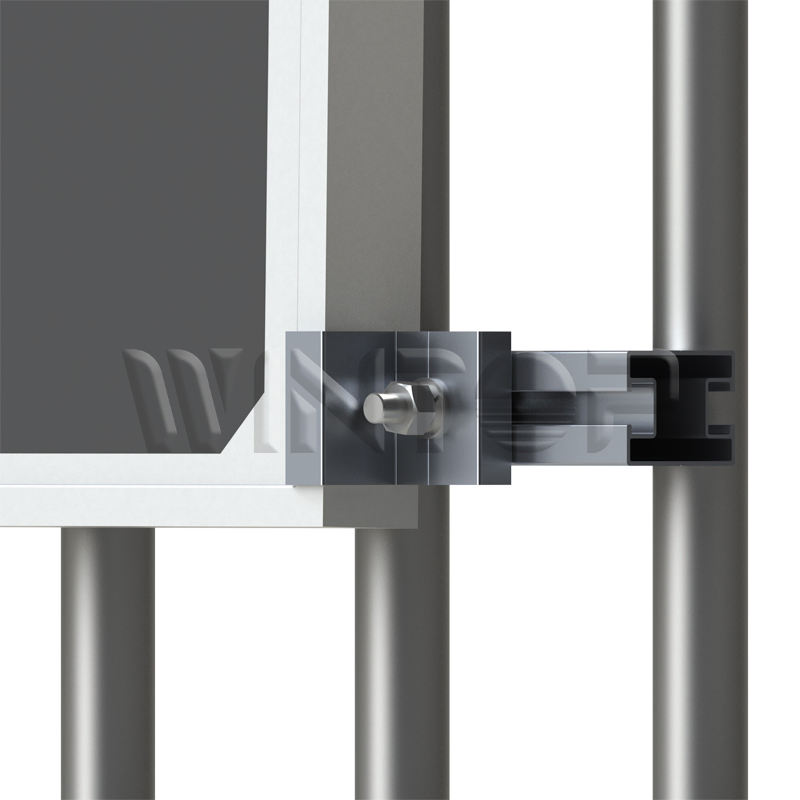

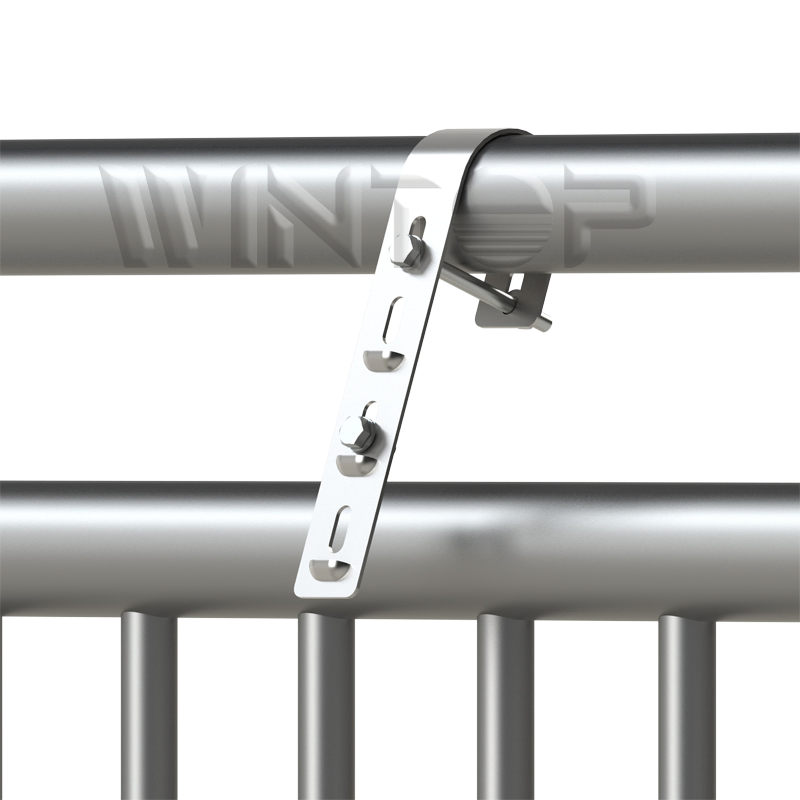

Solar Energy Easy Bracket Kit With Railing Hook
This easy solar panel mount is specially developed to integrate well with solar kits. It is a highly pre-assembled mounting structure for achieving home energy independence. Simply use it combined with solar panels and micro inverters, designed for multiple scenarios. The tilt angle can be adjusted according to different installation environments and requirements to obtain the maximum power generation.

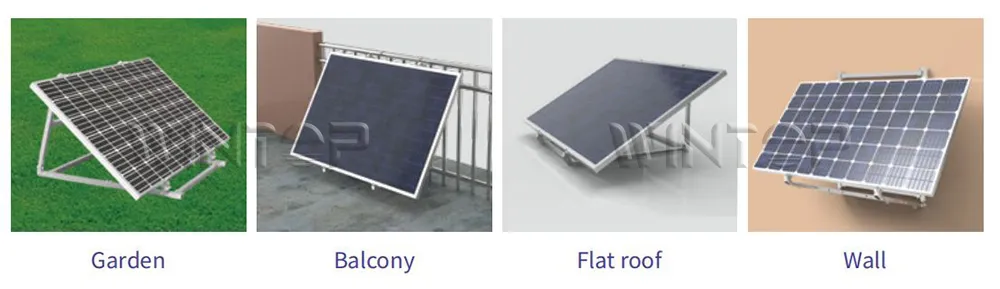

| Installation location | balcony, railing, walls and etc |
| Adjustable Angle Range | 15°-30° |
| Material | AL6005-T5, SUS304, EPDM |
| Gross weight per bracket (kg) | ≈8 |
| Applicable module type | Framed |
| Length of solar module (mm) | ≤2200 |
| Width of solar module (mm) | 751≤A≤1313mm |
| Thickness of solar module (mm) | 30-50 |
| Module orientation | Landscape |
| Warranty | 10 years |
Established in 2016, our high-tech enterprise integrates R&D, production, and marketing of Solar Mounting Systems for residential, commercial, and utility-scale customers worldwide.
