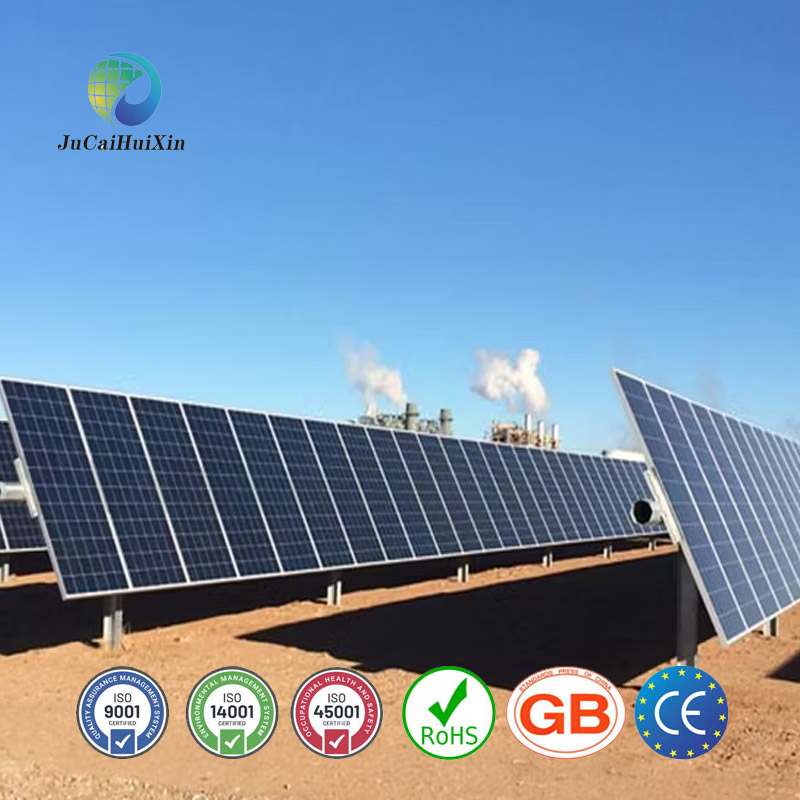

RoHS Certified Solar Rack Manufacturer for Ground Installation

Overview & Basic Info

Model NO.1 Axis Solar Bracket

CertificationGB, ISO, CE, RoHS

ApplicationCommercial

MaterialSteel

TypeGround Bracket

System Type2~5rows Linked/Independent

MotorDC24V Gear Motor

Max Wind Speed (Op)24m/S

Rust ProtectionHot-Dipped Galvanized Steel

Operating Temp-40°C ~ +75°C

Tracking Accuracy≤2° (Configurable)

ProtectionIP66 / Wind / Snow / Rain

Production Capacity100000 Tons / Year

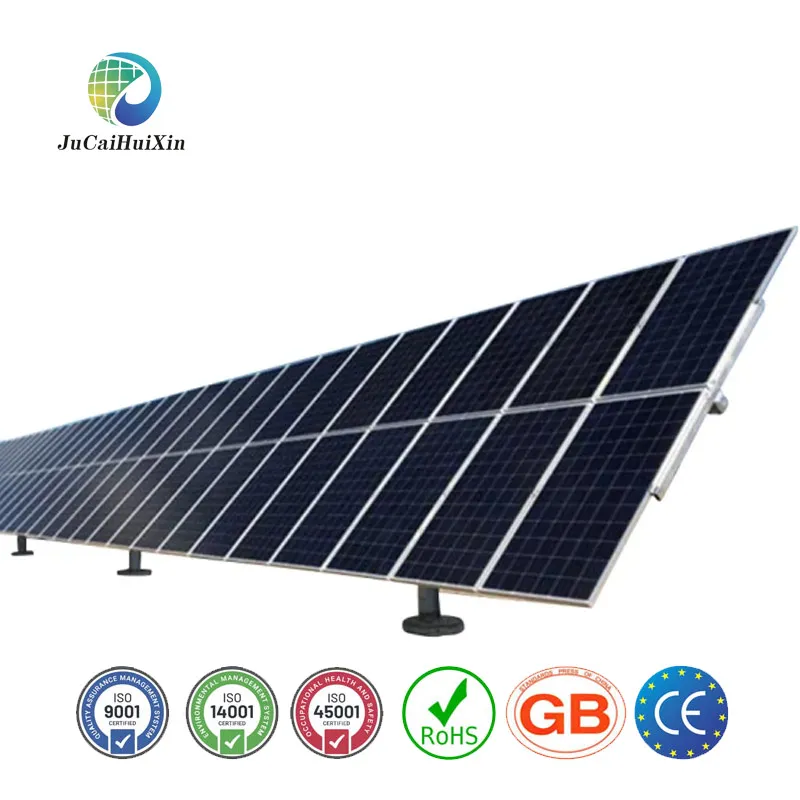

Product Description

System type	Independent Drive
No. of panel	2-10 Pieces(≤23 sq. m.)
Power consumption	5.0 kWh/set/year
Max. wind speed in running	24m/s
Tracking accuracy	0.1°-2°(Adjustable)
Control model	Time + GPS Control

Company Capability

Advantages & Logistics

Frequently Asked Questions

What is the waterproof rating, and can it withstand extreme weather?

This system is rated IP67, ensuring protection against heavy rain, dust, and temporary submersion. Its corrosion-resistant frame withstands temperatures from -30°C to 60°C.

How does the solar-powered GPS tracking work during cloudy days?

The built-in 20W solar panel charges a 12V/24Ah lithium battery, providing 7-10 days of backup power. GPS maintains positioning with ±2-meter accuracy even in low light.

How much energy efficiency does the single-axis tracking improve?

The horizontal single-axis design increases energy output by 25-35% annually compared to fixed mounts, and can exceed 40% in high-latitude regions during summer.

What maintenance is required for the tracking system?

Minimal maintenance: Lubricate bearings annually, clean panels every 3-6 months, and check bolt tightness after storms. The system also self-tests via an IoT-enabled controller.

Can it integrate with existing solar arrays or inverters?

Yes. The bracket supports panels up to 600W and works with most string inverters. It uses Modbus RTU protocol for integration into SCADA systems.

What is the expected lifespan of the structural components?

The hot-dipped galvanized steel structure is engineered for a service life of over 25 years, providing exceptional resistance to corrosion and structural wear.
